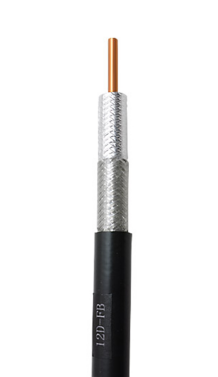

NO.7101414e 12D-FB CCA TC PE

Construction Parameters:

Inner Conductor

4.40mm Copper Clad Aluminum

Dielectric

12.40mm Foamed PE

Shield

Nom.12.40mm Bonded AL-Foil

Outer Conductor

Nom. 13.20mm Tinned Copper Braid

Jacket

15.60mm PE Black

Jacket Thickness

Application

Electrical Characteristics:

Capacitance

82 pF/m

Impedance

50 Ω

Velocity of Propagation

81%

Shielding Effectiveness

≥ 80 dB

Return Loss

≥ 20 dB

RoHS

Yes

Mechanical and Environmental Properties:

Cable Bend Radius

 78mm

Operating Temp Range

-40 ℃ to +85℃

Cable Diamensions

15.60mm

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation (dB/100m)

150

3.40

280

4.70

350

5.30

400

5.70

800

8.50

900

9.10

1200

10.80

1500

12.30

1900

14.20

2000

14.60

2500

16.60

Order Informations:

Marking

HELLOSIGNAL 12D-FB 50 Ohm COAXIAL CABLE ×××M

Package

Inquired Length on Roll, Wooden Spool, Pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
