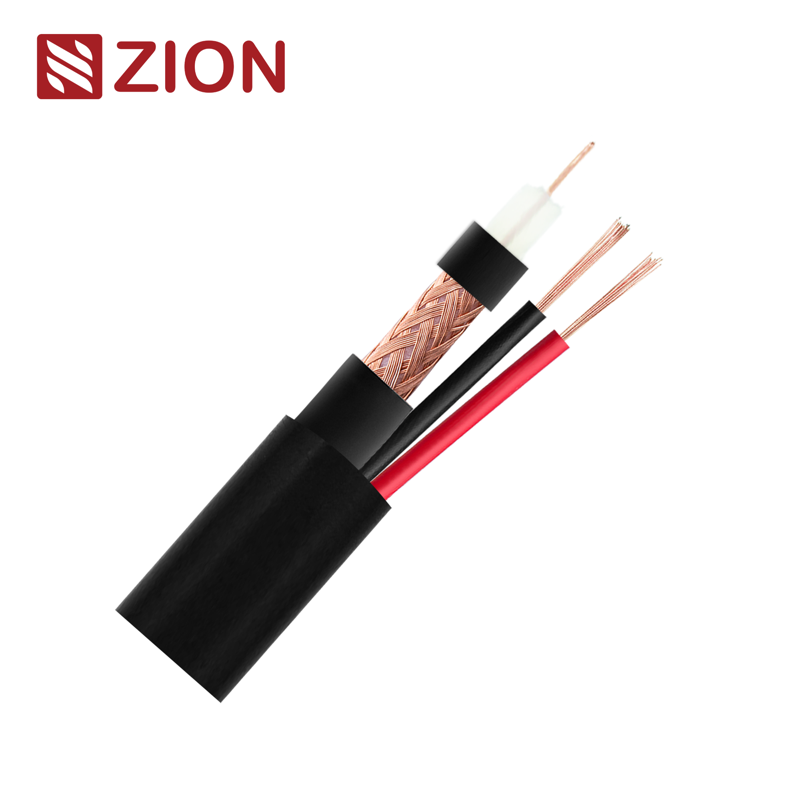

NO.7102038 RG59 B/U 2C 0.75 Common Outdoor

Construction Parameters:

Inner Conductor

0.58mm Bare Copper

Dielectric

0.144"/3.66±0.05mm Solid Polyethylene

Shield

0.12mm CCA-Braid(95%)

Jacket

0.236"/6.00±0.1mm  PVC/PE/LSZH

Power Wire Conductor

2x(17*0.25mmBC )

Power wire Diameter of insulation

2.0mmPVC(Red,Black)

Jacket

9.6mmUV-PE

Application

For Use in Longer CCTV Run Lengths

Electrical Characteristics:

Inner Conductor                         Resistance

The Max. at 20℃ shall be

<  65.26 Ohms/KM

Capacitance

67±2 pF/m

Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.66

Sparker Test (VAC)

3

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃/-40 ℃ to 70℃

Cable diamensions

9.6mm

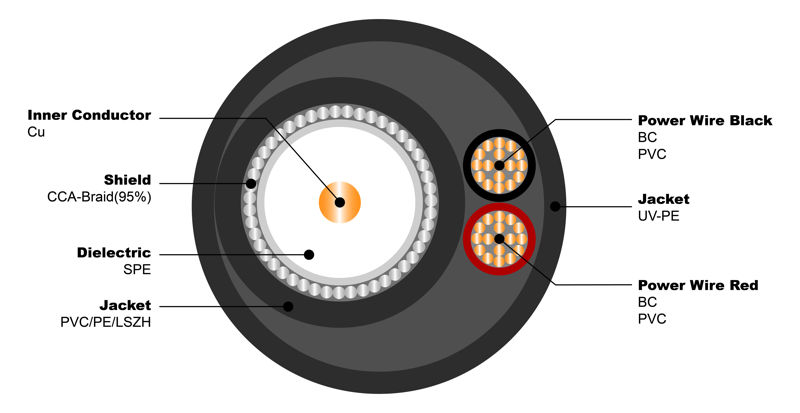

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

1

0.64

1.96

10

1.18

3.61

50

2.58

7.87

100

3.66

11.15

200

5.27

16.07

400

7.53

22.97

700

10.44

31.83

900

11.93

36.40

1000

12.89

39.30

Order Informations:

Marking

HELLOSIGNAL RG59 B/U + 2C0.75 Common Outdoor
CCTV COAXIAL CABLE 7102038 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^® OR OEM
