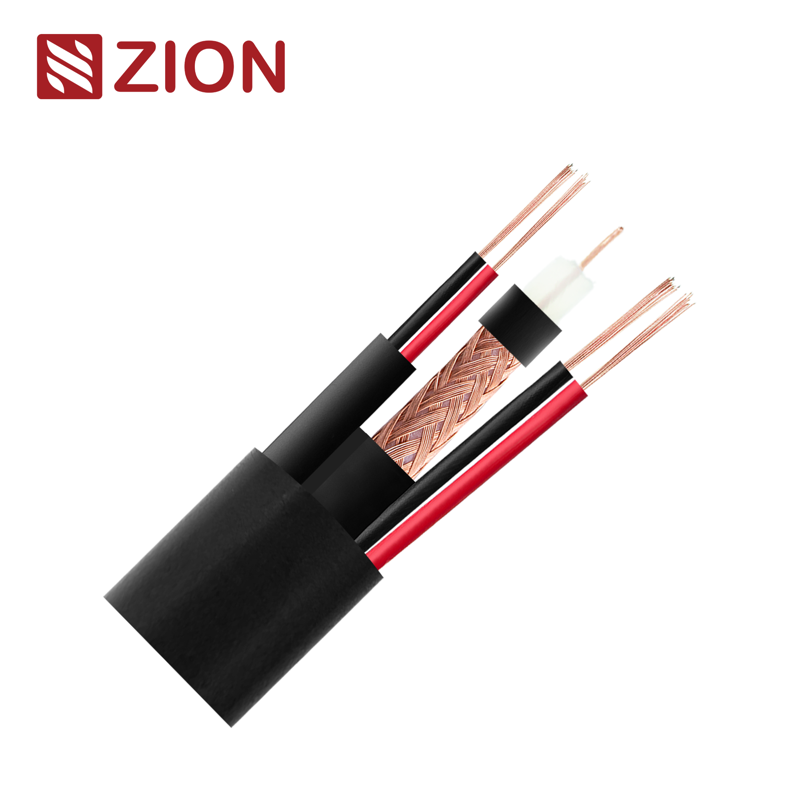

NO.7102154 PTZ 80+2×1.00+2×0.22

Construction Parameters:

  Coaxial Cable

Inner Conductor

0.80mm Cu

Dielectric

3.5mm Foamed Polyethylene

Shield 1

AL/Pet/Al

Shield 2

TC 70%

Jacket

5.0mm PVC

  Power Cores

Inner Conductor

2x(32×0.19mmCU )

Insulation

2.2mmPVC（Red,Black)

  Low Capaciltance Computer Cable

Inner Conductor

2×(7×0.19mmCU)

Insulation

1.0mmPVC（Red,Black)

Jacket

3.1mm PVC

  Overall Outer Sheath

11mmPVC Common

Application

For Use in Longer CCTV Run Lengths

Electrical Characteristics:

Inner Conductor                   Resistance

The Max. at 20℃ shall be <   64.9  Ω/km

Capacitance

52 ±3 pF/m       15.8 ±1 pF/ft

Impedance

75 ± 3 Ω

Shielding DCR

14.9Ω/km

Velocity of Propagation

0.82

Sparker Test (VAC)

3

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

11.0mm

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

1

1.80

5

2.80

10

3.90

50

7.90

100

11.10

200

15.10

400

21.80

700

29.80

900

34.40

1000

36.00

Order Informations:

Marking

HELLOSIGNAL PTZ 80+2×0.75+2×0.22
CCTV COAXIAL CABLE 7102153 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^® OR OEM
