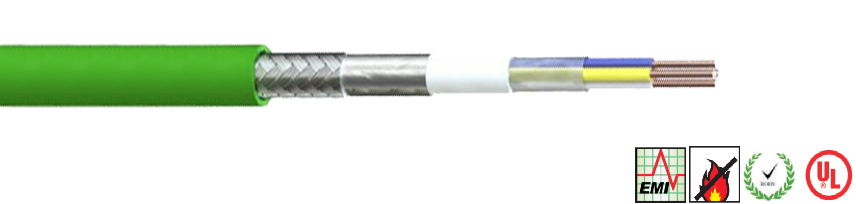

PROFINET Copper Cable type B

Application

The cable is specially designed for PROFINET and is widely used in industrial Ethernet applications such as machines, equipment, instruments and control panels.
The electrical properties are in accordance with CAT5e standard.
PROFINET copper cable type B suitable for fixed applications or occasional movement.

Features

Flame resistance according to IEC60332-1
Have good performance of resistant to external EMI
LSZH (Halogen free，low smoke) & PVC for cable's Jacket
Excellent transmission performance
The cables have excellent tensile and compressive properties.

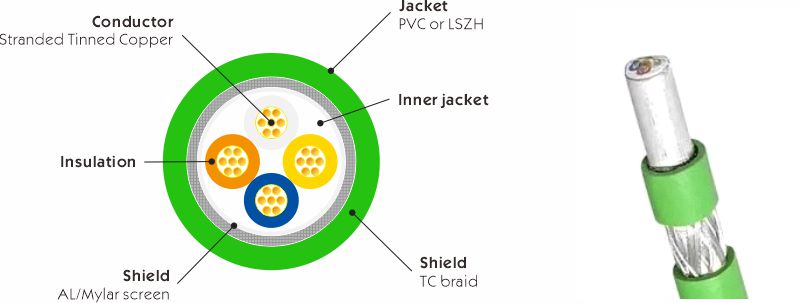

Cable Construction

Conductor:

Stranded Tinned Copper

Insulation:

PE

Insulation color:

White,Yellow,Blue, Orange

Inner jacket:

PVC or LSZH

Shield:

AL/Mylar screen and TC braid

Outer jacket:

PVC or LSZH

Color:

Green  RAL 6018

Cross Section

Technical parameters

Temperature range

-40℃ to 80℃

Characteristic impedance

100±15 Ohm

Min bending radius

Fixed installation：4x cable diameter
Occasional movement: 8x cable diameter

Loop conductor DC resistance at 20℃

≤60 ohm/km

Test voltage

2000V/min (AC)

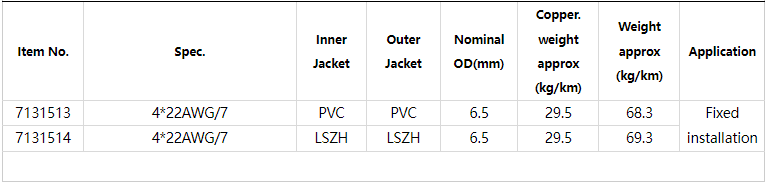

Product List:

Item No.

Spec.

Inner Jacket

Outer Jacket

Nominal
OD(mm)

Copper.
weight approx (kg/km)

Weight approx
(kg/km)

Application

7131513

4*22AWG/7

PVC

PVC

6.5

29.5

68.3

Fixed installation

7131514

4*22AWG/7

LSZH

LSZH

6.5

29.5

69.3
