Single Suspension for OPGW
hellosignal
Optical Fiber cable Hardware
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
Availability: | |
---|---|
Specification
Single Suspension for OPGW | |||||||||||||||||||||||||
Suspension Set for OPGW used primarily for straight-sided drop tower, or less than 15 º line tower connection. Clamp screw from the inside and outside the two pre-twisted wire, hanging head and supporting the composition of connecting fittings. Clamp grip strength is greater than the tensile strength of fiber optic cable rated 10% -20%, for the transfer axial loads, and distributed radial compressive stress, better protection of fiber optic cable, to avoid the phenomenon of bending stresses and stress concentration. | |||||||||||||||||||||||||

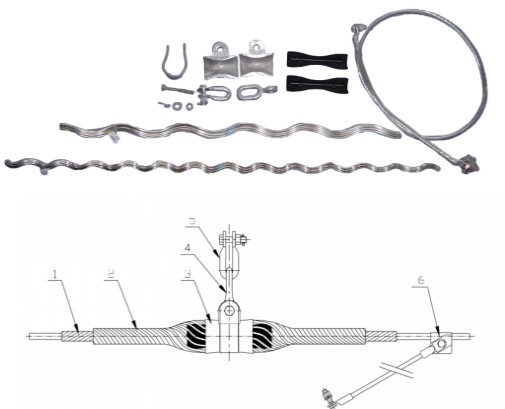

Pictures and illustrations: | |||||||||||||||||||||||||
| |||||||||||||||||||||||||
1. Structural Reinforcing Rods 2.Dead-end Component 3.AGS Clamp | |||||||||||||||||||||||||
Model Specification: | |||||||||||||||||||||||||

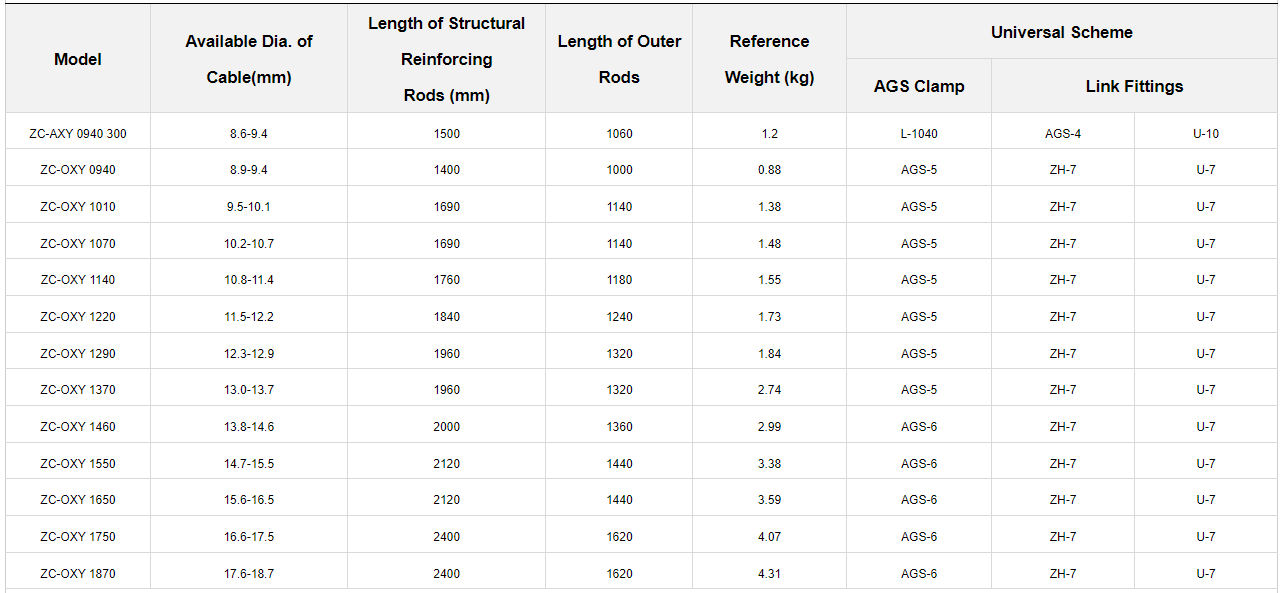

Model | Available Dia. of | Length of Structural Reinforcing | Length of Outer Rods | Reference | Universal Scheme | ||||||||||||||||||||
AGS Clamp | Link Fittings | ||||||||||||||||||||||||
ZC-AXY 0940 300 | 8.6-9.4 | 1500 | 1060 | 1.2 | L-1040 | AGS-4 | U-10 | ||||||||||||||||||
ZC-OXY 0940 | 8.9-9.4 | 1400 | 1000 | 0.88 | AGS-5 | ZH-7 | U-7 | ||||||||||||||||||
ZC-OXY 1010 | 9.5-10.1 | 1690 | 1140 | 1.38 | AGS-5 | ZH-7 | U-7 | ||||||||||||||||||
ZC-OXY 1070 | 10.2-10.7 | 1690 | 1140 | 1.48 | AGS-5 | ZH-7 | U-7 | ||||||||||||||||||
ZC-OXY 1140 | 10.8-11.4 | 1760 | 1180 | 1.55 | AGS-5 | ZH-7 | U-7 | ||||||||||||||||||
ZC-OXY 1220 | 11.5-12.2 | 1840 | 1240 | 1.73 | AGS-5 | ZH-7 | U-7 | ||||||||||||||||||
ZC-OXY 1290 | 12.3-12.9 | 1960 | 1320 | 1.84 | AGS-5 | ZH-7 | U-7 | ||||||||||||||||||
ZC-OXY 1370 | 13.0-13.7 | 1960 | 1320 | 2.74 | AGS-5 | ZH-7 | U-7 | ||||||||||||||||||
ZC-OXY 1460 | 13.8-14.6 | 2000 | 1360 | 2.99 | AGS-6 | ZH-7 | U-7 | ||||||||||||||||||
ZC-OXY 1550 | 14.7-15.5 | 2120 | 1440 | 3.38 | AGS-6 | ZH-7 | U-7 | ||||||||||||||||||
ZC-OXY 1650 | 15.6-16.5 | 2120 | 1440 | 3.59 | AGS-6 | ZH-7 | U-7 | ||||||||||||||||||
ZC-OXY 1750 | 16.6-17.5 | 2400 | 1620 | 4.07 | AGS-6 | ZH-7 | U-7 | ||||||||||||||||||
ZC-OXY 1870 | 17.6-18.7 | 2400 | 1620 | 4.31 | AGS-6 | ZH-7 | U-7 | ||||||||||||||||||
Note: 1. The maximum single side suspension angle of single suspension clamp is 15 ° - 18 °. |
