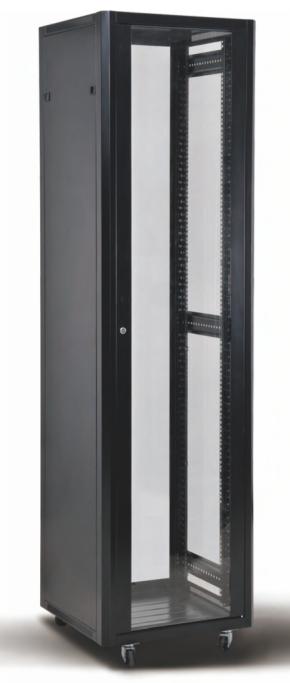

TE Network Rack Cabinet

  Technical Data

    Materials:

  · SPCC Cold Rolled Steel;

 · 19" rails: 2.0mm;

 · others:1.2mm.

   Colour:

  · ZCTE.■■■■.■■.0■■: RAL7035

  · ZCTE.■■■■.■■.1■■: RAL9004

   Loading Capacity:

  · Static loading: 400KG.

  COMPLIANCE （Reference Standard）

 · Comply with ANSI/EIA RS-310-D

 · IEC60297-2

 · DIN41494;PART1; DIN41494;PART7.

   Feature

· Exquisite design with precise dimension and craftsmanship;

· Within the cavity in front and back the door be style;

· Adjustable feet and heavy duty castors are available

  simultaneously;

· Modular quick disassembling;

· Optional installation of plinth to enable cabinets fixation, under-base cable entry/ventilation;

· Eficient and reliable cabinet connection by baying kit;

· Removable side panel&rear door to Quick open steel door ease maintain.

·19”Profile with scale, movable forward and backward.


·45 degree corner framework.

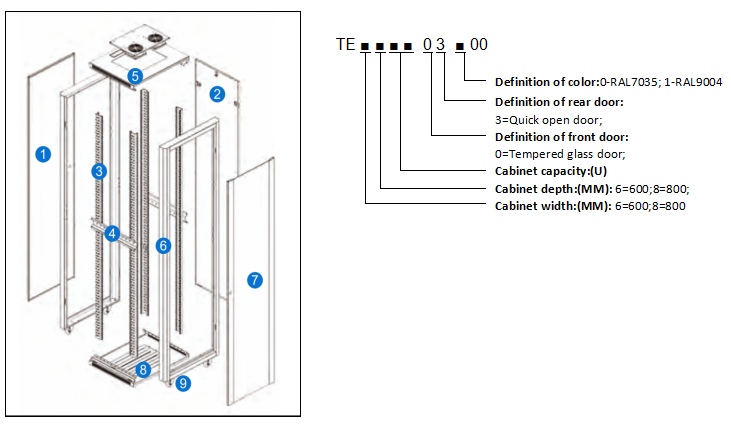

   Definition Of Cord

Main Part

S/N

Specification

Qty

Material

Surface Finish

Remark

1

Rear door

1

SPCC t1.0

Powder coated

·····

2

Side panel

2

SPCC t1.0

Powder coated

·····

3

19"rails

4

SPCC t2.0

Powder coated

·····

4

Mounting angle

2

SPCC t1.0

Powder coated

·····

5

Top cover

1

SPCC t1.0

Powder coated

·····

6

Frame

2

SPCC t1.0

Powder coated

·····

7

Front door

1

·····

·····

Tempered glass door

8

Bottom

1

SPCC t1.0

Powder coated

·····

9

2" heavy duty castor

4

·····

·····

·····

Hardware kits with cabinet:

A

M12 adjustable feet

4

Steel

Zinc-plated

Height:100MM

B

M6 screw & nuts

20

Steel

Zinc-plated

40pcs for over 27U

C

Trox tooling

1

Steel

Zinc-plated

·····

  Specification:

Part Number.

 Width
(mm)

Depth(D)
(mm)

Capacity
(U)

Height(H)
(mm)

ZCTE.6621.TESC

600

600

21

1020

ZCTE.6627.TESC

27

1290

ZCTE.6636.TESC

36

1690

ZCTE.6642.TESC

42

1955

ZCTE.6647.TESC

47

2180

ZCTE.8842.TESC

800

800

42

1955

ZCTE.8847.TESC

47

2180
