Tangent Suspension and Single Preformed Rods Suspension for ADSS(Span＜200m)

Tangent is mainly used with the tangent clamp connections within a 100m span, single
pre-twisted wire Suspension is mainly used within a 200m span connection.

Pictures and illustrations:

Span＜200m

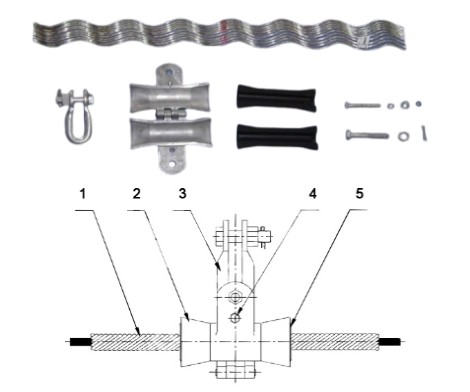

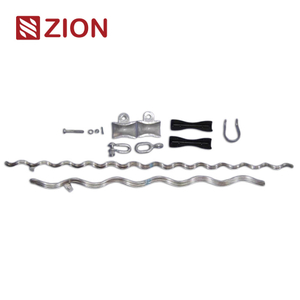

1. Preformed Rods    2.AGS Clamp    3.U-Clevis    4.Bolt    5.Latex Pad

Model Specification (Span ＜ 200m):

Name

Model

Available Dia. of
Cable(mm)

Length of Reinforcing Rods(mm)

Universal Scheme

Available
Dia. of Span
(m)

AGS Clamp /Weight(kg)

U-Clevis

Thimble

Tangent Clamp
for ADSS

ZC-AXD 0950

9.0-9.5

800

XGT-25

1.00

U-4

＜200

ZC-AXD 1050

9.6-10.5

800

XGT-25

1.00

U-4

ZC-AXD 1160

10.6-11.6

800

XGT-25

1.00

U-4

ZC-AXD 1280

11.7-12.8

860

XGT-25

1.00

U-4

ZC-AXD 1410

12.9-14.1

900

XGT-25

1.00

U-4

ZC-AXD 1560

14.2-15.6

1000

XGT-25

1.00

U-4

ZC-AXD 1700

15.7-17.0

1000

XGT-25

1.00

U-4
