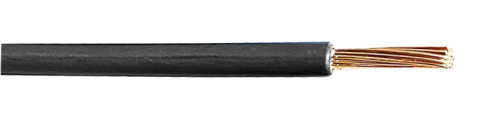

AEXHF Automotive Cable

AEXHF Automotive Cable

Product Description:

Conductor

Tin coated annealed stranded copper

Insulation

Cross-linked Polyethylene (XLPE)

Standard Compliance

ES SPEC

Technical Parameters

Operating temperature:–40 °C to +150°C
Rated voltaage up to 60V

Application:

This XLPE insulated single-core cable is used in low voltage circuits in automobiles(vehicles and motorcycles),
Superior heat resistance with irradiated PE superior more than thermal resistance AEX type.

Zion's Hot Types of  AEXHF Automotive cable

Conductor

Insulation

Cable

Nominal
cross-
section

No. and
Dia. of Wires

Diameter max.

Electrical
resistance at 20°C max.

Thickness Wallnom.

Overall Diameter Min.

Overall
Diameter max.

Weight
approx.

mm²

No./mm

mm

 mΩ/m

mm

mm

mm

Kg/km

1x0.30

12/0.18

0.70

61.10

0.50

1.70

1.80

5.70

1x0.50

20/0.18

1.00

36.70

0.50

1.90

2.00

8.00

1x0.85

34/0.18

1.20

21.60

0.50

2.20

2.30

12.00

1x1.25

50/0.18

1.50

14.60

0.60

2.70

2.80

17.50

1x2.00

79/0.18

1.90

8.68

0.60

3.10

3.20

24.90

1x3.00

119/0.18

2.30

6.15

0.70

3.70

3.80

37.00

1x5.00

207/0.18

3.00

3.94

0.80

4.60

4.80

61.50

1x8.00

315/0.18

3.70

2.32

0.80

5.30

5.50

88.50

1x10.0

399/0.18

4.10

1.76

0.90

5.90

6.10

113.00

1x20.0

247/0.32

6.30

0.92

1.10

8.50

8.80

216.00

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
