Product Description

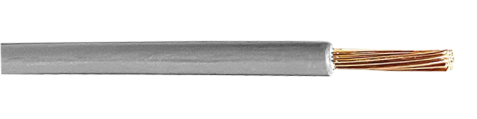

AVSSX/AESSX Automotive Cable | ||||||||
Product Description: | ||||||||

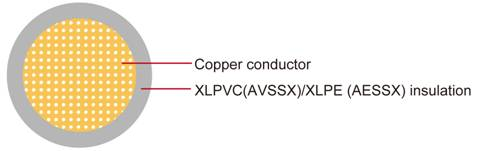

Conductor | Cu-ETP1 bare or tinned according to JIS C3102, | |||||||
Insulation | XLPVC (AVSSX) | |||||||
Standard Compliance | JASO D 608-92 | |||||||
Technical Parameters | Operating temperature:–40 °C to +105 °C (AVSSX) | |||||||
Application: | ||||||||
Automotive cables XLPVC (XLPE) insulated single-core cable is used in electric system for automobile. | ||||||||

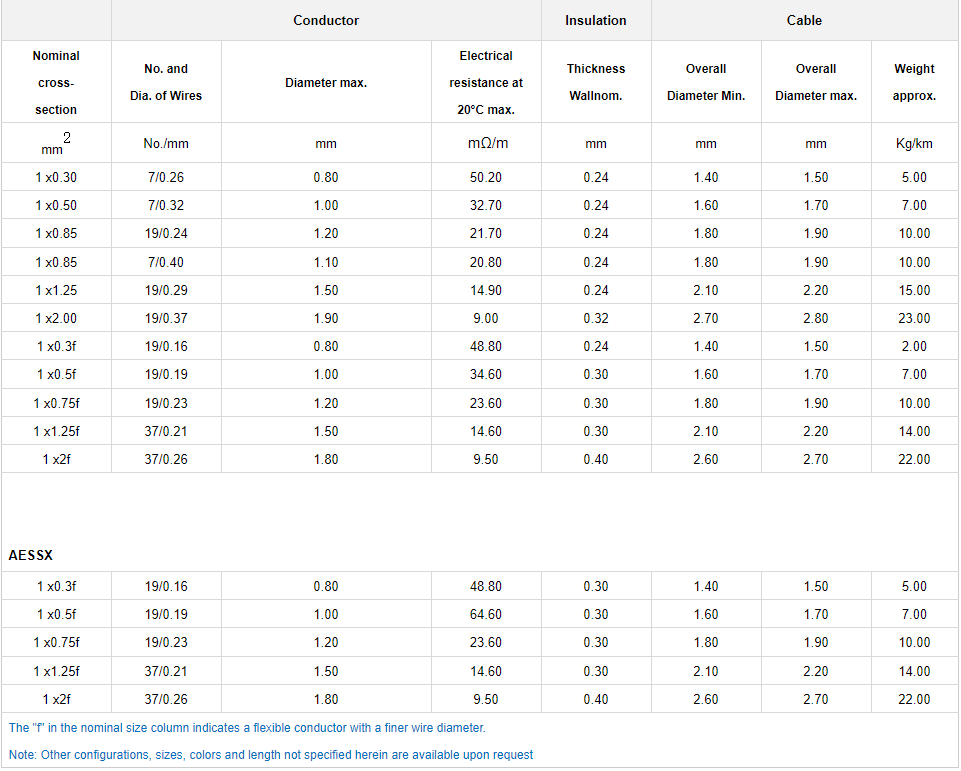

Zion's Hot Types of AVSSX/AESSX Automotive cable | ||||||||
AVSSX | ||||||||
Conductor | Insulation | Cable | ||||||
Nominal | No. and | Diameter max. | Electrical | Thickness Wallnom. | Overall Diameter Min. | Overall | Weight | |
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km | |
1 x0.30 | 7/0.26 | 0.80 | 50.20 | 0.24 | 1.40 | 1.50 | 5.00 | |
1 x0.50 | 7/0.32 | 1.00 | 32.70 | 0.24 | 1.60 | 1.70 | 7.00 | |
1 x0.85 | 19/0.24 | 1.20 | 21.70 | 0.24 | 1.80 | 1.90 | 10.00 | |
1 x0.85 | 7/0.40 | 1.10 | 20.80 | 0.24 | 1.80 | 1.90 | 10.00 | |
1 x1.25 | 19/0.29 | 1.50 | 14.90 | 0.24 | 2.10 | 2.20 | 15.00 | |
1 x2.00 | 19/0.37 | 1.90 | 9.00 | 0.32 | 2.70 | 2.80 | 23.00 | |
1 x0.3f | 19/0.16 | 0.80 | 48.80 | 0.24 | 1.40 | 1.50 | 2.00 | |
1 x0.5f | 19/0.19 | 1.00 | 34.60 | 0.30 | 1.60 | 1.70 | 7.00 | |
1 x0.75f | 19/0.23 | 1.20 | 23.60 | 0.30 | 1.80 | 1.90 | 10.00 | |
1 x1.25f | 37/0.21 | 1.50 | 14.60 | 0.30 | 2.10 | 2.20 | 14.00 | |
1 x2f | 37/0.26 | 1.80 | 9.50 | 0.40 | 2.60 | 2.70 | 22.00 | |
AESSX | ||||||||
1 x0.3f | 19/0.16 | 0.80 | 48.80 | 0.30 | 1.40 | 1.50 | 5.00 | |
1 x0.5f | 19/0.19 | 1.00 | 64.60 | 0.30 | 1.60 | 1.70 | 7.00 | |
1 x0.75f | 19/0.23 | 1.20 | 23.60 | 0.30 | 1.80 | 1.90 | 10.00 | |
1 x1.25f | 37/0.21 | 1.50 | 14.60 | 0.30 | 2.10 | 2.20 | 14.00 | |
1 x2f | 37/0.26 | 1.80 | 9.50 | 0.40 | 2.60 | 2.70 | 22.00 | |
The "f" in the nominal size column indicates a flexible conductor with a finer wire diameter. |
