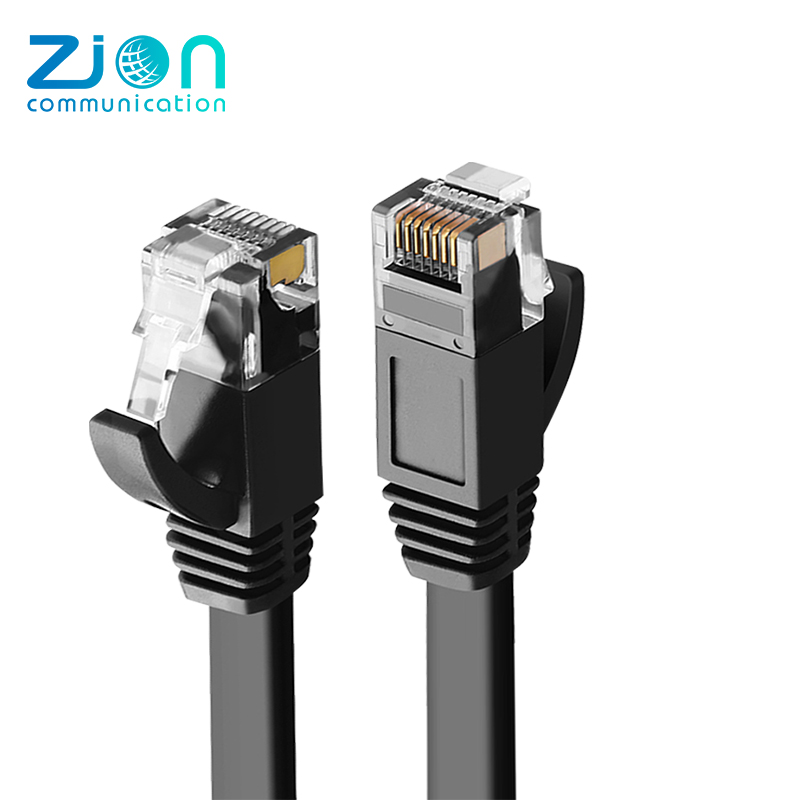

FLAT CAT.6 UTP RJ45 Patch Cord

Application:

Category 6 cabling systems are playing a major role in data centers and
mission-critical environments upgrading to 10GBASE-T.

ZION Communication CAT6 UTP Patch Cords conform to ANSI/TIA/EIA-568.2-D, ISO/IEC 11801, IEEE, and CENELEC EN50173 for Category 6. The patch cords are 100% tested per Cat.6 Channel up to 250 MHz. Designed for high-speed protocols such as IEEE 802.3:10Base-T, 100Base-T, 1000Base-T, 10GBase-T,  HDBase-T A & B and ATM, CATV, computer, hubs, switches,
routers, DSL/cable modems, and patch panels in a Gigabit data center.

Specification:

Ethernet Patch Cable

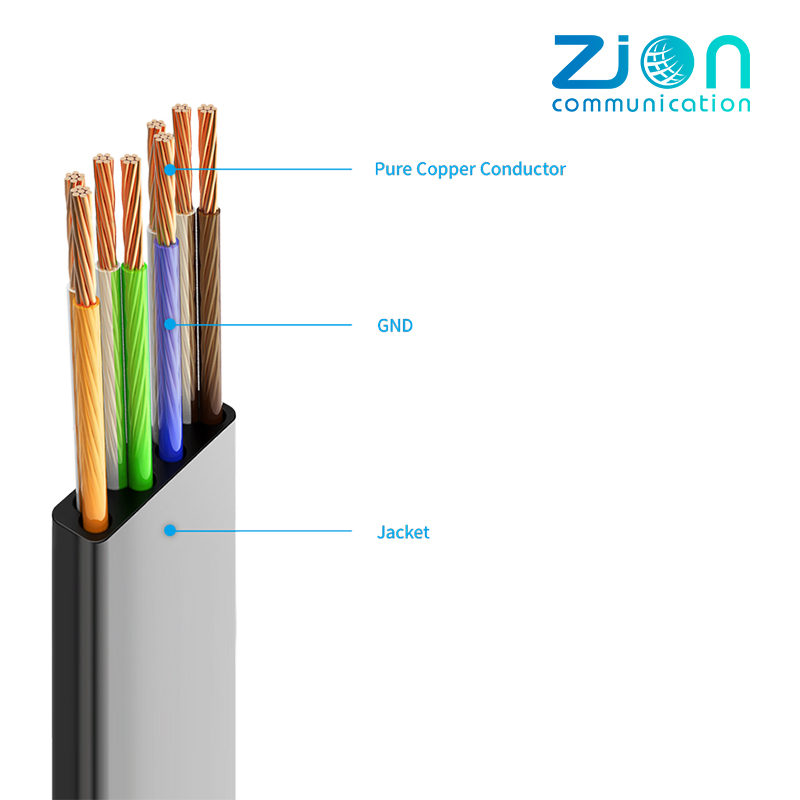

Conductor:

Stranded bare copper

Pairs:

4 Pairs

Insulation:

HDPE

Insulation Color
Per
TIA/EIA 568-B

Orange, White/White-Orange

Blue, White/White-Blue

Green, White/White-Green

Brown, White/White-Brown

Out Jacket:

LSZH OR PVC

Frequency Range

1 - 250 Mhz

Impedance

100Ω

Max.Resistance
Unbalance

0.02

Current Rating

1.5A

Voltage

72 VDC Max.

Operating Temp.

Min. -20 °C, Max. +60 °C

Connector

Description

Material

Type

Plug

Polycarbonate

RJ45

Boot

LSZH OR PVC

Snagless

Front Connection

Phosphor Bronze with 50u inch Gold over Nickel Plating

Blades

Durability

750 Mating Cycles min.

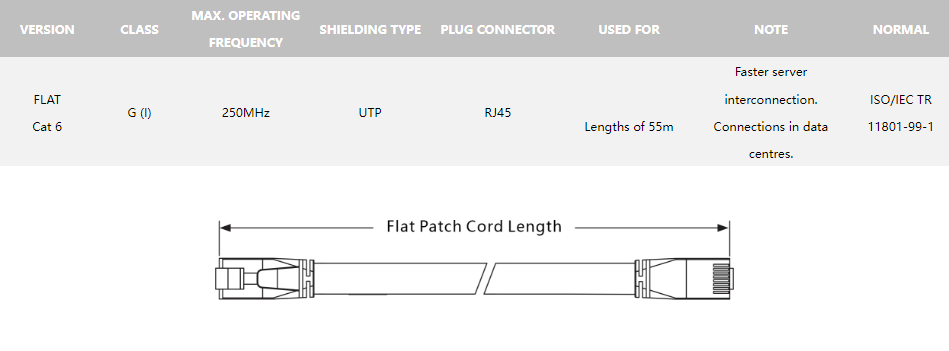

Characteristics:

VERSION

CLASS

MAX. OPERATING FREQUENCY

SHIELDING TYPE

PLUG CONNECTOR

USED FOR

NOTE

NORMAL

FLAT
Cat 6

G (I)

250MHz

UTP

RJ45

Lengths of 55m

Faster server interconnection.
Connections in data centres.

ISO/IEC TR
11801-99-1

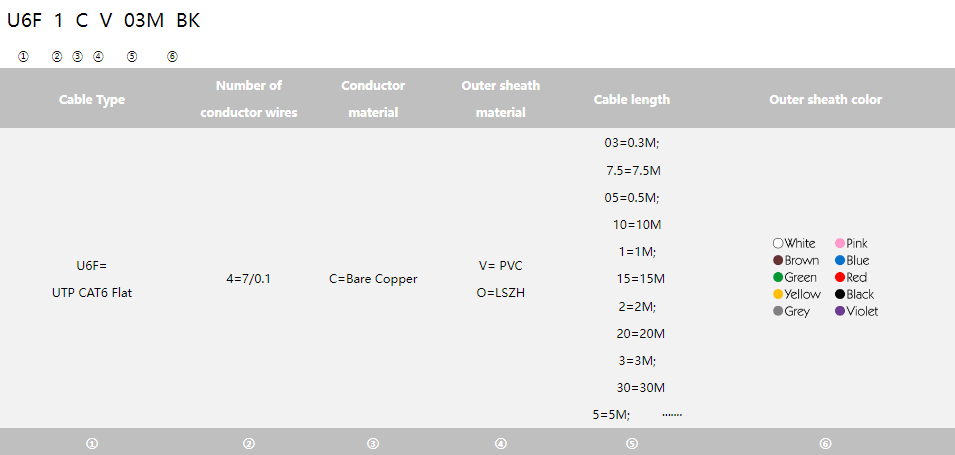

Product Code:

U6F  1  C  V  03M  BK
  ①       ②    ③   ④       ⑤         ⑥

Cable Type

Number of
conductor wires

Conductor
material

Outer sheath
material

Cable length

Outer sheath color

U6F=
UTP CAT6 Flat

4=7/0.1

C=Bare Copper

V= PVC
O=LSZH

03=0.3M;  7.5=7.5M
05=0.5M;    10=10M
   1=1M;      15=15M
   2=2M;      20=20M
   3=3M;      30=30M
   5=5M;         ·······

①

②

③

④

⑤

⑥

Ordering Information

FLAT CAT 6 UTP 30AWG Copper Conductor RJ45 Patch Cord

Conductor: 7/0.1mm Copper;  Cable OD:6.0×1.6mm; Max Length based on 10Gbps: up to 50meter.

Zion Code

Description

U6F4CO05MBK

FLAT CAT 6 UTP 30AWG Copper  RJ45 Patch Cord,LSZH,Black, 0.5m

U6F4CO1MBK

FLAT CAT 6 UTP 30AWG Copper   RJ45 Patch Cord,LSZH,Black, 1m

U6F4CO2MBK

FLAT CAT 6 UTP 30AWG Copper   RJ45 Patch Cord,LSZH,Black, 2m

U6F4CO3MBK

FLAT CAT 6 UTP 30AWG Copper   RJ45 Patch Cord,LSZH,Black, 3m

U6F4CO5MBK

FLAT CAT 6 UTP 30AWG Copper   RJ45 Patch Cord,LSZH,Black, 5m

U6F4CO7MBK

FLAT CAT 6 UTP 30AWG Copper   RJ45 Patch Cord,LSZH,Black, 7m

U6F4CO10MBK

FLAT CAT 6 UTP 30AWG Copper   RJ45 Patch Cord,LSZH,Black, 10m

U6F4CO15MBK

FLAT CAT 6 UTP 30AWG Copper   RJ45 Patch Cord,LSZH,Black, 15m

......

......

U6F4CO50MBK

FLAT CAT 6 UTP 30AWG Copper   RJ45 Patch Cord,LSZH,Black, 50m

OEM/ODM service for you

ZION Communication has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team.

• Customized Logo on Plug & Boot

• Printing on Cable

• Label/PE bag/Carton design

• Different Color & Different Lengths Available

• Different Molding/Strain Relief

Packing
