Product Description

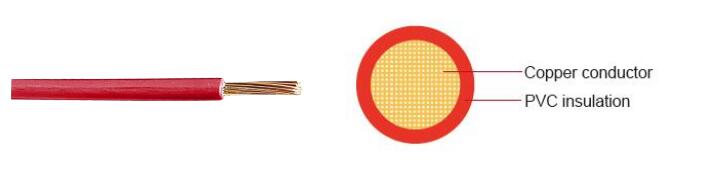

FLRYW-B Automotive Cable | ||||||||||||||
Product Description: | ||||||||||||||
Conductor | Cu-ETP1 bare according to DIN EN 13602 | |||||||||||||
Insulation | PVC | |||||||||||||
Standard Compliance | ISO 6722 Class C | |||||||||||||
Special properties | Heat resistant cable, Flame retardant, Extra flexibility | |||||||||||||
Technical Parameters | Operating temperature:–50°C to +125°C | |||||||||||||
Application: | ||||||||||||||
This PVC insulated single-core cable is used as low-tension electric wire for automobiles | ||||||||||||||

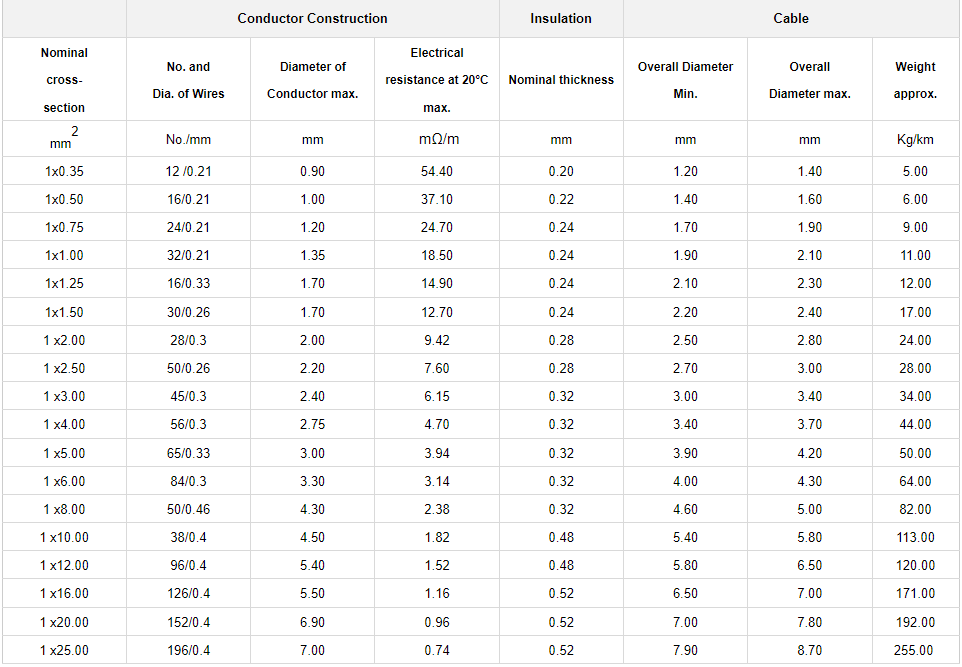

Zion's Hot Types of FLRYW-B Automotive cable | ||||||||||||||
Conductor Construction | Insulation | Cable | ||||||||||||
Nominal | No. and | Diameter of Conductor max. | Electrical | Nominal thickness | Overall Diameter Min. | Overall | Weight | |||||||
mm2 | No./mm | mm | mΩ/m | mm | mm | mm | Kg/km | |||||||
1x0.35 | 12 /0.21 | 0.90 | 54.40 | 0.20 | 1.20 | 1.40 | 5.00 | |||||||
1x0.50 | 16/0.21 | 1.00 | 37.10 | 0.22 | 1.40 | 1.60 | 6.00 | |||||||
1x0.75 | 24/0.21 | 1.20 | 24.70 | 0.24 | 1.70 | 1.90 | 9.00 | |||||||
1x1.00 | 32/0.21 | 1.35 | 18.50 | 0.24 | 1.90 | 2.10 | 11.00 | |||||||
1x1.25 | 16/0.33 | 1.70 | 14.90 | 0.24 | 2.10 | 2.30 | 12.00 | |||||||
1x1.50 | 30/0.26 | 1.70 | 12.70 | 0.24 | 2.20 | 2.40 | 17.00 | |||||||
1 x2.00 | 28/0.3 | 2.00 | 9.42 | 0.28 | 2.50 | 2.80 | 24.00 | |||||||
1 x2.50 | 50/0.26 | 2.20 | 7.60 | 0.28 | 2.70 | 3.00 | 28.00 | |||||||
1 x3.00 | 45/0.3 | 2.40 | 6.15 | 0.32 | 3.00 | 3.40 | 34.00 | |||||||
1 x4.00 | 56/0.3 | 2.75 | 4.70 | 0.32 | 3.40 | 3.70 | 44.00 | |||||||
1 x5.00 | 65/0.33 | 3.00 | 3.94 | 0.32 | 3.90 | 4.20 | 50.00 | |||||||
1 x6.00 | 84/0.3 | 3.30 | 3.14 | 0.32 | 4.00 | 4.30 | 64.00 | |||||||
1 x8.00 | 50/0.46 | 4.30 | 2.38 | 0.32 | 4.60 | 5.00 | 82.00 | |||||||
1 x10.00 | 38/0.4 | 4.50 | 1.82 | 0.48 | 5.40 | 5.80 | 113.00 | |||||||
1 x12.00 | 96/0.4 | 5.40 | 1.52 | 0.48 | 5.80 | 6.50 | 120.00 | |||||||
1 x16.00 | 126/0.4 | 5.50 | 1.16 | 0.52 | 6.50 | 7.00 | 171.00 | |||||||
1 x20.00 | 152/0.4 | 6.90 | 0.96 | 0.52 | 7.00 | 7.80 | 192.00 | |||||||
1 x25.00 | 196/0.4 | 7.00 | 0.74 | 0.52 | 7.90 | 8.70 | 255.00 |
