H05VV-F Flexible Cable | |||||||||||||||||||||||||
Application: | Cable Standards: | ||||||||||||||||||||||||
Ordinary duty PVC cable for use in | EN 50525-2-11, EN 60228 | ||||||||||||||||||||||||
Flame Retardant according to IEC/EN 60332-1-2 | |||||||||||||||||||||||||
Product Description: | |||||||||||||||||||||||||
Conductor | Class 5 flexible copper | ||||||||||||||||||||||||
Insulation | Polyvinyl Chloride (PVC) | ||||||||||||||||||||||||
Sheath | Polyvinyl Chloride (PVC) | ||||||||||||||||||||||||
Characteristics: | |||||||||||||||||||||||||
Voltage Rating Uo/U | H05V-K: 300/500V | ||||||||||||||||||||||||
Temperature Rating | +5°C to +70°C | ||||||||||||||||||||||||
Minimum Bending Radius | Fixed: 8 x overall diameter | ||||||||||||||||||||||||

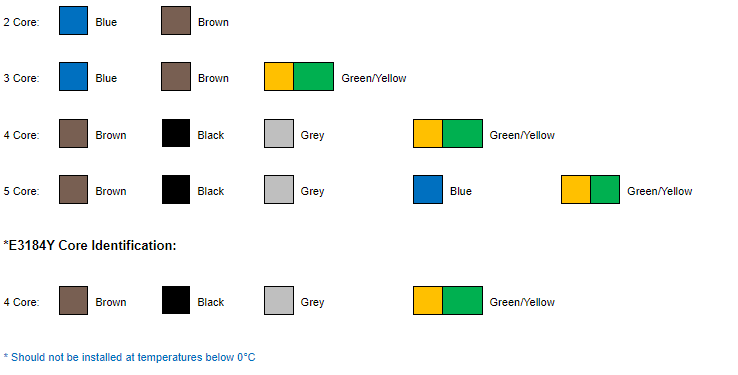

Core Identification: | |||||||||||||||||||||||||
2 Core: | Blue | Brown | |||||||||||||||||||||||
3 Core: | Blue | Brown | Green/Yellow | ||||||||||||||||||||||
4 Core: | Brown | Black | Grey | Green/Yellow | |||||||||||||||||||||
5 Core: | Brown | Black | Grey | Blue | Green/Yellow | ||||||||||||||||||||
*E3184Y Core Identification: | |||||||||||||||||||||||||
4 Core: | Brown | Black | Grey | Green/Yellow | |||||||||||||||||||||
* Should not be installed at temperatures below 0°C | |||||||||||||||||||||||||

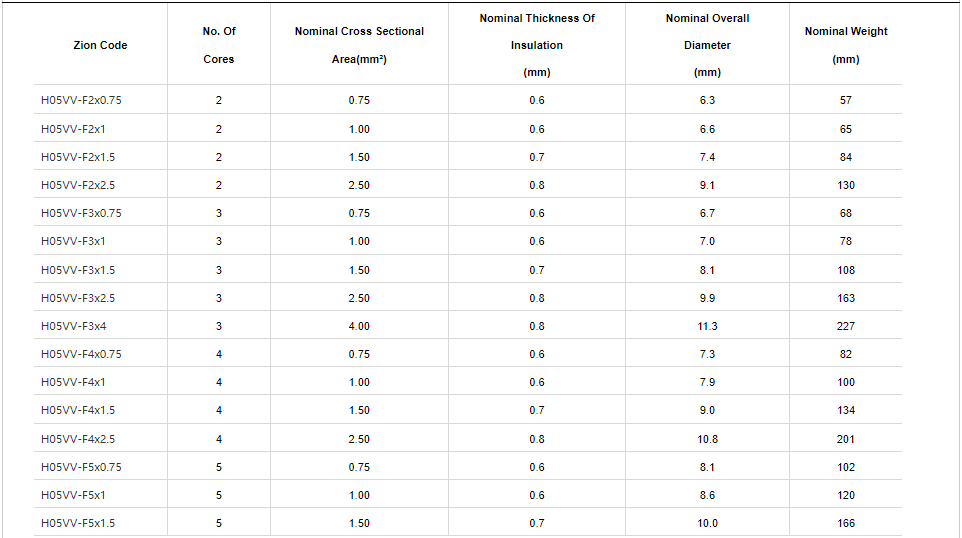

Dimensions: | |||||||||||||||||||||||||
Zion Code | No. Of | Nominal Cross Sectional Area(mm²) | Nominal Thickness Of Insulation | Nominal Overall | Nominal Weight | ||||||||||||||||||||
H05VV-F2x0.75 | 2 | 0.75 | 0.6 | 6.3 | 57 | ||||||||||||||||||||
H05VV-F2x1 | 2 | 1.00 | 0.6 | 6.6 | 65 | ||||||||||||||||||||
H05VV-F2x1.5 | 2 | 1.50 | 0.7 | 7.4 | 84 | ||||||||||||||||||||
H05VV-F2x2.5 | 2 | 2.50 | 0.8 | 9.1 | 130 | ||||||||||||||||||||
H05VV-F3x0.75 | 3 | 0.75 | 0.6 | 6.7 | 68 | ||||||||||||||||||||
H05VV-F3x1 | 3 | 1.00 | 0.6 | 7.0 | 78 | ||||||||||||||||||||
H05VV-F3x1.5 | 3 | 1.50 | 0.7 | 8.1 | 108 | ||||||||||||||||||||
H05VV-F3x2.5 | 3 | 2.50 | 0.8 | 9.9 | 163 | ||||||||||||||||||||
H05VV-F3x4 | 3 | 4.00 | 0.8 | 11.3 | 227 | ||||||||||||||||||||
H05VV-F4x0.75 | 4 | 0.75 | 0.6 | 7.3 | 82 | ||||||||||||||||||||
H05VV-F4x1 | 4 | 1.00 | 0.6 | 7.9 | 100 | ||||||||||||||||||||
H05VV-F4x1.5 | 4 | 1.50 | 0.7 | 9.0 | 134 | ||||||||||||||||||||
H05VV-F4x2.5 | 4 | 2.50 | 0.8 | 10.8 | 201 | ||||||||||||||||||||
H05VV-F5x0.75 | 5 | 0.75 | 0.6 | 8.1 | 102 | ||||||||||||||||||||
H05VV-F5x1 | 5 | 1.00 | 0.6 | 8.6 | 120 | ||||||||||||||||||||
H05VV-F5x1.5 | 5 | 1.50 | 0.7 | 10.0 | 166 | ||||||||||||||||||||

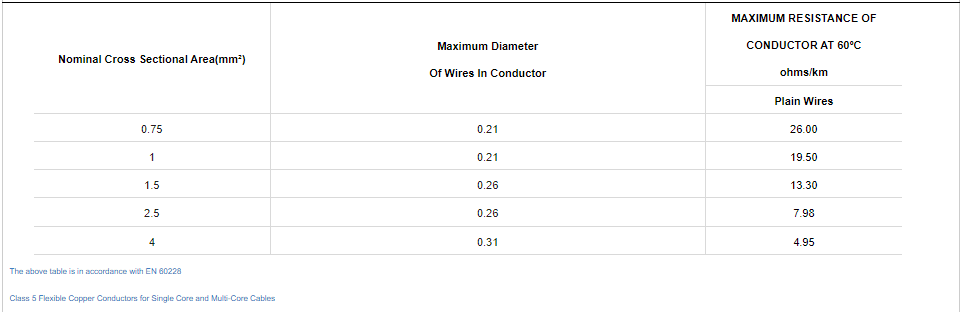

Conductors: | |||||||||||||||||||||||||
Nominal Cross Sectional Area(mm²) | Maximum Diameter | MAXIMUM RESISTANCE OF CONDUCTOR AT 60ºC | |||||||||||||||||||||||
Plain Wires | |||||||||||||||||||||||||
0.75 | 0.21 | 26.00 | |||||||||||||||||||||||
1 | 0.21 | 19.50 | |||||||||||||||||||||||
1.5 | 0.26 | 13.30 | |||||||||||||||||||||||
2.5 | 0.26 | 7.98 | |||||||||||||||||||||||
4 | 0.31 | 4.95 | |||||||||||||||||||||||
The above table is in accordance with EN 60228 | |||||||||||||||||||||||||

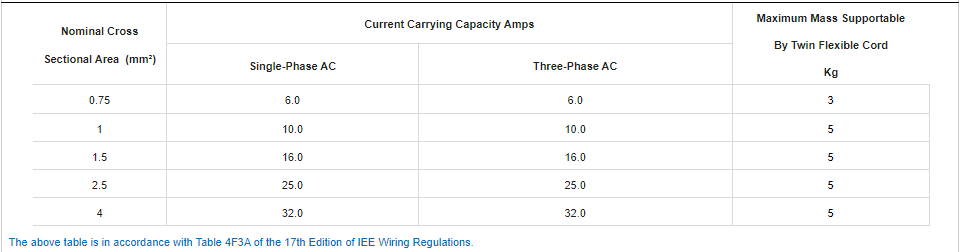

Current Carrying Capacity | |||||||||||||||||||||||||
Nominal Cross Sectional Area (mm²) | Current Carrying Capacity Amps | Maximum Mass Supportable | |||||||||||||||||||||||
Single-Phase AC | Three-Phase AC | ||||||||||||||||||||||||
0.75 | 6.0 | 6.0 | 3 | ||||||||||||||||||||||
1 | 10.0 | 10.0 | 5 | ||||||||||||||||||||||
1.5 | 16.0 | 16.0 | 5 | ||||||||||||||||||||||
2.5 | 25.0 | 25.0 | 5 | ||||||||||||||||||||||
4 | 32.0 | 32.0 | 5 | ||||||||||||||||||||||
The above table is in accordance with Table 4F3A of the 17th Edition of IEE Wiring Regulations. | |||||||||||||||||||||||||

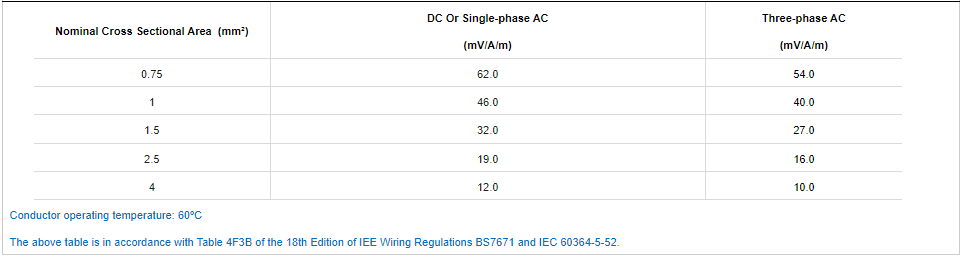

Voltage Drop: | |||||||||||||||||||||||||
Nominal Cross Sectional Area (mm²) | DC Or Single-phase AC | Three-phase AC | |||||||||||||||||||||||
0.75 | 62.0 | 54.0 | |||||||||||||||||||||||
1 | 46.0 | 40.0 | |||||||||||||||||||||||
1.5 | 32.0 | 27.0 | |||||||||||||||||||||||
2.5 | 19.0 | 16.0 | |||||||||||||||||||||||
4 | 12.0 | 10.0 | |||||||||||||||||||||||
Conductor operating temperature: 60ºC |
