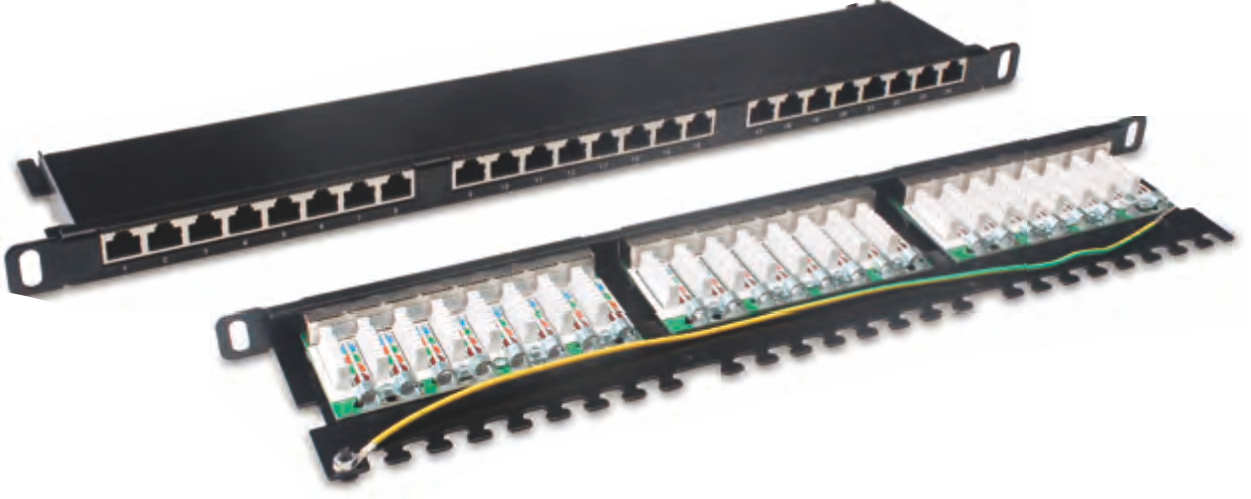

Patch Panels ZCPP206-24

0.5U cat5e patch panel.

Features
∙ Meet ISO/IEC 11801,TIA/EIA568C.
∙ Fit for wires AWG22-26.
∙ IDC contacts: Maximum 200 reterminations.
∙ Min. life 750 insertions.
∙ Material: PC/ABS for cover, PC for module
  phosphor bronze for IDC..

Order Information

Item No.

Description

ZCPP206-24-05U5E

Cat5e 19" ,0.5U,24ports

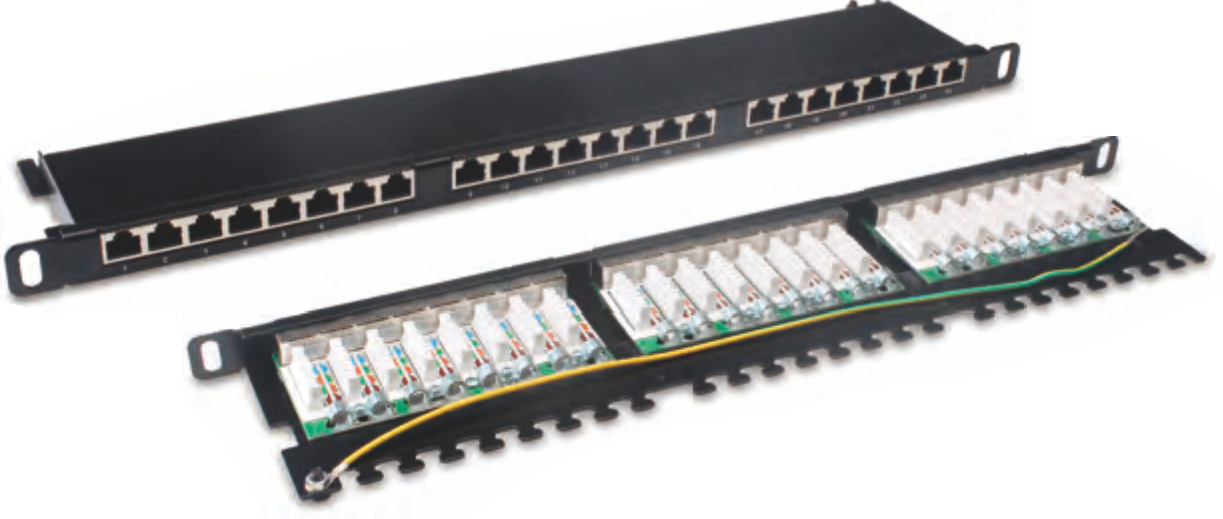

ZCPP206-24-C6

0.5U cat6 patch panel.

Features
∙ Meet ISO/IEC 11801,TIA/EIA568C.
∙ Fit for wires AWG22-26.
∙ IDC contacts: Maximum 200 reterminations.
∙ Min. life 750 insertions.
∙ Material: PC/ABS for cover, PC for module
  phosphor bronze for IDC..

Order Information

Item No.

Description

ZCPP206-24-05U6

Cat6 19" ,0.5U,24ports

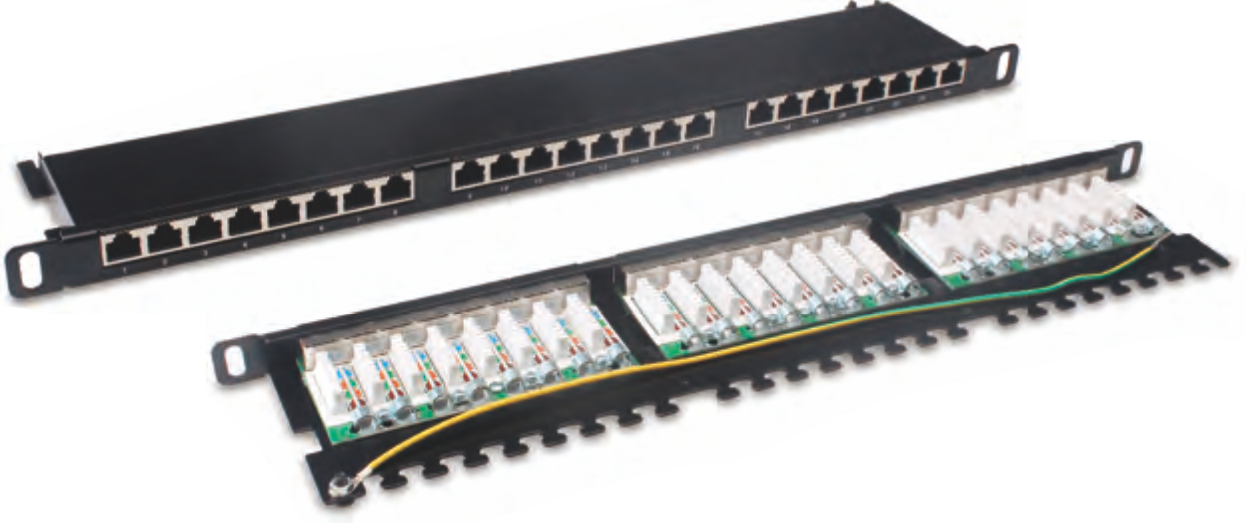

ZCPP206-24-C6A

0.5U cat6A patch panel.

Features
∙ Meet ISO/IEC 11801,TIA/EIA568C.
∙ Fit for wires AWG22-26.
∙ IDC contacts: Maximum 200 reterminations.
∙ Min. life 750 insertions.
∙ Material: PC/ABS for cover, PC for module
  phosphor bronze for IDC..

Order Information

Item No.

Description

ZCPP206-24-05U6A

Cat6A 19" ,0.5U,24ports
