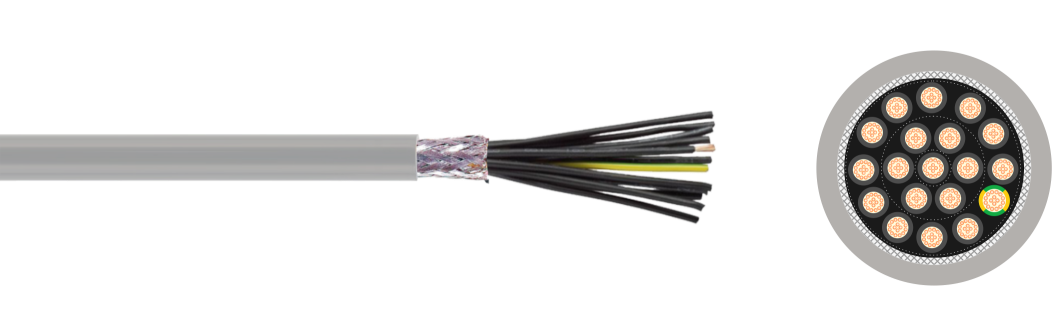

CY LSZH Control Cable

CY LSZH Control Cable

Application:

Cable Standards:

Low smoke zero halogen CY flexible control cable is used in installations where a screen is required to prevent interference on data and signal transmissions. The flexible cable is also used on measuring as well as checking and control equipment in areas where there is risk to life from fire, smoke emissions and toxic fumes.

VDE 0207-303-7,
Flame Retardant according to IEC/EN 60332-1-2,
IEC/EN 60332-3-24
Low Smoke Zero Halogen according to IEC/EN 60754-1/2,
IEC/EN 61034-1/2

Product Description:

Conductor

Plain Annealed Flexible Copper

Insulation

Low Smoke Zero Halogen (LSZH)

Screen

Tinned Copper Wire Braiding

Sheath material

Low Smoke Zero Halogen (LSZH)

Characteristics:

Voltage Rating Uo/U

300/500V

Temperature Rating

Fixed: -40°C to +80°C

Flexed: -15°C to +70°C

Minimum Bending Radius

Fixed: 6 x overall diameter

Flexed: 15 x overall diameter

Core Identification:

3 Core and above

Black with

White numbers

Numbers plus

Green/Yellow

Also available with coloured cores as follows:

3 Core:

Blue

Brown

Green/Yellow

4 Core:

Brown

Black

Grey

Green/Yellow

Should not be installed at temperatures below -5℃

Dimensions:

Zion Code

No. Of
Cores

Conductor Size (mm2)

Stranding (mm)

Weight (kg/km)

Outside Diameter (mm)

Gland Size (mm)

CY02075O

2

0.75

24/0.20

43.0

5.5

20/16

CY03075O

3

0.75

24/0.20

52.0

5.8

20/16

CY04075O

4

0.75

24/0.20

68.0

6.5

20/16

CY05075O

5

0.75

24/0.20

80.0

7.1

20/16

CY07075O

7

0.75

24/0.2

103.0

7.6

20/16

CY0215O

2

1.50

30/0.25

61.0

6.5

20/16

CY0315O

3

1.50

30/0.25

78.0

6.9

20/16

CY0415O

4

1.50

30/0.25

104.0

7.7

20/16

CY0515O

5

1.50

30/0.25

128.0

8.6

20/16

CY1215O

12

1.50

30/0.25

281.0

12.7

25.0

CY1815O

18

1.50

30/0.25

396.0

14.7

25.0

CY2515O

25

1.50

30/0.25

534.0

17.5

25.0

CY3415O

34

1.50

30/0.25

720.0

19.9

32.0

CY0225O

2

2.50

50/0.25

102.0

8.0

20/16

CY0325O

3

2.50

50/0.25

117.0

8.4

20/16

CY0425O

4

2.50

50/0.25

168.0

9.2

20S

CY0440O

4

4.00

56/0.25

239.0

11.8

20S

CY0460O

4

6.00

84/0.30

327.0

12.9

20S

CY0560O

5

6.00

84/0.30

543.0

16.7

25.0

CY04100O

4

10.00

80/0.40

553.0

17.2

25.0

CY04160O

4

16.00

126/0.40

846.0

21.0

32.0

Note: CY: Means Type; 0275 Means 2 Core, 0.75mm²; O= LSZH

Conductor Resistance:

Nominal Cross Sectional Area (mm²)

Maximum Diameter Of
Wires In Conductor mm

Maximum Resistance Conductor
At 20℃

Plain Wires Ohms/km

0.50

9.0

39.00

0.75

12.0

26.00

1.00

15.0

19.50

1.50

18.0

13.30

2.50

26.0

7.98

4.00

34.0

4.95

6.00

44.0

3.30

10.00

61.0

1.91

16.00

82.0

1.21

Current Capacity:

Nominal Cross Sectional Area (mm²)

Current Carry Capacity
At 30℃ In Air Amps

Current Carry Capacity At 30℃
In Conduit (amps)

0.75

16.0

9.00

1.00

20.0

12.00

1.50

24.0

15.00

2.50

32.0

18.00

4.00

42.0

26.00

6.00

54.0

34.00

10.00

73.0

44.00

16.00

98.0

61.00

Voltage Drop:

Nominal Cross Sectional Area (mm²)

Two Core Cable Dc
Mv/a/m

Single Phase Two Core Cable Ac
Mv/a/m

Three Phase 3 Or 4 Core Cable Ac
Mv/a/m

1.00

44.0

44.0

38.0

1.50

29.0

29.0

25.0

2.50

18.0

18.0

15.0

4.00

11.0

11.0

9.5

6.00

7.3

7.3

6.4

10.00

4.4

4.4

3.8

16.00

2.8

2.8

2.4
