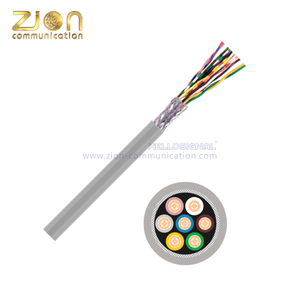

LiYCY TP Control Cable-Data Cable
hellosignal
Availability: | |
---|---|
Product Description
LiYCY TP Control Cable-Data Cable | |||||||||||||||||||
Application: | Cable Standards: | ||||||||||||||||||
To be installed in dry and humid rooms and used as a termination and connection cable in the control, measuring and signal technology. | DIN VDE 0812 | ||||||||||||||||||
Flame Retardant according to: IEC/EN 60332-1-2 | |||||||||||||||||||
Product Description: | |||||||||||||||||||
Conductor | Bare copper strands with reference to VDE 0812 | ||||||||||||||||||
Insulation | PVC, TI2 acc. to EN 50363-3, VDE 0207-363-3 | ||||||||||||||||||
Colour code | With reference to DIN 47100 | ||||||||||||||||||
Stranding | Cores twisted to pairs, pairs twisted in layers | ||||||||||||||||||
Wrapping | PETP foil | ||||||||||||||||||
Sheath material | PVC, TM2 acc. to EN 50363-4-1, VDE 0207-363-4-1 | ||||||||||||||||||
Sheath colour | Grey (RAL 7032) | ||||||||||||||||||
Characteristics: | |||||||||||||||||||
Peak operating voltage | < 0.25 mm² = max. 350 V | ||||||||||||||||||
Testing voltage | core/core 1500 V | ||||||||||||||||||
Min. bending radius | |||||||||||||||||||
fixed laying: | 5 x d | ||||||||||||||||||
flexible application: | 10 x d | ||||||||||||||||||
Temperature range | |||||||||||||||||||
fixed laying: | -30/+70 °C | ||||||||||||||||||
flexible application: | -5/+70 °C | ||||||||||||||||||
Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 , VDE 0482-332-1-2 | ||||||||||||||||||

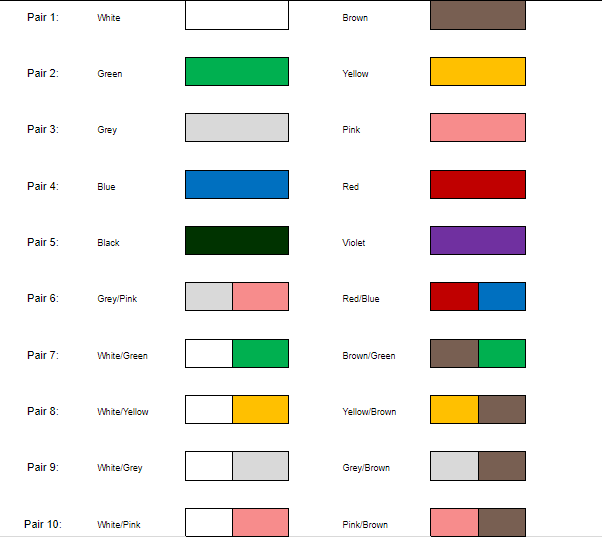

Core Identification: | |||||||||||||||||||
Pair 1: | White | Brown | |||||||||||||||||
Pair 2: | Green | Yellow | |||||||||||||||||
Pair 3: | Grey | Pink | |||||||||||||||||
Pair 4: | Blue | Red | |||||||||||||||||
Pair 5: | Black | Violet | |||||||||||||||||
Pair 6: | Grey/Pink | Red/Blue | |||||||||||||||||
Pair 7: | White/Green | Brown/Green | |||||||||||||||||
Pair 8: | White/Yellow | Yellow/Brown | |||||||||||||||||
Pair 9: | White/Grey | Grey/Brown | |||||||||||||||||
Pair 10: | White/Pink | Pink/Brown | |||||||||||||||||
Dimensions: | |||||||||||||||||||

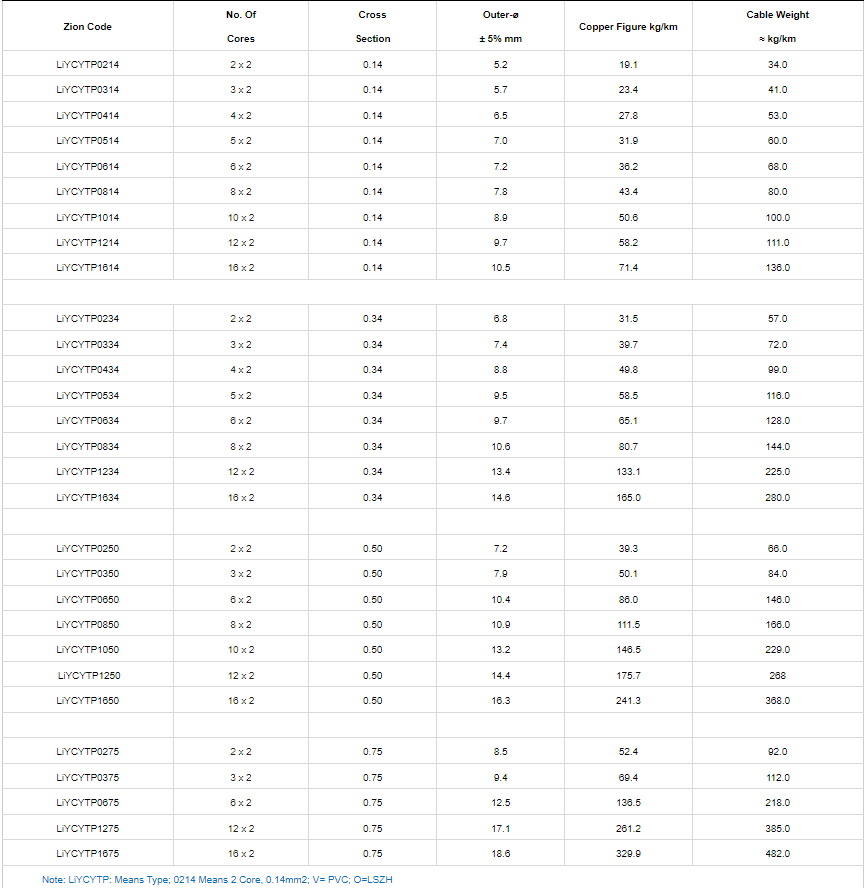

Zion Code | No. Of | Cross | Outer-ø | Copper Figure kg/km | Cable Weight | ||||||||||||||
LiYCYTP0214 | 2 x 2 | 0.14 | 5.2 | 19.1 | 34.0 | ||||||||||||||
LiYCYTP0314 | 3 x 2 | 0.14 | 5.7 | 23.4 | 41.0 | ||||||||||||||
LiYCYTP0414 | 4 x 2 | 0.14 | 6.5 | 27.8 | 53.0 | ||||||||||||||
LiYCYTP0514 | 5 x 2 | 0.14 | 7.0 | 31.9 | 60.0 | ||||||||||||||
LiYCYTP0614 | 6 x 2 | 0.14 | 7.2 | 36.2 | 68.0 | ||||||||||||||
LiYCYTP0814 | 8 x 2 | 0.14 | 7.8 | 43.4 | 80.0 | ||||||||||||||
LiYCYTP1014 | 10 x 2 | 0.14 | 8.9 | 50.6 | 100.0 | ||||||||||||||
LiYCYTP1214 | 12 x 2 | 0.14 | 9.7 | 58.2 | 111.0 | ||||||||||||||
LiYCYTP1614 | 16 x 2 | 0.14 | 10.5 | 71.4 | 136.0 | ||||||||||||||
LiYCYTP0234 | 2 x 2 | 0.34 | 6.8 | 31.5 | 57.0 | ||||||||||||||
LiYCYTP0334 | 3 x 2 | 0.34 | 7.4 | 39.7 | 72.0 | ||||||||||||||
LiYCYTP0434 | 4 x 2 | 0.34 | 8.8 | 49.8 | 99.0 | ||||||||||||||
LiYCYTP0534 | 5 x 2 | 0.34 | 9.5 | 58.5 | 116.0 | ||||||||||||||
LiYCYTP0634 | 6 x 2 | 0.34 | 9.7 | 65.1 | 128.0 | ||||||||||||||
LiYCYTP0834 | 8 x 2 | 0.34 | 10.6 | 80.7 | 144.0 | ||||||||||||||
LiYCYTP1234 | 12 x 2 | 0.34 | 13.4 | 133.1 | 225.0 | ||||||||||||||
LiYCYTP1634 | 16 x 2 | 0.34 | 14.6 | 165.0 | 280.0 | ||||||||||||||
LiYCYTP0250 | 2 x 2 | 0.50 | 7.2 | 39.3 | 66.0 | ||||||||||||||
LiYCYTP0350 | 3 x 2 | 0.50 | 7.9 | 50.1 | 84.0 | ||||||||||||||
LiYCYTP0650 | 6 x 2 | 0.50 | 10.4 | 86.0 | 146.0 | ||||||||||||||
LiYCYTP0850 | 8 x 2 | 0.50 | 10.9 | 111.5 | 166.0 | ||||||||||||||
LiYCYTP1050 | 10 x 2 | 0.50 | 13.2 | 146.5 | 229.0 | ||||||||||||||
LiYCYTP1250 | 12 x 2 | 0.50 | 14.4 | 175.7 | 268 | ||||||||||||||
LiYCYTP1650 | 16 x 2 | 0.50 | 16.3 | 241.3 | 368.0 | ||||||||||||||
LiYCYTP0275 | 2 x 2 | 0.75 | 8.5 | 52.4 | 92.0 | ||||||||||||||
LiYCYTP0375 | 3 x 2 | 0.75 | 9.4 | 69.4 | 112.0 | ||||||||||||||
LiYCYTP0675 | 6 x 2 | 0.75 | 12.5 | 136.5 | 218.0 | ||||||||||||||
LiYCYTP1275 | 12 x 2 | 0.75 | 17.1 | 261.2 | 385.0 | ||||||||||||||
LiYCYTP1675 | 16 x 2 | 0.75 | 18.6 | 329.9 | 482.0 | ||||||||||||||
Note: LiYCYTP: Means Type; 0214 Means 2 Core, 0.14mm2; V= PVC; O=LSZH | |||||||||||||||||||
