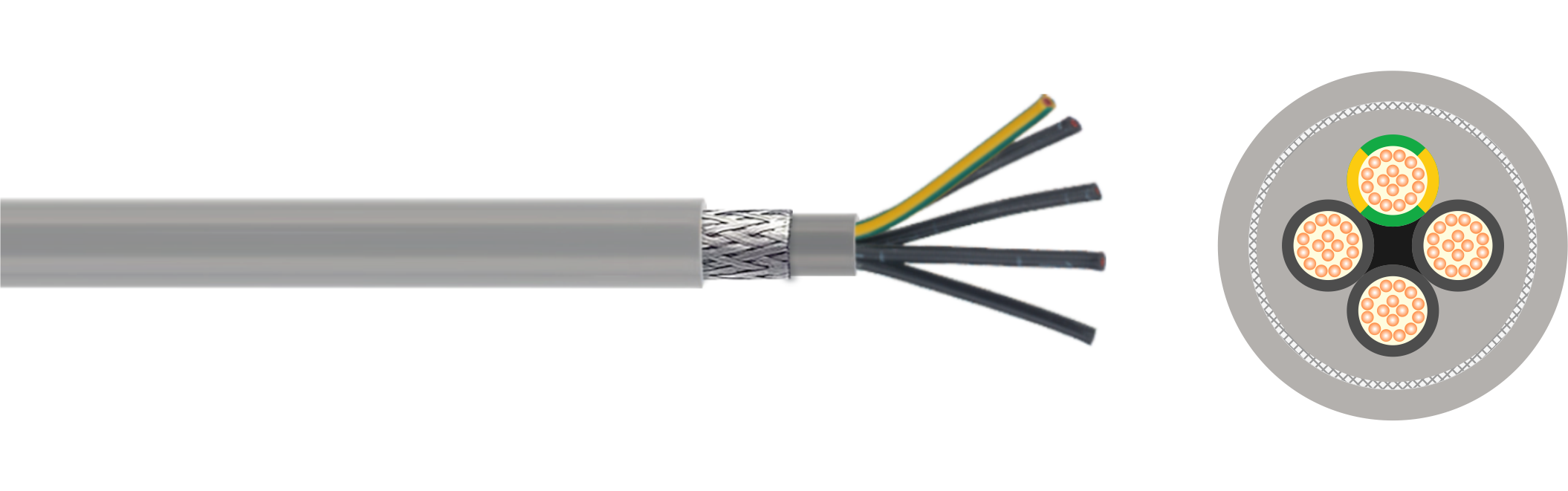

SY PVC Control Cable

SY PVC Control Cable

Application:

Cable Standards:

SY cables are used as an interconnecting cable between fixed and mobile equipment in conveyors, assembly lines, production lines and machine tool manufacture where the galvanised steel wire braid armour gives excellent mechanical protection. These cables are not UV resistant but can be used outdoors if adequately protected against direct sunlight in trunking etc.

VDE 0207-363-3, VDE 819-102 (TM54)

Flame Retardant according to IEC/EN 60332-1-2

Product Description:

Conductor

Plain Annealed Stranded Copper

Insulation

PVC

Bedding

PVC

Armouring

Galvanised Steel Wire Braid

Sheath

Transparent PVC

Characteristics:

Voltage Rating Uo/U

300/500V

Temperature Rating

Fixed: -40°C to +80°C

Flexed: -5°C to +70°C

Minimum Bending Radius

Fixed: 4 x overall diameter

Flexed: 12.5 x overall diameter

Core Identification:

2 Core:

Black with

White numbers

3 Core and above

Black with

White numbers

Numbers plus

Green/Yellow

Also available with coloured cores as follows:

3 Core:

Blue

Brown

Green/Yellow

4 Core:

Brown

Black

Grey

Green/Yellow

5 Core:

Blue

Brown

Black

Grey

Green/Yellow

Should not be installed at temperatures below -5℃

Dimensions:

Zion Code

No. Of
Cores

Conductor Size (mm2)

Stranding (mm)

Weight (kg/km)

Outside Diameter (mm)

Gland Size (mm)

SY02075V

2

0.75

24/0.20

78.0

7.1

20/16

SY03075V

3

0.75

24/0.20

91.0

7.6

20/16

SY04075V

4

0.75

24/0.20

104.0

8.3

20/16

SY05075V

5

0.75

24/0.20

121.0

8.9

20/16

SY07075V

7

0.75

24/0.20

135.0

9.5

20/16

SY12075V

12

0.75

24/0.20

214.0

11.9

20S

SY18075V

18

0.75

24/0.20

293.0

13.2

20S

SY25075V

25

0.75

24/0.20

418.0

13.7

20S

SY34075V

34

0.75

24/0.20

610.0

19.0

20.0

SY0210V

2

1.00

32/0.20

85.0

7.7

20/16

SY0310V

3

1.00

32/0.20

95.0

8.2

20/16

SY0410V

4

1.00

32/0.20

120.0

9.0

20/16

SY0510V

5

1.00

32/0.20

123.0

9.2

20/16

SY0710V

7

1.00

32/0.20

171.0

10.1

20/16

SY1210V

12

1.00

32/0.20

276.0

12.9

20S

SY1810V

18

1.00

32/0.20

382.0

15.0

20.0

SY2510V

25

1.00

32/0.20

437.0

17.9

20.0

SY3410V

34

1.00

32/0.20

556.0

20.0

20.0

SY5010V

50

1.00

32/0.20

955.0

23.7

25.0

SY0215V

2

1.50

30/0.25

100.0

8.2

20/16

SY0315V

3

1.50

30/0.25

143.0

8.6

20/16

SY0415V

4

1.50

30/0.25

170.0

9.3

20/16

SY0515V

5

1.50

30/0.25

173.0

10/.00

20/16

SY0715V

7

1.50

30/0.25

198.0

10.7

20/16

SY1215V

12

1.50

30/0.25

341.0

13.8

20S

SY1815V

18

1.50

30/0.25

490.0

16.4

20.0

SY2515V

25

1.50

30/0.25

606.0

19.2

20.0

SY3415V

34

1.50

30/0.25

835.0

21.6

25.0

SY5015V

50

1.50

30/0.25

1046.0

23.8

25.0

SY0225V

2

2.50

50/0.25

177.0

9.8

20/16

SY0325V

3

2.50

50/0.25

190.0

9.9

20/16

SY0425V

4

2.50

50/0.25

240.0

10.8

20/16

SY0525V

5

2.50

50/0.25

247.0

11.5

20S

SY0725V

7

2.50

50/0.25

327.0

13.0

20S

SY1225V

12

2.50

50/0.25

502.0

16.9

20.0

SY1825V

18

2.50

50/0.25

740.0

19.8

20.0

SY2525V

25

2.50

50/0.25

1065.0

23.2

25.0

SY3425V

34

2.50

50/0.25

1126.0

24.3

25.0

SY0340V

3

4.00

56/0.30

323.0

12.2

20S

SY0440V

4

4.00

56/0.30

354.0

13.4

20S

SY0540V

5

4.00

56/0.30

392.0

15.0

20.0

SY0740V

7

4.00

56/0.30

486.0

16.0

20.0

SY0360V

3

6.00

84/0.30

343.0

13.4

20S

SY0460V

4

6.00

84/0.30

458.0

14.6

20S

SY0560V

5

6.00

84/0.30

572.0

16.7

20.0

SY0760V

7

6.00

84/0.30

640.0

18.0

20.0

SY03100V

3

10.00

80/0.40

563.0

17.3

20.0

SY04100V

4

10.00

80/0.40

776.0

19.1

20.0

SY05100V

5

10.00

80/0.40

855.0

21.0

25.0

Note: SY: Means Type; 0275 Means 2 Core, 0.75mm²; V= PVC

Dimensions:

Zion Code

Conductor Size (mm2)

Stranding (mm)

No. Of
Cores

Weight (kg/km)

Outside Diameter (mm)

Gland Size (mm)

SY0316-v

16.00

126/0.40

3

813.0

20.5

25.0

SY0416-v

16.00

126/0.40

4

900.0

22.4

25.0

SY0516-v

16.00

126/0.40

5

1258.0

25.2

25.0

SY0425-v

25.00

196/0.40

4

1597.0

28.2

32.0

SY0525-v

25.00

196/0.40

5

2007.0

31.2

40.0

SY0435-v

35.00

276/0.40

4

2046.0

31.3

40.0

SY0535-v

35.00

276/0.40

5

2524.0

34.3

40.0

SY0450-v

50.00

396/0.40

4

2888.0

37.0

40.0

SY0470-v

70.00

356/0.50

4

4015.0

41.2

50S

SY0495-v

95.00

485/0.50

4

5176.0

47.8

50.0

Conductor Resistance:

Nominal Cross Sectional Area (mm²)

Maximum Diameter Of
Wires In Conductor mm

Maximum Resistance Conductor
At 20℃

0.75

12.0

26.00

1.00

15.0

19.50

1.50

18.0

13.30

2.50

26.0

7.98

4.00

34.0

4.95

6.00

44.0

3.30

10.00

61.0

1.91

16.00

82.0

1.21

Current Carrying Capacity:

Nominal Cross Sectional Area (mm²)

Current Carry Capacity
At 30℃ In Air Amps

Current Carry Capacity At 30℃
In Conduit (amps)

0.75

13.00

9.0

1

14.50

11.5

1.5

18.50

15.0

2.5

25.00

20.0

4

34.00

27.0

6

43.00

34.0

10

60.00

46.0

16

80.00

62.0

Voltage Drop:

Nominal Cross Sectional Area (mm²)

Two Core Cable Dc
Mv/a/m

Single Phase Two Core Cable Ac
Mv/a/m

Three Phase 3 Or 4 Core Cable Ac
Mv/a/m

1

44

44

38.0

1.5

29

29

25.0

2.5

18

18

15.0

4

11

11

9.5

6

7.3

7.3

6.4

10

4.4

4.4

3.8

16

2.8

2.8

2.4
