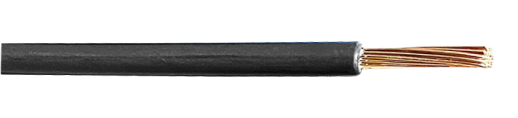

GXL Automotive Cable

GXL Automotive Cable

Product Description:

Conductor

Soft-annealed copper according to ASTM B3

Insulation

XLPE (Polyethylene crosslinked)

Standard Compliance

SAE J1128

Technical Parameters

Operating temperature:–40 °C to +125 °C

Application:

Automotive XLPE insulated single-core cable is used in automotive applications where higher heat resistance and small diameter is required.

Zion's Hot Types of GXL Automotive cable

Type

Conductor

Insulation

Cable

SIZE

Nominal
cross-
section

No. and
Dia. of Wires

Diameter
Max.

Thickness
wall min.

Thickness
wall Nom.

Overall
Diameter max.

Weight
approx.

AWG

mm²

No./mm

mm

mm

mm

mm

Kg/km

20

1 x 0.50

19/0.20

0.97

0.41

0.58

2.40

9.0

18

1 x 0.80

19/0.23

1.17

0.41

0.58

2.50

12.0

18

1 x 0.80

16/0.25

1.17

0.41

0.58

2.50

12.0

16

1 x 1.00

19/0.24

1.45

0.41

0.58

2.90

17.0

14

1 x 2.00

19/0.36

1.8

0.41

0.58

3.20

25.0

12

1 x 3.00

19/0.45

2.29

0.46

0.66

3.80

38.0

10

1 x 5.00

19/0.57

2.87

0.56

0.79

4.70

58.0

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
