SGT Automotive Cable

SGT Automotive Cable

Product Description:

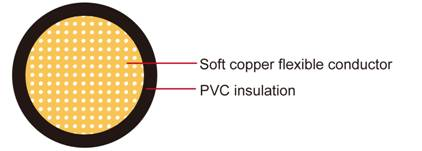

Conductor

Soft copper flexible conductor

Insulation

PVC

Standard Compliance

SAE J1127

Technical Parameters

Operating temperature:–40 °C to +80 °C

Application:

Automotive PVC insulated single-core cable is used for automotive starters or battery grounds.

Zion's Hot Types of SGT Automotive cable

Type

Conductor

Insulation

Cable

SIZE

Nominal
cross-
section

No. and
Dia. of Wires

Diameter
Max.

Thickness
wall Nom.

Overall
Diameter max.

Weight
approx.

AWG

mm²

No./mm

mm

mm

mm

Kg/km

6

1 x 13.48

266/0.26

4.12

1.52

6.58

152.0

4

1 x 21.28

420/0.26

6.72

1.65

9.40

243.0

2

1 x 33.70

665/0.26

8.58

1.65

11.26

368.0

1

1 x 42.36

836/0.26

9.77

1.65

12.45

454.0

1/0

1 x 53.91

1064/0.26

11.1

1.65

13.78

568.0

2/0

1 x 67.04

1323/0.26

12.47

1.65

15.15

697.0

3/0

1 x 84.42

1666/0.26

14.1

1.98

17.30

886.0

4/0

1 x 106.76

2107/0.26

15.97

1.98

19.17

1105.0

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
