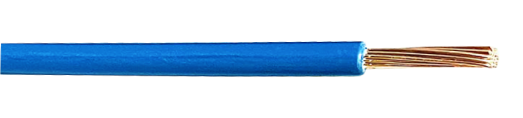

TXL Automotive Cable

TXL Automotive Cable

Product Description:

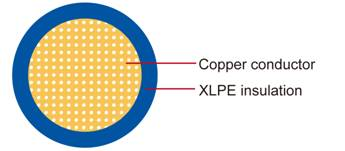

Conductor

Soft-annealed copper according to ASTM B3

Insulation

XLPE (Polyethylene crosslinked)

Standard Compliance

SAE J1128

Technical Parameters

Operating temperature:–40 °C to +105 °C

Application:

Automotive XLPE insulated single-core cable is used in automotive applications where higher heat resistance, small diameter and minimal weight is required.

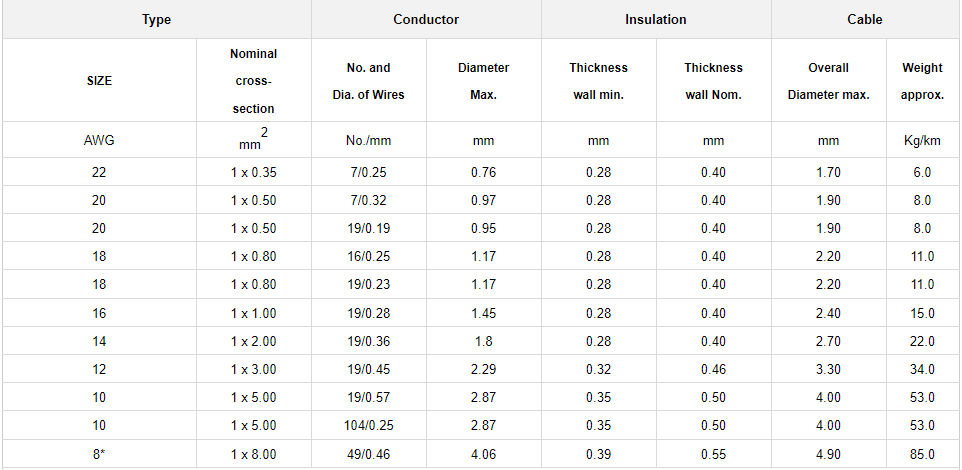

Zion's Hot Types of TXL Automotive cable

Type

Conductor

Insulation

Cable

SIZE

Nominal
cross-
section

No. and
Dia. of Wires

Diameter
Max.

Thickness
wall min.

Thickness
wall Nom.

Overall
Diameter max.

Weight
approx.

AWG

mm²

No./mm

mm

mm

mm

mm

Kg/km

22

1 x 0.35

7/0.25

0.76

0.28

0.40

1.70

6.0

20

1 x 0.50

7/0.32

0.97

0.28

0.40

1.90

8.0

20

1 x 0.50

19/0.19

0.95

0.28

0.40

1.90

8.0

18

1 x 0.80

16/0.25

1.17

0.28

0.40

2.20

11.0

18

1 x 0.80

19/0.23

1.17

0.28

0.40

2.20

11.0

16

1 x 1.00

19/0.28

1.45

0.28

0.40

2.40

15.0

14

1 x 2.00

19/0.36

1.8

0.28

0.40

2.70

22.0

12

1 x 3.00

19/0.45

2.29

0.32

0.46

3.30

34.0

10

1 x 5.00

19/0.57

2.87

0.35

0.50

4.00

53.0

10

1 x 5.00

104/0.25

2.87

0.35

0.50

4.00

53.0

8*

1 x 8.00

49/0.46

4.06

0.39

0.55

4.90

85.0

* For SAE J1128 applications only
