Factory LAN CABLE F/UTP 24 AWG UTP CAT 5e with 0.45-0.51mm Copper or CCA 4 pairs conductor network ethernet Category 5e cable 305m/Pull Box

Cat-5e network cabling is used as a cabling infrastructure for 10BASE-T (Ethernet),
full duplex 100BASE-TX (Fast Ethernet) and 1000BASE-T (Gigabit Ethernet, or GbE) networks.
The Cat 5e standard provides performance of up to 100 MHz and can be used up to a maximum length of 100 meters.

Conductor Material

BC: Bare Copper
CCA: Copper Clad Aluminum

Jacket Material

PVC/LSZH/PE

Property

Nominal Tolerance

Tolerance

Unit

Characteristic impedance, 1–100 MHz

100

± 15

Ω

Characteristic impedance @ 100 MHz

100

 ± 5

Ω

DC loop resistance

≤ 0.188

Ω/m

Propagation speed

0.64

c

Propagation delay

4.80–5.30

ns/m

Delay skew < 100 MHz

< 0.20

ns/m

Capacitance at 800 Hz

52

pF/m

Inductance

525

nH/m

Corner frequency[a]

≤ 57

kHz

Max tensile load, during installation

100

N

Wire diameter

24 AWG (0.51054 mm; 0.205 mm²)

Factory Common production specifications(PAST 90m Fluke TEST)

Conductor

0.45mm|0.48mm|0.49mm|0.5mm|0.51mm|0.52mm

Insulation

0.88mm|0.9mm|0.92mm|0.95mm|1.0mm

Diameter

5.0mm(U/UTP)

5.3mm(F/UTP)|5.6mm|6.0mm

6.4mm(SF/UTP)|6.2mm

5.0*11mm(U/UTP Duplex)

5.6*12mm(F/UTPDuplex)

5.0*2.5mm(U/UTP Self Support)

5.6*2.5(F/UTP Self support)

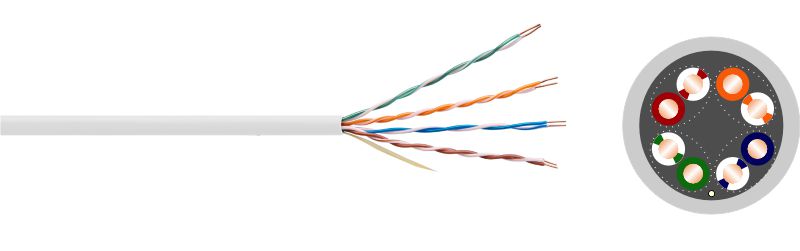

U/UTP CAT 5E Twisted Pair Installation Cable

Conductor

24 AWG Solid Bare Copper

Pairs

4 Pairs

Insulation

HDPE

Insulation Color

Blue-White/Blue,Orange-White/Orange
Green-White/Green,Brown-White/Brown

Rip Cord

Cotton

Out Jacket

5.1±0.2mm

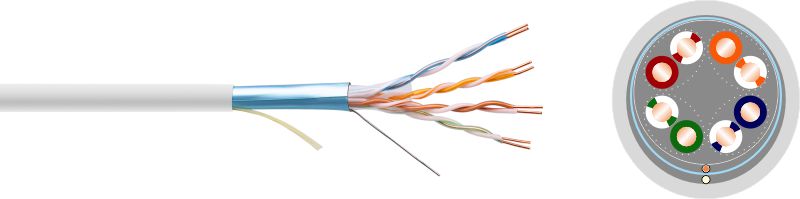

F/UTP CAT 5E Twisted Pair Installation Cable

Conductor

24 AWG Solid Bare Copper

Pairs

4 Pairs

Insulation

HDPE

Insulation Color

Blue-White/Blue,Orange-White/Orange
Green-White/Green,Brown-White/Brown

Rip Cord

Cotton

Drain Wire

0.40±0.005mm TC

Overall Shield

AL/pet Foil, Foil face out

Out Jacket

6.3±0.2mm

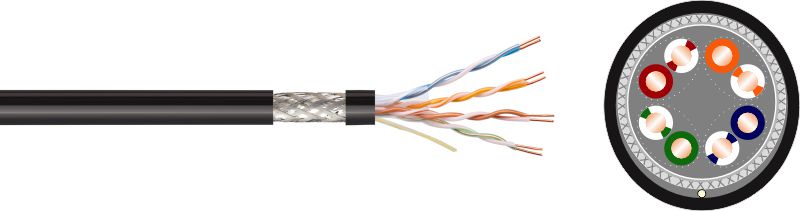

SF/UTP CAT 5E Twisted Pair Installation Cable

Conductor

24 AWG Solid Bare Copper

Pairs

4 Pairs

Insulation

HDPE

Insulation Color

Blue-White/Blue,Orange-White/Orange
Green-White/Green,Brown-White/Brown

Rip Cord

Cotton

Drain Wire

0.40±0.005mm TC

Overall Shield

AL/pet Foil, Foil face out + Tinned Copper Braid

Out Jacket

6.5±0.2mm

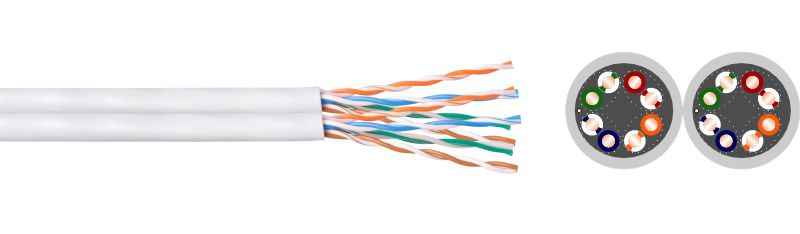

U/UTP Dual CAT 5E Twisted Pair Installation Cable

Conductor

24 AWG Solid Bare Copper

Pairs

4 Pairs

Insulation

HDPE

Insulation Color

Blue-White/Blue,Orange-White/Orange
Green-White/Green,Brown-White/Brown

Rip Cord

Cotton

Out Jacket

(5.2x10.4)±0.2mm

Application

•  Meets or exceeds requirements of ANSI/TIA-568-C.2 Category 5e and

   ISO 11801 2nd Edition Class D channel standards.

•  Meets or exceeds requirements of ANSI/TIA-568-C.2 and IEC 61156-5

   Category 5e component standards.

•  Third party tested to Category 5e channel compliance.

•  Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.

•  Descending length cable markings enable easy identification of remaining cable

   which reduces installation time and cable scrap.

•  Color Availability: Additional cable colors available.

Electrical Characteristics

Impedance

1 - 100MHz 100±15 Ohms

Insulation Resistance

＞5000MΩ*KM

Dielectric strength

DC  2500V  2S

Max.Conductor DC
Resistance 20℃

9.5 Ohms/100m

Res. unbalance (%)

Max. 2.5

Pair to Ground
Capacitance Unbalance

330 pF/100m

Transfer Impendance

Max 10 mOhms/m  @100Mhz

Installation temp.

0 - 50℃

Operation temp.

-20 - 75℃

Performance Characteristics

Frequency

RL
(Min.)

Insertion Loss
(Max.)

Propagation Delay
(Max.)

Delay Skew
(Max.)

NEXT
(Min.)

PSNEXT
(Min.)

ELNEXT
(Min.)

PSELNEXT
(Min.)

MHz

dB

dB/100m

ns/100m

ns/100m

dB

dB

dB/100m

dB/100m

1

20

2.2

570

45

65

62

61

61

4

23

4.2

552

45

56

53

48

48

10

25

6.5

545

45

50

47

41

41

16

25

8.4

543

45

47

44

36

36

20

25

9.3

542

45

45

42

34

34

31.25

23.6

11.6

540

45

42

39

31

31

62.5

21.5

17

539

45

38

35

25

25

100

20.1

22

538

45

35

32

21

21
