Build a quote-ready cable BOM for fire alarm, CCTV surveillance, access control, burglar alarm and plenum security routes. ZION helps project teams compare cable family, conductor size, shielding, pathway rating, packing length, cable marking and document requirements before procurement.
Do not start from a generic “security cable” name. Start from the system drawing: fire alarm loops, CCTV camera routes, controlled doors, intrusion alarm zones and any plenum pathway. Then define cable construction, conductor size, shielding, jacket rating, cable marking, drum length and documents. This makes the quotation more accurate and gives contractors a cleaner BOM for submittal and purchasing.

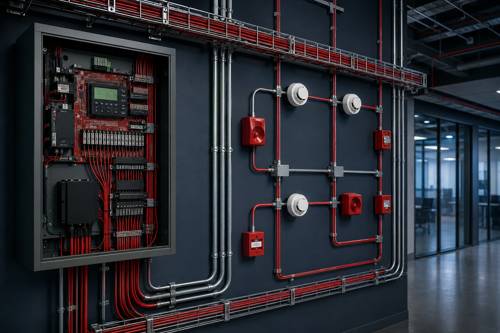

For detectors, pull stations, control panels, notification devices, riser routes, plenum routes and fire-resistant circuits.

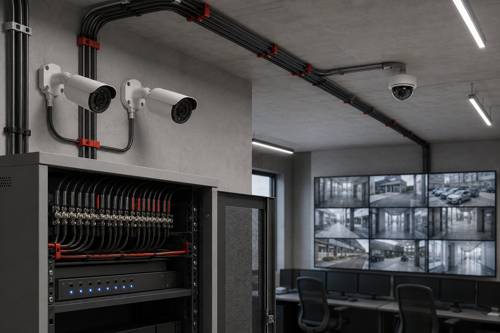

For analog cameras, HD video systems, DVR routes, camera drops, coaxial trunks and camera video-plus-power wiring.

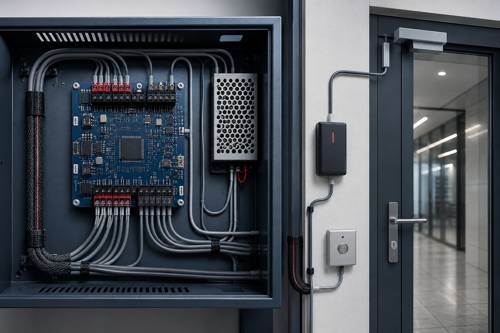

For door controllers, card readers, electric locks, door contacts, REX buttons, keypads and access control panels.

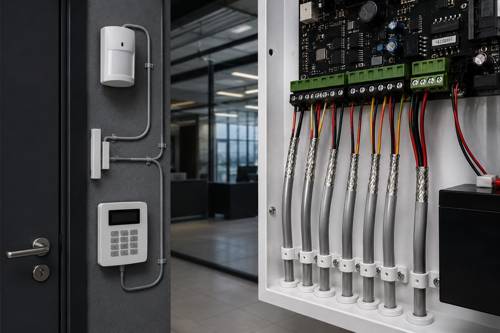

For intrusion sensors, door/window contacts, glass-break detectors, keypads, sirens and alarm control panel wiring.

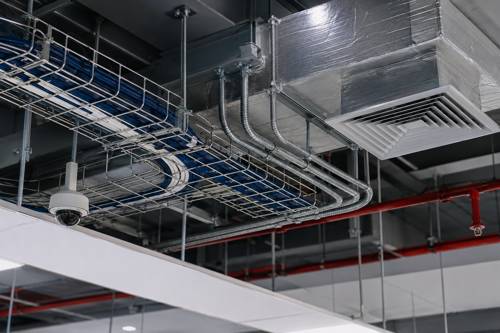

For low-voltage security routes passing through plenum or air-handling spaces in commercial buildings.
| System Area | Typical Devices | Cable Direction | Key Purchase Checks |
|---|---|---|---|
| Fire alarm system | Smoke detector, pull station, horn, strobe, panel and emergency control circuit | Fire alarm cable, riser/plenum fire alarm cable or fire-resistant cable according to specification | Fire rating wording, shielding, conductor size, approval documents, route condition and jacket marking. |
| CCTV surveillance | Analog camera, HD camera, DVR, camera power supply and perimeter camera route | RG59, RG6, RG11 coaxial cable, coax with power or hybrid camera cable | Video format, distance, conductor material, braid coverage, connector type and outdoor exposure. |
| Access control | Reader, lock, door contact, REX device, keypad, controller and access panel | Composite access control cable or selected multi-conductor low-voltage cable | Door schedule, reader protocol, lock current, conductor gauge, shield requirement and labeling. |
| Burglar alarm | PIR sensor, magnetic contact, glass-break detector, keypad, siren and alarm panel | Shielded or unshielded alarm cable by circuit type, route length and interference condition | Zone count, loop wiring, panel compatibility, conductor count, jacket type and packing length. |
| Plenum pathway | Security, alarm, access control, control and sensor cable passing through air-handling spaces | Plenum rated security cable with required conductor size and shield design | Air-handling route, local code requirement, cable marking, datasheet and certificate request. |
For alarm loops, notification circuits, emergency control routes, riser pathways and fire-rated building areas.
For analog camera drops, DVR connections, perimeter camera routes and video-plus-power installation planning.
For card reader, electric lock, door contact, request-to-exit and controller wiring in each controlled door.
For PIR sensors, magnetic contacts, glass-break detectors, keypads, sirens and alarm control panels.
For security, alarm, access control and control cable routes passing through plenum or air-handling spaces.

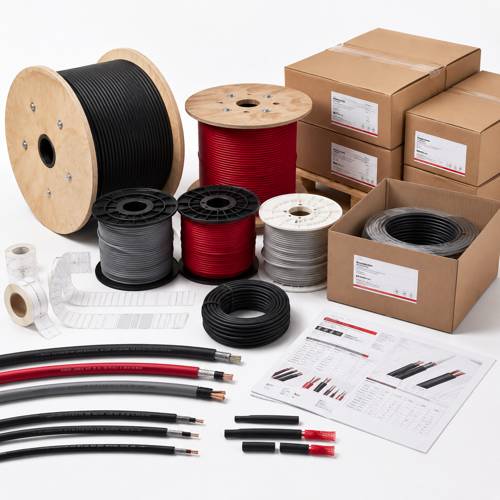

For cable printing, jacket color, drum length, carton labels, datasheets, samples and OEM/ODM discussion.
Supports life-safety alarm circuits and emergency routes where fire performance, riser or plenum wording may be required.
Supports video transmission, camera drops, longer trunks, outdoor perimeter routes and video-plus-power planning.
Keeps reader, lock, contact and request-to-exit wiring organized for each controlled door.
Connects intrusion alarm zones, keypads, sensors and control panels where shielding and conductor count should match panel design.
Separates air-handling pathways from general indoor routes to avoid jacket marking and approval mismatch.
Datasheets, certificates where available, samples, cable printing, packing length and drum labels should be confirmed early.
| Project Condition | Recommended Direction | Risk Focus | What to Confirm |
|---|---|---|---|
| Fire alarm routes inside commercial buildings | Check fire alarm cable, riser cable, plenum cable or fire-resistant cable according to drawing notes. | Wrong marking or incomplete submittal documents may delay approval. | Route rating, conductor size, shield need, sample and certificate request. |
| Analog CCTV camera drops and trunks | Use RG59 for many camera drops; review RG6 or RG11 for longer coaxial routes. | Long distance, poor shielding or wrong connector selection may reduce video quality. | Video format, distance, conductor material, braid coverage and connector type. |
| Door access control packages | Use composite access control cable or grouped low-voltage cables for reader, lock, contact and REX wiring. | Missing door schedule may create wrong conductor count or lock power planning. | Door count, reader type, lock current, controller location and cable marking. |
| Intrusion alarm zone wiring | Select shielded or unshielded alarm cable according to circuit type, route length and interference condition. | Noise exposure or panel mismatch may cause unreliable alarm signals. | Zone count, loop wiring, shielding, conductor count and packing length. |
| Air-handling or plenum space routes | List plenum security cable separately from general indoor and riser cable. | Using general cable in a plenum route may create compliance and approval problems. | Pathway condition, cable marking, jacket material and document requirements. |
| Information | Why It Matters | Example Buyer Input | Result for Quotation |
|---|---|---|---|
| System type | Different systems use different cable families and approval language. | Fire alarm, CCTV, access control, burglar alarm or plenum security route. | Sales can group items by application and avoid mixed cable selection. |
| Route condition | Indoor, outdoor, riser, plenum and exposed pathways affect jacket and rating. | Plenum ceiling, riser shaft, conduit, outdoor perimeter or equipment room. | Correct jacket, marking and document direction can be selected. |
| Electrical requirement | Conductor size, pair count, shielding and power load depend on system design. | 18AWG 2C, 22AWG 4C, RG59, RG6 with 2C power, shielded or unshielded. | Quotation can include exact cable construction and alternatives. |
| Quantity and packing | Large projects need route waste, drum length and label planning. | 500 m boxes, 1000 m drums, route labels, jacket color or custom print. | Packaging, marking and logistics can be prepared from the start. |
| Document request | Submittal approval may require datasheets, certificate-related documents or samples. | Datasheet, sample, certificate, test report or jacket marking image. | Document support can be aligned with project approval timing. |
Separate fire alarm, CCTV, access control, burglar alarm and plenum pathways before comparing products.
Identify riser, plenum, outdoor, general indoor and fire-resistant routes from drawings or project notes.
Review conductor gauge, conductor count, shielding, jacket material, color, marking and packing length.
Ask for datasheets, samples, certificate-related files and labeling details before locking the purchase order.
Usually no. Fire alarm, CCTV, access control, burglar alarm and plenum routes may require different conductor sizes, shielding, impedance, jacket materials and approval documents.
Send a BOM with system type, device area, cable construction, route rating, quantity, packing length, document requirement and any target product links.
Shielded cable is often considered for long signal routes, electrically noisy areas, certain reader circuits and alarm zones where the panel or system design recommends shielding.
List plenum routes separately from general or riser routes, because jacket marking, material and approval language may be different.
Distance, video format and installation pathway decide the direction. RG6 or RG11 is often reviewed for longer coaxial routes, while RG59 is common for many camera drops.
For project discussion, buyers can request datasheets, product links, samples, cable marking information and certificate-related documents where available.
Customization may be discussed for jacket color, printing, carton labels, drum labels and packing length. Requirements should be confirmed before quotation and production planning.
Distributors and contractors can discuss project BOM review, product matching, datasheet support, sample requests, packing requirements and OEM/ODM options through Sales Support.
Send drawings, system list, route condition, cable quantities, product links, packing requirements and document requests. ZION can help organize the cable direction before quotation.
