BMS / Automation
Building Management System
For HVAC controllers, meters, sensors, actuators, gateways and field control loops.
View BMS Cabling →
Building Low-Voltage Systems
Low-Voltage Cabling Solutions for Smart Building Systems
Building low-voltage systems need more than one cable type. A complete project may combine BMS bus cable, KNX lighting control cable, audio/video cable, Ethernet cable, indoor fiber cable, patch panels and equipment-room accessories. ZION helps contractors, system integrators and procurement teams select cabling by signal type, route distance, shielding, fire rating, termination method and project BOM structure. This page helps you compare common building system areas, choose suitable product families, reduce installation risk and request project support before purchasing.
BMS and automation busRS485, shielded control and field device cabling for HVAC, meters, sensors and controllers.
KNX and lighting control1-pair and 2-pair KNX cable options for smart lighting, room control and building automation.
Audio/video and IP systemsSpeaker, coaxial, Cat6A and fiber links for meeting rooms, PA systems and AV distribution.
MDF / IDF backboneIndoor fiber, copper cabling, patching and rack accessories for riser and floor distribution.
System Areas
What building low-voltage systems should be planned together?
A low-voltage building project normally contains several independent signal systems. Treating them as one generic cable order can create mismatch, installation delay and unclear responsibility. The practical approach is to separate each system area first, then combine cable, accessories, packing and labeling into one controlled procurement list.

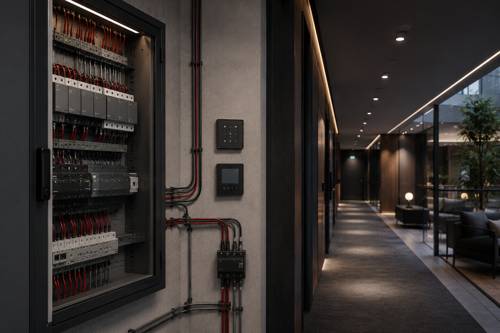

KNX / Lighting
Lighting Control Cabling
For KNX bus, dimming circuits, curtain control, wall panels and room automation.
View KNX Solution →

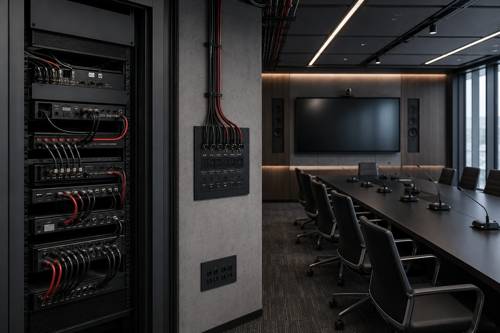

Audio / Video
AV Signal Cabling
For PA systems, meeting rooms, classrooms, display links and fixed speaker routes.
View AV Cabling →

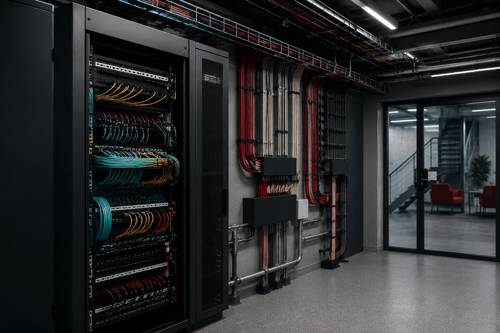

MDF / IDF
Building Backbone Cabling
For riser shafts, floor distribution, telecom rooms and equipment-room patching.
View Backbone Solution →Selection Matrix
How should contractors choose cable types for each building system?
| System Area | Typical Devices | Recommended Product Direction | Engineering Decision Check | Related Page |
|---|---|---|---|---|
| BMS / Automation | HVAC controllers, meters, sensors, actuators and control gateways. | RS485 cable, shielded control cable, instrumentation cable and Ethernet cable. | Confirm protocol, impedance, shielding, grounding method, distance and pathway separation. | BMS Solution |
| KNX / Lighting Control | Lighting bus, dimming module, curtain control, room panel and smart switch. | KNX 1-pair cable, KNX 2-pair cable, LSZH control cable and shielded low-voltage cable. | Check bus topology, sheath requirement, labeling rule and separation from power circuits. | KNX Solution |
| Audio & Video | Speaker routes, PA systems, conference rooms, display systems and AV-over-IP devices. | Speaker cable, audio cable, coaxial cable, Cat6A cable or fiber optic link. | Confirm distance, attenuation, shielding, bandwidth, termination and fixed-install route. | AV Solution |
| Building Backbone | MDF, IDF, riser shaft, floor distributor, telecom room and rack cabinet. | Indoor fiber cable, Cat6A/Cat7 cable, fiber patch panel, copper patch panel and patch cords. | Confirm bandwidth, route length, bend radius, fire rating, port count and spare capacity. | Backbone Solution |
Project Decision Rules
Which risk factors change the cable specification?
Distance and attenuation
Longer routes may require larger conductor size, lower-loss cable, fiber backbone or extra active equipment planning.
EMI and route sharing
Motor rooms, HVAC equipment and power trays increase interference risk. Shielding and pathway separation should be checked before quotation.
Fire rating and sheath
Commercial buildings may need LSZH, flame-retardant or project-specific jacket options depending on local code and consultant specification.
Termination compatibility
Cable selection should match connector type, patch panel, rack layout, field device terminal and installer practice.
Labeling and maintenance
Clear cable printing, carton label, route record and spare port planning reduce future troubleshooting cost.
BOM consolidation
Combining cables and accessories into one project list helps procurement avoid missed items and repeated small orders.
Risk Control
When does a low-voltage cable order become risky?
Many building cabling problems are created before installation starts. The risk is usually not that the cable cannot be purchased, but that the cable is purchased without confirming signal type, environment, pathway, termination and project handover requirements.
Good condition
Each system is separated by signal type, route length, shielding requirement, sheath rating and termination method.
- Clear system drawing
- Confirmed route length
- Known installation environment
Warning condition
Power, control, AV and data routes share limited tray or riser space without enough route separation and labeling.
- High EMI exposure
- Mixed pathways
- Unclear fire rating
High-risk condition
Products are selected only by unit price, without checking shielding, attenuation, jacket, connector and compliance documents.
- No datasheet review
- No sample confirmation
- No project BOM control
Product Combination
Which product families support building low-voltage systems?
Use the following product families as a practical starting point for BMS, KNX, AV and backbone cabling. Final selection should still confirm conductor, shielding, sheath, packing length, certification documents and project-specific labeling requirements.
BMS / RS485
RS485 Cable for Modbus / BACnet Control
Used for BMS controllers, HVAC equipment, meters and field devices where stable long-distance bus communication is required.
24AWG2 PairShieldedControl Bus
View Product
Control Cable
Shielded Control / Fieldbus Cable
Suitable for sensor, actuator, gateway and low-voltage control circuits where interference control is important.
ShieldingEMI ControlPVC / LSZHAutomation
View Category
KNX / Lighting
KNX Cable 1 Pair 0.8mm
Recommended for standard KNX lighting control, room panels and smart building bus wiring with clear route labeling.
1 Pair0.8mmFoil ShieldLSZH
View Product
KNX / Spare Pair
KNX Cable 2 Pair 0.8mm
Used when the project needs broader deployment flexibility, spare pair planning or more complex room-control distribution.
2 Pair0.8mmLSZHLighting Bus
View Product
Audio / Video
Circular Audio Speaker Cable
Used for PA systems, conference rooms, classrooms, hotel audio and fixed building speaker cable routes.
Speaker Cable2 CoreFixed InstallAV System
View Product Procurement Checklist
What should be confirmed before requesting a quotation?
| Checklist Item | Why It Matters | What to Provide to ZION |
|---|---|---|
| System type | BMS, KNX, AV and backbone links use different signal logic and cable requirements. | Separate the inquiry by system area and device type. |
| Route length | Distance affects attenuation, bus stability, voltage drop and copper/fiber decision. | Provide floor distance, riser height and equipment room locations. |
| Installation pathway | Tray, conduit, riser shaft and ceiling routes may require different sheath and packing choices. | Share route environment, indoor/outdoor condition and pathway limitation. |
| Fire and sheath requirement | Commercial buildings may require LSZH, flame-retardant or consultant-specified jacket options. | Confirm local code, project specification and requested jacket marking. |
| Accessories and termination | Cable performance depends on patch panels, connectors, rack layout and field termination quality. | List patch panel, patch cord, rack, PDU, cable manager and label requirements. |
| Documents and samples | Datasheets, samples and packing labels help contractors check compatibility before mass order. | Request datasheet, sample, cable printing, carton label or OEM/ODM support. |
Project Workflow
How does ZION support project supply from layout to delivery?
Segment the system
Separate BMS, KNX, AV, backbone, data and equipment-room requirements before building the BOM.
Confirm product direction
Check distance, signal type, shielding, sheath, fire rating, termination and installation route.
Prepare BOM and samples
Match cables with patch panels, patch cords, racks, PDUs, labels and packing requirements.
Support handover
Keep datasheets, labeling, spare ports, route records and maintenance access clear for future service.
FAQ
Common questions about building low-voltage cabling supply
Can ZION help prepare a cable BOM for a building low-voltage project?
Yes. You can provide the system list, floor count, MDF/IDF locations, device types, route lengths, fire rating requests and quantity estimate. ZION can help organize the inquiry into cable families, accessories, packing and document requirements.
Which products are usually included in a low-voltage building cabling inquiry?
Typical inquiries may include RS485 cable, shielded control cable, KNX cable, speaker cable, coaxial cable, Cat6/Cat6A cable, indoor fiber cable, fiber patch panels, copper patch panels, patch cords, cable managers, racks and PDUs.
Can I request samples before confirming a project order?
Yes. Sample support can be discussed through Sales Support. The recommended sample type depends on cable structure, jacket requirement, marking, packing and the project approval process.
Can ZION provide datasheets and certification documents?
ZION can provide available datasheets and related product documents for review. Required documents should be confirmed during quotation because different cable types and jacket options may have different documentation.
Does ZION support OEM/ODM cable marking and packing?
Yes. Custom cable printing, jacket color, drum length, carton labels and packing support can be discussed according to order quantity, product type and production feasibility.
What is the MOQ for low-voltage building cables?
MOQ depends on cable type, structure, jacket material, color, marking and packing format. Standard products and customized products may have different MOQ requirements.
How should distributors or contractors choose between copper and fiber backbone?
Copper is often used for shorter equipment-room and floor distribution links, while fiber is preferred for longer backbone, higher bandwidth and stronger separation between MDF and IDF areas. Final selection should confirm distance, bandwidth and rack design.
Can ZION support project supply for distributors and system integrators?
Yes. ZION can support distributors, system integrators and contractors with product selection, samples, datasheets, packing discussion and project-based supply communication through Sales Support.
Need product selection support for a building low-voltage project?
Send your system layout, device list, floor distribution, route length, fire rating request and target product families. ZION can help convert the project condition into a practical cable and accessory inquiry list.
