GJJA Indoor Fishing-line 0.9mm Tight buffer Fiber Optic Cable

GJJA

Indoor fishing line 0.9mm Tight buffer Fiber Optic Cable for

Cabling in Buildings

■ Introduction:

Optical cables for vertical wiring in buildings, which is a major component of the drop segment in FTTx networks,refer to the drop cables going from ducts in buildings into rooms. Vertical wiring is mainly applied to high-storey buildings, super high-storey buildings, buildings with high-density subscribers and large information processing centers such as data centers.

■ Features:

Using G657B3/G657A2 optical fibres, with excellent anti-bending performance
Small size, precisely controlled route
Transparent, suitable for indoor application
Compatiable with G.652D and G.657A2 optical fibres

■ Product Series:

GJJA: 0.9mm Tight buffer

GJFJH: Duplex Tight buffer Fibers with Aramid yarns

GJFJBV: Flat Duplex Tight buffer Fibers with Aramid yarns

GJPFJV: Multi-core Tigh buffer Bundle with Aramid yarns

GJBFV-I: Multi-core Branch with CSM

GJBFJV-Il: Multi-core Branch without CSM

GJBFVH: Large Fibre Count Mixed Branch with CSM

GJPFH: Micro-tube Breakout with CSM

GJPFXJH: Breakout Tight Buffer fibers with FRP Strength

GJPFWQH: Micro-tube Breakout with FRP Strength

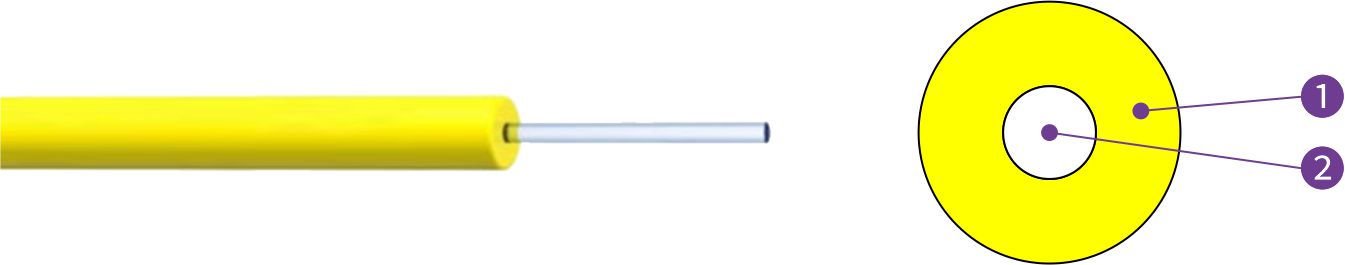

■ Cross Section:

1. Transparent Thermopiastic Buffer           2. Fibre

■ Technical Characteristics:

Type: GJJA

Diameter(mm): 0.9

Weight(kg/km): 0.7

Tension(N) Long/short: 3.0/6.0

Crush Resistance Long/short (N/100mm): 100/500

Bending Radius Dynamic/static(mm): 60/30

Note: This specification provides a normative reference. Adjustable outer diameter to suit your budget.Contact us ASAP.

■ Delivery Length:

Standard length:2000m;Other length availabe
