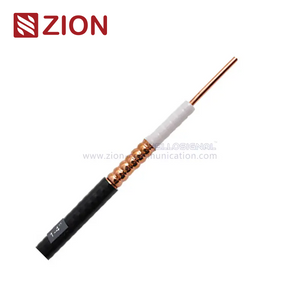

1/4" Helical Corrugated Copper Tube RF 50 ohm coaxial cabl(No. 7101101)

■ Construction Parameters：

· Inner Conductor

· Material: Copper Clad Aluminum Wire

· Diameter: 1.90±0.03mm

· Insulation

· Material: Foamed PE

· Diameter: 4.85±0.15mm

· Outer Conductor

· Material: Helical Corrugated Copper Tube

· Diameter: 6.40±0.15mm

· Jacket

· Material: PE or LSZH

· Diameter: 7.50±0.20mm

■ Description：

· SKU: 7101101-PEBK-500M

· Description: 1/4" Super Flexible RF Coax Cable PE Black Jacket (CPR Fca) 500M

· SKU: 7101101-OEBK-500M

· Description: 1/4" Super Flexible RF Coax Cable LSZH Black Jacket (CPR Eca) 500M

· Custom SKU: 7101101-××××-×××M

· Description: ××××-×××M will be named by Test inquired and Packing Length

■ Marking on Cable Jacket：

· ZION 1/4" Super Flexible RF COAXIAL CABLE 7101101-××××-×××M

■ Characteristics：

· Capacitance: 78 pF/m

· Impedance: 50 ±1 Ω

· Velocity of Propagation: 0.85

· Peak Power Rating: 7.5 KW

· Max. Operating Frequency: 19 GHz

· Insulation Resistance: >10000 MΩ.km

· DC Breakdown Voltage: 2000 V

· Jacket Spark Test Voltage: 3000 Vrms

· Inner Conductor DC Resistance: ≤ 10.20 Ω/km

· Outer Conductor DC Resistance: ≤ 7.45 Ω/km

· Shielding Attenuation: ≥120dB

· VSWR:

· 30MHz-2700MHz: ≤ 1.15

· 3300MHz-4200MHz: ≤ 1.15

· 4400MHz-5000MHz: ≤ 1.20

· 5000MHz-6000MHz: ≤ 1.30

· PIM (Intermodulation, 3rd order, 2*20W): ≤ -158 dBc

■ Mechanical Properties：

· Bending Radius (Single Bend): 15 mm

· Bending Radius (Repeated Bend): 25 mm

· Bending Moment: 0.7 Nm

· Flat Plate Crush Strength: 18 N/mm

· Tensile Strength: 600 N

■ Environmental Specifications：

· Installation Temperature:

· PE Jacket: -40℃ to +60 ℃

· LSZH Jacket: -20℃ to +60 ℃

· Operating Temperature:

· PE Jacket: -55℃ to +85 ℃

· LSZH Jacket: -30℃ to +80 ℃

· Storage Temperature:

· PE Jacket: -70℃ to +85 ℃

· LSZH Jacket: -30℃ to +80 ℃

■ Attenuation (20℃)：

· Frequency (MHz) / Attenuation (dB/100m) / Average Power (KW)

· 200 MHz: 8.33 dB/100m, 0.79 KW

· 450 MHz: 12.7 dB/100m, 0.52 KW

· 800 MHz: 17.3 dB/100m, 0.38 KW

· 900 MHz: 18.4 dB/100m, 0.36 KW

· 1800 MHz: 26.9 dB/100m, 0.25 KW

· 2000 MHz: 28.5 dB/100m, 0.23 KW

· 2200 MHz: 30.1 dB/100m, 0.22 KW

· 2400 MHz: 31.6 dB/100m, 0.21 KW

· 2500 MHz: 32.4 dB/100m, 0.21 KW

· 2700 MHz: 33.6 dB/100m, 0.20 KW

· 3400 MHz: 38.4 dB/100m, 0.17 KW

· 4000 MHz: 42.2 dB/100m, 0.16 KW

· 5000 MHz: 48 dB/100m, 0.14 KW

· 6000 MHz: 53.4 dB/100m, 0.12 KW

■ Standards：

· Fire Resistant:

· Standards: IEC 60754-1, IEC 60754-2, IEC 60332-1, IEC 60332-2, IEC 61034-1, IEC 60332-3-24

· RoHS: Compliant RoHS 2011/65/EU

· REACH: Compliant

· CPR: CPR EURO Level: Fca, Eca

■ Packing：

· Length: 500M (Standard)

· Description: 1/4" Super Flexible RF Coaxial Cable NO.7101101
