NO.7111557 4C×18AWG+3P×22AWG+2C×22AWG+4C×22AWG Access Control unshielded Cable all in one jacket Plenum

Cable construction :

Group

Door Strike

Card Reader

Door Contact

Request for Exit

Abbreviation

DRSTK

CDRD

CNT

REX

Jacket Color

ORANGE

WHITE

BLUE

GREEN

  Indiv. Jacket Part

7111517

7111518

7111519

7111520

  Indiv. Jacket Dia.

0.178"(4.50mm) nom

0.200"(5.08mm) nom

0.120"(3.04mm) nom

0.140"(3.55mm)nom

Conductor

18AWG 7/26
STR BC

22AWG 7/30
STR BC

22AWG 7/30
STR BC

22AWG 7/30
STR BC

Construction

4/C

3P

2/C

4/C

Insulation

PVC-Plenum

PVC-Plenum

PVC-Plenum

PVC-Plenum

Insulation Diameter

0.060"(1.53mm)nom.

0.043"(1.09mm)nom.

0.043"(1.09mm)nom.

0.043"(1.09mm)nom.

Insulation Colors

Blk, Red,
Wht, Grn

Blk,Red,Ylw,
Grn,Brn,Blu

Blk, Red

Blk, Red,
Wht, Grn

Shield

none

0.001"Al/Mylar

none

none

Drain Wire

none

22AWG 7/30 TC

none

none

Overall Diameter

0.350"(8.89mm)nom

Overall Jacket

PVC-Plenum

Electrical Properties :

UL Listing

(ETL) CMP, C(ETL)US FT6, (ETL) CL2P

Falme Rating

Plenum

RoHs Compliant

Yes

Temperature Rating

.-20℃ ~ +75℃

DC resistance
** ohms/1000'

Door Srike: 6.5

Card Reader: 16.5

Door Contact: 16.5

Request for Exit: 16.5

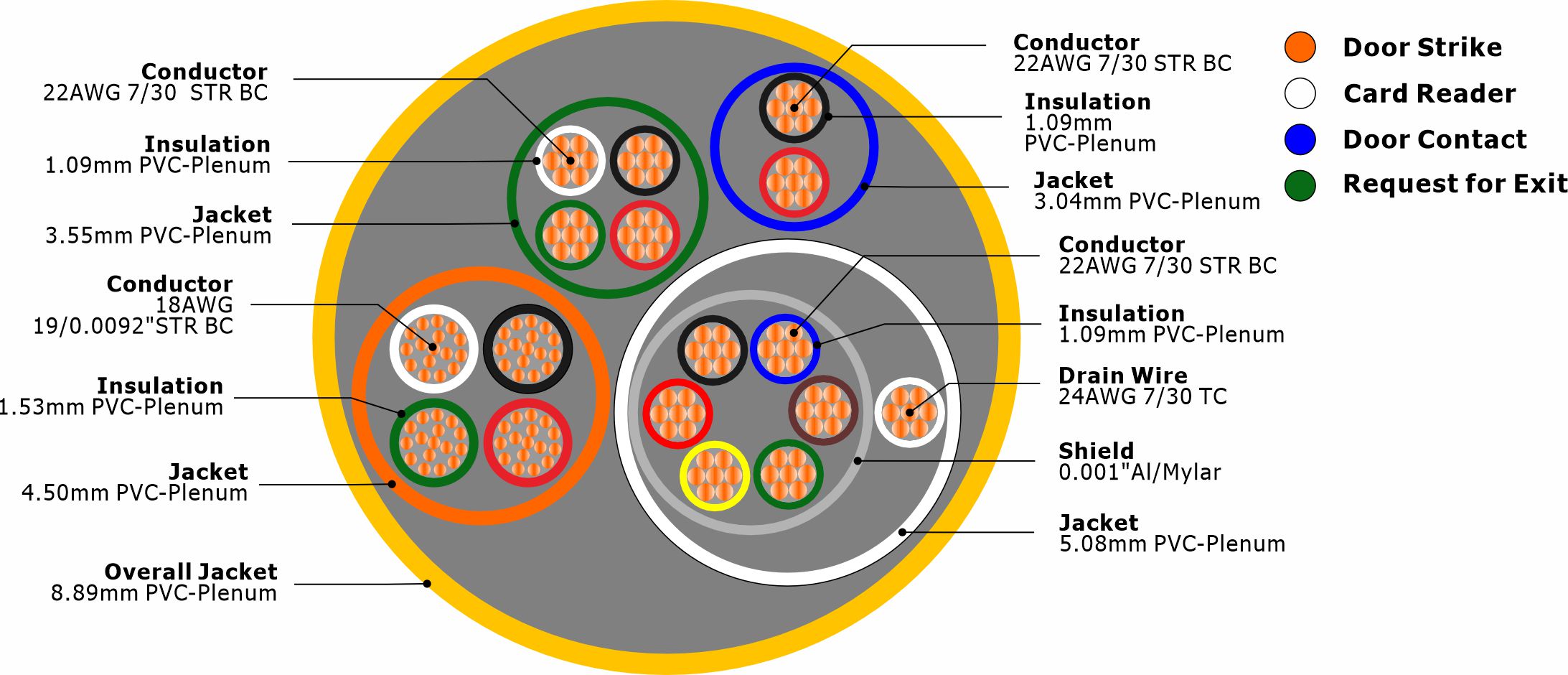

Cross Section :

Order Informations :

Print Legend

HELLOSIGNAL NO.7111517 ACCESS CONTROL DOOR STRIKE
18AWG 4C STR UNSHIELDED CL2P OR CMP SUN RES(ROHS) ××××M/FT
DEVICE/ZONE A B C D E F 1 2 3 4 5 6 7 8 9

HELLOSIGNAL NO.7111518 ACCESS CONTROL CARD READER
22AWG 3P STR SHIELDED CL2P OR CMP SUN RES(ROHS) ××××M/FT
DEVICE/ZONE A B C D E F 1 2 3 4 5 6 7 8 9

HELLOSIGNAL NO.7111519 ACCESS CONTROL DOOR CONTACT
22AWG 2C STR UNSHIELDED CL2P OR CMP SUN RES(ROHS) ××××M/FT
DEVICE/ZONE  A B C D E F 1 2 3 4 5 6 7 8 9

HELLOSIGNAL NO.7111520 ACCESS CONTROL REQUEST FOR EXIT
22AWG 4C STR UNSHIELDED CL2P OR CMP SUN RES(ROHS) ××××M/FT
DEVICE/ZONE  A B C D E F 1 2 3 4 5 6 7 8 9

Package

Spool, Pallet

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL OR OEM
