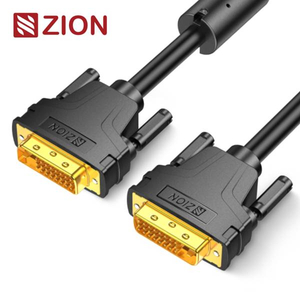

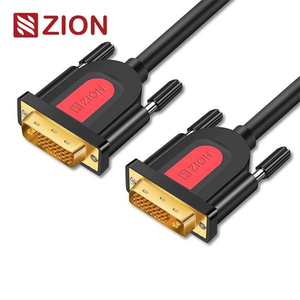

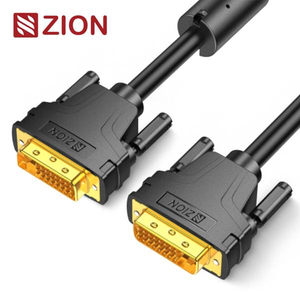

DVI cable
hellosignal
Specification
| Application | ||||||
| DVI is a popular video interface that can send digital or analog video between sources and displays. It is replacing VGA as the standard video connection between computers and monitors. There are several different versions of DVI, with differing compatibility. Increasingly popular on desktop computers, especially with add-on video cards. Video cards typically use the DVI-I variant, which can be easily converted to VGA or HDMI. Many LCD monitors now have both DVI-D (digital) and VGA monitor connections. Some older HDTV and HD players use the DVI connection. These are almost always DVI-D dual link connections, although only using single link (digital) video. | ||||||

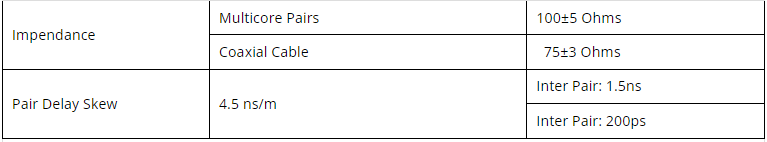

| Electrical Characteristics | ||||||
| Impendance | Multicore Pairs | 100±5 Ohms | ||||
| Coaxial Cable | 75±3 Ohms | |||||
| Pair Delay Skew | 4.5 ns/m | Inter Pair: 1.5ns | ||||
| Inter Pair: 200ps | ||||||

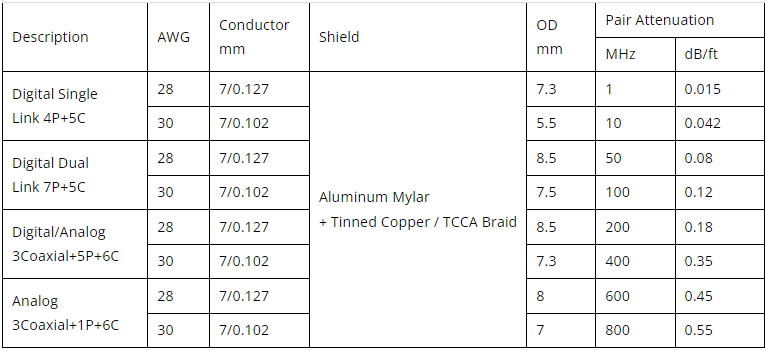

| Construction Parameters | ||||||
| Description | AWG | Conductor mm | Shield | OD mm | Pair Attenuation | |
| MHz | dB/ft | |||||
| Digital Single Link 4P+5C | 28 | 7/0.127 | Aluminum Mylar + Tinned Copper / TCCA Braid | 7.3 | 1 | 0.015 |
| 30 | 7/0.102 | 5.5 | 10 | 0.042 | ||
| Digital Dual Link 7P+5C | 28 | 7/0.127 | 8.5 | 50 | 0.08 | |
| 30 | 7/0.102 | 7.5 | 100 | 0.12 | ||
| Digital/Analog 3Coaxial+5P+6C | 28 | 7/0.127 | 8.5 | 200 | 0.18 | |
| 30 | 7/0.102 | 7.3 | 400 | 0.35 | ||
| Analog 3Coaxial+1P+6C | 28 | 7/0.127 | 8 | 600 | 0.45 | |
| 30 | 7/0.102 | 7 | 800 | 0.55 | ||
Production Process Flow
Accessory
| DVI cable Connector Types | ||||||

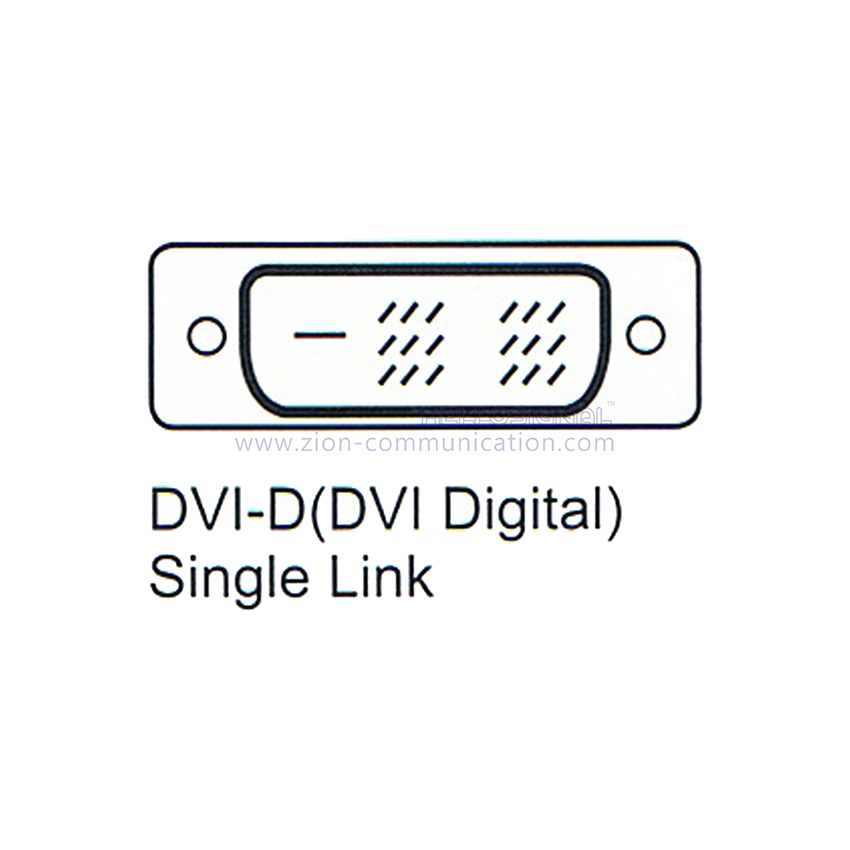

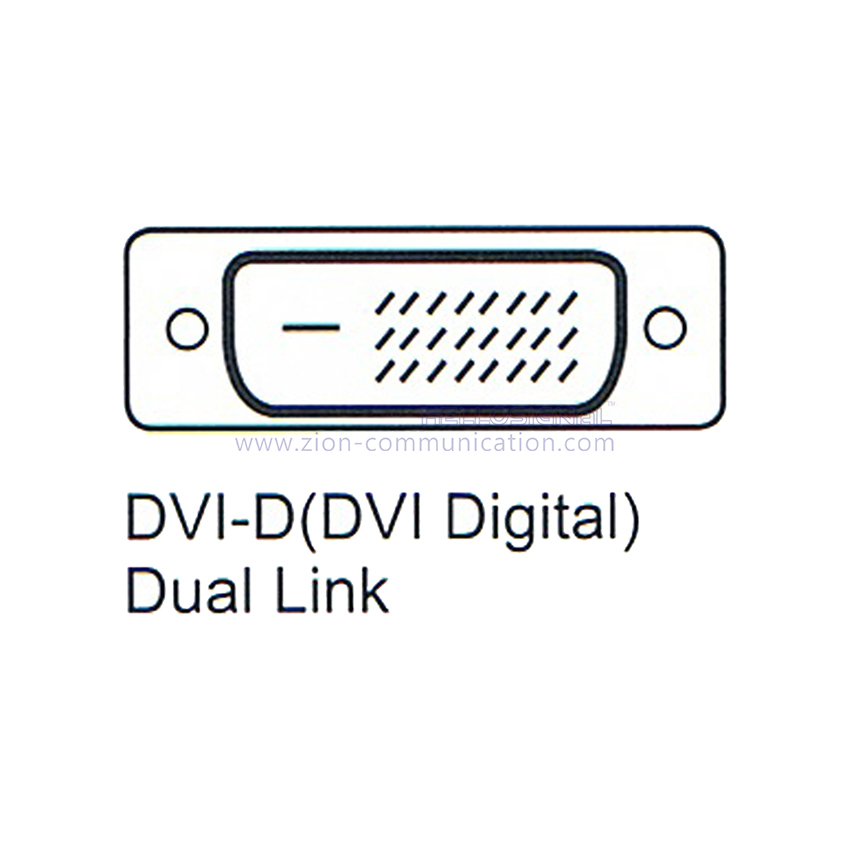

| DVI-D (digital only, single link or dual link) | ||||||

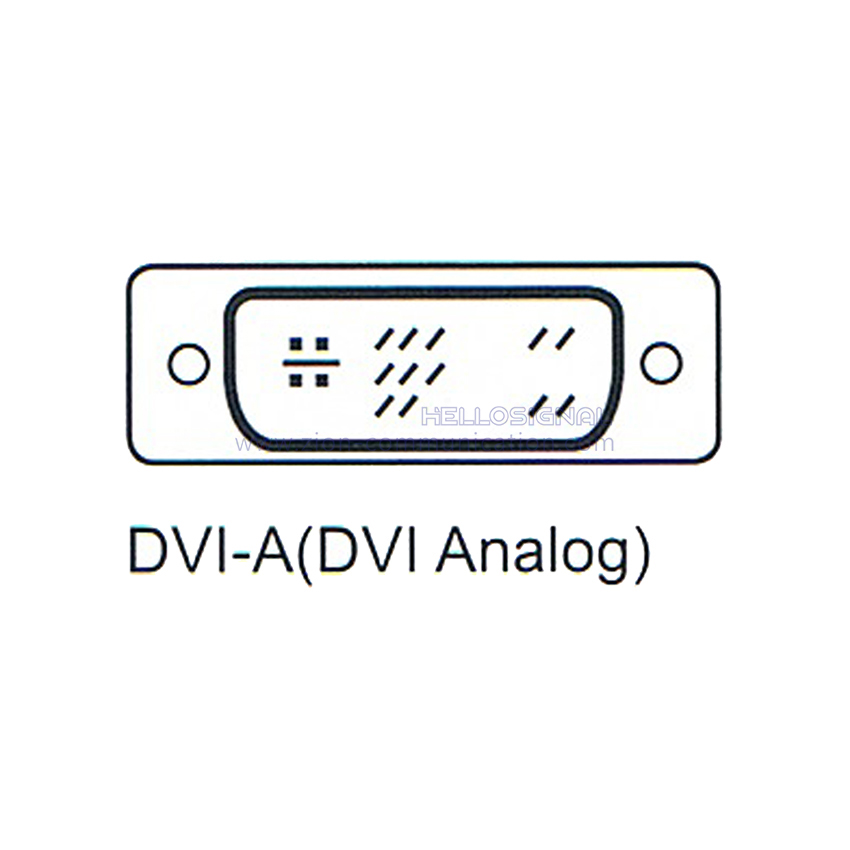

| DVI-A (analog only) | ||||||

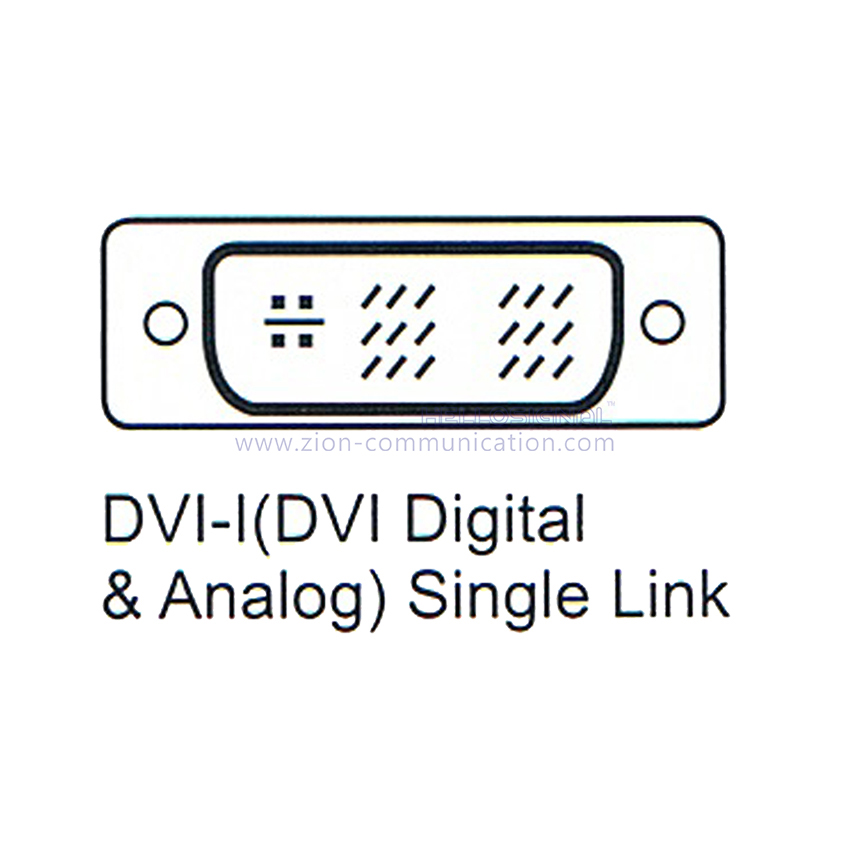

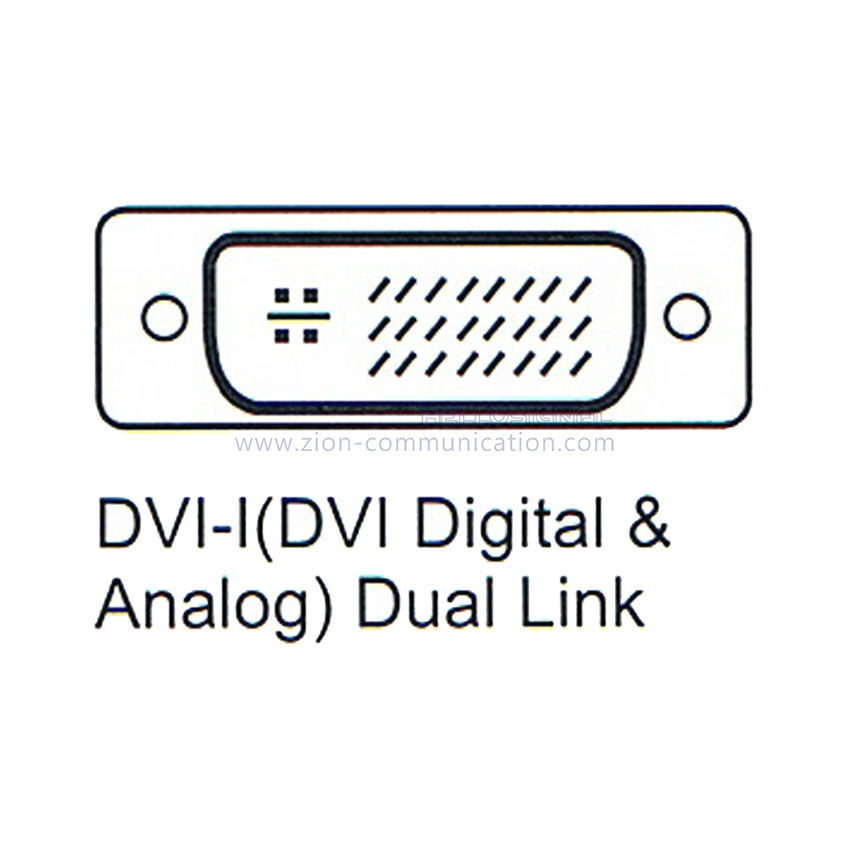

| DVI-I (integrated, combines digital and analog in the same connector; digital may be single or dual link) |
