Indoor Fiber cables 3.5mm spiral steel pipe armouring Low Smoke Zero Halogen Aramid Yarn cable fibra óptica

  • spiral steel pipe Indoor Fiber Optic Cables
  • N/M
  • N/M
  • Indoor Fiber Optic Cables
  • spiral steel pipe
  • ISO9001
  • 1km/Spool
  • Wooden Spool ,Φ380*380mm
  • 100km
  • 5-25 Days
  • NINGBO CHINA
  • 30%TT as deposit,70%Balance before shipping.

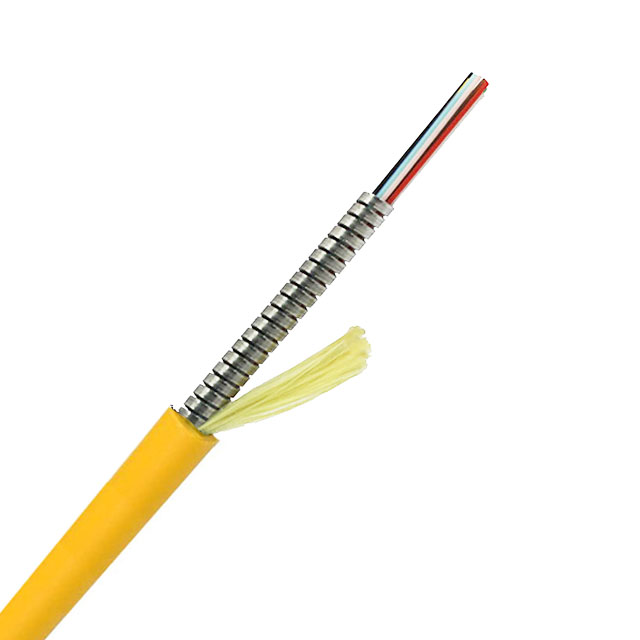

spiral steel cable photos

Product Director : James Xu

Email:  james@zion-communication.com


Characteristic: Indoor Fiber cables

Cable Type: Spiral steel pipe

Fiber Type: G.657.A1 / G.652.D
Jacket Material:
PVC/LSZH
Total Fiber Count: 1-12F
Subunit Type: Fibers

Environmental Space: For indoor cables

Armor: spiral steel pipe


Technical data:

Numbers of fibers: 1-12F

Fiber type: Single mode G.657.A1/OM1/OM2/OM3

Strength Member: Aramid Yard

Loose Tube:  No

Filler Rope:  No

Water Blocking Layer(Material): No

Additional Strength Member(Material):No

Outer Sheath:  Low smoke zero halogen (LSZH)

Cable Diameter(±0.2mm): 3.0-3.5mm

Cable Weight(±10.0kg/km): 35kg

Attenuation coefficient :  @ 1310nm≤0.35dB ;   @ 1550nm ≤0.2dB

Min. bending radius Without Tension: 10.0×Cable-φ

Min. bending radius Under Maximum Tension: 20.0×Cable-φ


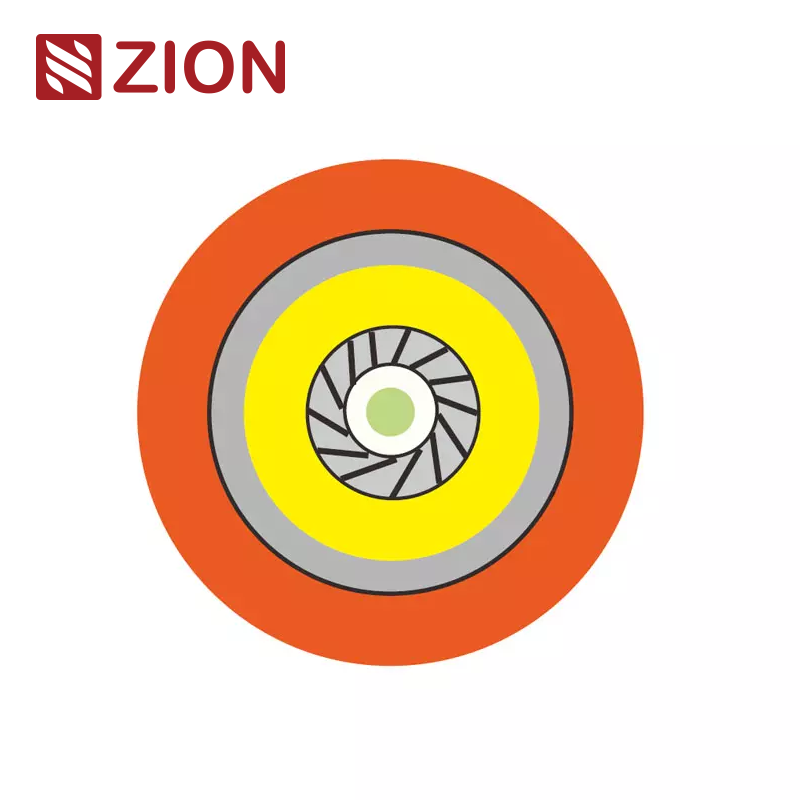

Description:

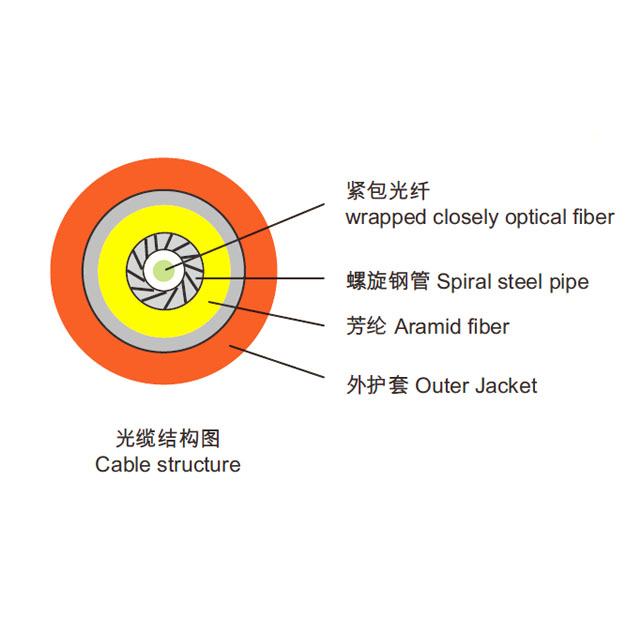

Armour single core and bi-core optical cable consist of stainless steel spiral pipe wrapped closely optical fiber, Kevlar and outer jacket. The optical cable possesses excellent mechanical characteristics and is easy to wiring and process further and is good transmission medium in telecommunication field. The product is widely used for national communication, broadcast and television system, building intelligence control, electric power control system, traffic communication system, Intracity networks and local area network.



Application:

▶ Oilfield, mining operation, radar, etc communication transmission

▶ Indoor level wiring, vertical wiring inside building

▶ Lay out directly optical cable along with indoor wall, ceil, interlayer and conduit connection

▶ Process armoured jumper

▶ Communication wiring of army field fight


Fibre Colors

No.

1

2

3

4

5

6

Color

Blue

Orange

Green

Brown

Gray

White

No.

7

8

9

10

11

12

Color

Red

Black

Yellow

Violet

Pink

Aqua


Jacket Colors

No.

1

2

3

4

5

6

Color






White

No.

7

8

9

10

11

12

Color


Black







Single mode optical fiber (ITU-T Rec. G.652.D)

Item

Specification

Fiber type

Single mode

Fiber material

Doped silica

Attenuation coefficient

@ 1310 nm

@ 1383 nm

@ 1550 nm

@ 1625 nm



£ 0.35 dB/km

£ 0.32 dB/km

£ 0.21 dB/km

£ 0.24 dB/km

Point discontinuity

£ 0.05 dB

Cable cut-off wavelength

£ 1260 nm

Zero-dispersion wavelength

1300 ~ 1324 nm

Zero-dispersion slope

£ 0.092 ps/(nm2.km)

Chromatic dispersion

@ 1288 ~ 1339 nm

@ 1271 ~ 1360 nm

@ 1550 nm

@ 1625 nm

£3.5 ps/(nm. km)

£5.3 ps/(nm. km)

£18 ps/(nm. km)

£22 ps/(nm. km)

PMDQ (Quadrature average*)

£0.2 ps/km1/2

Mode field diameter @ 1310 nm

9.2±0.4 um

Core / Clad concentricity error

£ 0.5 um

Cladding diameter

125.0 ± 0.7 um

Cladding non-circularity

£1.0%

Primary coating diameter

245 ± 10 um

Proof test level

100 kpsi (=0.69 Gpa), 1%

Temperature dependence

0oC~ +70oC @ 1310 & 1550nm

£ 0.1 dB/km
