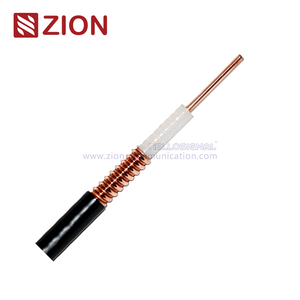

Outline of 3/8" RF Coaxial Cable (No. 7101104)

■ Construction Parameters：

· Inner Conductor

· Material: Copper Clad Aluminum Wire

· Diameter: 3.10±0.03mm

· Insulation

· Material: Foamed PE

· Diameter: 8.00±0.20mm

· Outer Conductor

· Material: Annular Corrugated Copper Tube

· Diameter: 9.50±0.25mm

· Jacket

· Material: PE or LSZH

· Diameter: 11.20±0.20mm

■ Characteristics：

· Capacitance: 78 pF/m

· Impedance: 50 ±1 Ω

· Velocity of Propagation: 0.85

· Peak Power Rating: 12.8 KW

· Maximum Operating Frequency: 15.1 GHz

· Insulation Resistance: >10000 MΩ.km

· DC Breakdown Voltage: 2500 V

· Jacket Spark Test Voltage: 3000 Vrms

· Inner Conductor DC Resistance: ≤ 3.95 Ω/km

· Outer Conductor DC Resistance: ≤ 5.30 Ω/km

· Shielding Attenuation: ≥120dB

· VSWR:

· 30MHz-2700MHz: ≤ 1.15

· 3300MHz-4200MHz: ≤ 1.20

· 4400MHz-5000MHz: ≤ 1.20

· PIM (Intermodulation, 3rd order, 2*20W): ≤ -158 dBc

■ Mechanical Properties：

· Bending Radius (Single Bend): 50 mm

· Bending Radius (Repeated Bend): 100 mm

· Bending Moment: 1.9 Nm

· Flat Plate Crush Strength: 14 N/mm

· Tensile Strength: 600 N

■ Environmental Specifications：

· Installation Temperature:

· PE Jacket: -40℃ to +60℃

· LSZH Jacket: -20℃ to +60℃

· Operating Temperature:

· PE Jacket: -55℃ to +85℃

· LSZH Jacket: -30℃ to +80℃

· Storage Temperature:

· PE Jacket: -70℃ to +85℃

· LSZH Jacket: -30℃ to +80℃

■ Attenuation (20℃)：

· 200 MHz: 4.9 dB/100m, Average Power: 1.48 KW

· 450 MHz: 7.45 dB/100m, Average Power: 0.98 KW

· 800 MHz: 10.1 dB/100m, Average Power: 0.72 KW

· 900 MHz: 10.7 dB/100m, Average Power: 0.68 KW

· 1800 MHz: 15.6 dB/100m, Average Power: 0.47 KW

· 2000 MHz: 16.5 dB/100m, Average Power: 0.44 KW

· 2200 MHz: 17.3 dB/100m, Average Power: 0.42 KW

· 2500 MHz: 18.7 dB/100m, Average Power: 0.39 KW

· 2700 MHz: 19.6 dB/100m, Average Power: 0.37 KW

· 3000 MHz: 20.5 dB/100m, Average Power: 0.35 KW

· 3400 MHz: 22.3 dB/100m, Average Power: 0.32 KW

· 4000 MHz: 24.1 dB/100m, Average Power: 0.30 KW

· 5000 MHz: 27.4 dB/100m, Average Power: 0.27 KW

· 6000 MHz: 30.3 dB/100m, Average Power: 0.24 KW

■ Standards：

· Fire Resistant: Compliant with IEC 60754-1, IEC 60754-2, IEC 60332-1, IEC 60332-2, IEC 61034-1, IEC 60332-3-24

· RoHS: Compliant with RoHS 2011/65/EU

· REACH: Compliant

· CPR: CPR EURO Level: Fca, Eca

■ Marking on Cable Jacket：

· Text: ZION 3/8" RF COAXIAL CABLE 7101104-××××-×××M

■ SKU Information：

· 7101104-PEBK-500M: 3/8" RF Coax Cable PE Black Jacket (CPR Fca) 500M

· 7101104-OEBK-500M: 3/8" RF Coax Cable LSZH Black Jacket (CPR Eca) 500M

· 7101104-××××-×××M: ××××-×××M will be named by Test inquired and Packing Length.

■ Packing：

· Packing Length: 500M (Standard)
