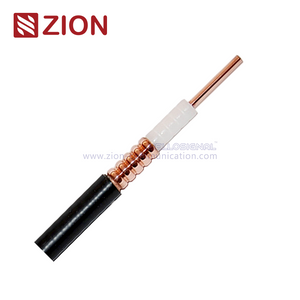

3/8" Super Flexible RF Coaxial Cable (No. 7101103)

■ Construction Parameters：

· Inner Conductor

· Material: Copper Clad Aluminum Wire

· Diameter: 2.60±0.03mm

· Insulation

· Material: Foamed PE

· Diameter: 7.00±0.20mm

· Outer Conductor

· Material: Helical Corrugated Copper Tube

· Diameter: 9.00±0.15mm

· Jacket

· Material: PE or LSZH

· Diameter: 10.30±0.20mm

■ Description：

· SKU: 7101103-PEBK-500M

· Description: 3/8" Super Flexible RF Coax Cable PE Black Jacket (CPR Fca) 500M

· SKU: 7101103-OEBK-500M

· Description: 3/8" Super Flexible RF Coax Cable LSZH Black Jacket (CPR Eca) 500M

· Custom SKU: 7101103-××××-×××M

· Description: ××××-×××M will be named by Test inquired and Packing Length

■ Marking on Cable Jacket：

· ZION 3/8" Super Flexible RF COAXIAL CABLE 7101103-××××-×××M

■ Characteristics：

· Capacitance: 83 pF/m

· Impedance: 50 ±1 Ω

· Velocity of Propagation: 0.81

· Peak Power Rating: 12 KW

· Max. Operating Frequency: 13.4 GHz

· Insulation Resistance: >10000 MΩ.km

· DC Breakdown Voltage: 2500 V

· Jacket Spark Test Voltage: 3000 Vrms

· Inner Conductor DC Resistance: ≤ 5.52 Ω/km

· Outer Conductor DC Resistance: ≤ 7.30 Ω/km

· Shielding Attenuation: ≥120dB

· VSWR:

· 30MHz-2700MHz: ≤ 1.15

· 3300MHz-4200MHz: ≤ 1.20

· 4400MHz-5000MHz: ≤ 1.25

· 5000MHz-6000MHz: ≤ 1.35

· PIM (Intermodulation, 3rd order, 2*20W): ≤ - 158 dBc

■ Mechanical Properties：

· Bending Radius (Single Bend): 25 mm

· Bending Radius (Repeated Bend): 32 mm

· Bending Moment: 1.4 Nm

· Flat Plate Crush Strength: 15 N/mm

· Tensile Strength: 600 N

■ Environmental Specifications：

· Installation Temperature:

· PE Jacket: -40℃ to +60 ℃

· LSZH Jacket: -20℃ to +60 ℃

· Operating Temperature:

· PE Jacket: -55℃ to +85 ℃

· LSZH Jacket: -30℃ to +80 ℃

· Storage Temperature:

· PE Jacket: -70℃ to +85 ℃

· LSZH Jacket: -30℃ to +80 ℃

■ Attenuation (20℃)：

· 200 MHz: 6.03 dB/100m, 1.31 KW

· 450 MHz: 9.22 dB/100m, 0.86 KW

· 800 MHz: 12.5 dB/100m, 0.63 KW

· 900 MHz: 13.3 dB/100m, 0.59 KW

· 1800 MHz: 19.4 dB/100m, 0.41 KW

· 2000 MHz: 20.6 dB/100m, 0.38 KW

· 2200 MHz: 21.7 dB/100m, 0.36 KW

· 2500 MHz: 23.8 dB/100m, 0.35 KW

· 2700 MHz: 24 dB/100m, 0.33 KW

· 3000 MHz: 25.8 dB/100m, 0.31 KW

· 3400 MHz: 27.7 dB/100m, 0.28 KW

· 4000 MHz: 30.4 dB/100m, 0.26 KW

· 5000 MHz: 38.31 dB/100m, 0.23 KW

· 6000 MHz: 43.9 dB/100m, 0.21 KW

■ Standards：

· Fire Resistant:

· IEC 60754-1, -2

· IEC 60332-1, -2

· IEC 61034-1, -2

· IEC 60332-3-24

· RoHS: Compliant RoHS 2011/65/EU

· REACH: Compliant

· CPR: CPR EURO Level: Fca, Eca

■ Packing：

·Length: 500M (Standard)
