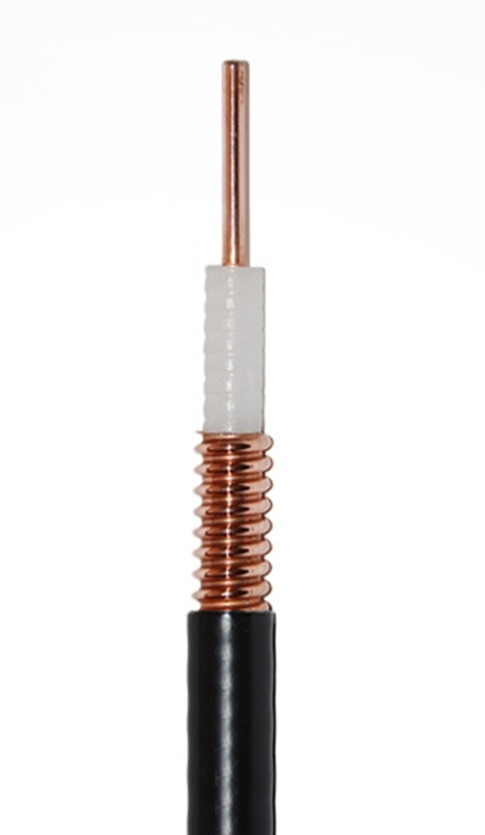

1/2" Super Flexible RF Coaxial Cable

■ Construction Parameters：

· Inner Conductor

· Material: Copper Clad Aluminum Wire

· Diameter: 3.58 ± 0.03 mm

· Insulation

· Material: Foamed PE

· Diameter: 9.90 ± 0.20 mm

· Outer Conductor

· Material: Helical Corrugated Copper Tube

· Diameter: 12.00 ± 0.20 mm

· Jacket

· Material: PE or LSZH

· Diameter: 13.30 ± 0.20 mm

■ SKU Information：

· SKU: 7101105-PEBK-500M

· Description: 1/2" Super Flexible RF Coax Cable PE Black Jacket (CPR Fca) 500M

· SKU: 7101105-OEBK-500M

· Description: 1/2" Super Flexible RF Coax Cable LSZH Black Jacket (CPR Eca) 500M

· SKU: 7101105-OB2BK-500M

· Description: 1/2" Super Flexible RF Coax Cable LSZH Black Jacket (CPR B2ca-s1b,d0,a1) 500M

· SKU: 7101105-××××-×××M

· Description: ××××-×××M will be named by Test inquired and Packing Length.

■ Marking on Cable Jacket：

· ZION 1/2" Super Flexible RF COAXIAL CABLE 7101105-××××-×××M

■ Characteristics：

· Capacitance: 83 pF/m

· Impedance: 50 ± 1 Ω

· Velocity of Propagation: 0.81

· Peak Power Rating: 15.6 KW

· Max. Operating Frequency: 10.2 GHz

· Insulation Resistance: >10000 MΩ.km

· DC Breakdown Voltage: 2500 V

· Jacket Spark Test Voltage: 5000 Vrms

· Inner Conductor DC Resistance: ≤ 2.97 Ω/km

· Outer Conductor DC Resistance: ≥ 6.30 Ω/km

· Shielding Attenuation: ≥ 120 dB

· VSWR:

· 30 MHz - 2700 MHz: ≤ 1.15

· 3300 MHz - 4200 MHz: ≤ 1.15

· 4400 MHz - 5000 MHz: ≤ 1.20

· PIM:

· Intermodulation (3rd order, 2*20W): ≤ -160 dBc

■ Mechanical Properties：

· Bending Radius (Single Bend): 25 mm

· Bending Radius (Repeated Bend): 55 mm

· Bending Moment: 2.5 Nm

· Flat Plate Crush Strength: 15 N/mm

· Tensile Strength: 750 N

■ Environmental Specifications：

· Installation Temperature:

· PE Jacket: -40°C to +60°C

· LSZH Jacket: -20°C to +60°C

· Operating Temperature:

· PE Jacket: -55°C to +85°C

· LSZH Jacket: -30°C to +80°C

· Storage Temperature:

· PE Jacket: -70°C to +85°C

· LSZH Jacket: -30°C to +80°C

■ Attenuation (20℃)：

· Frequency (MHz) / Attenuation (dB/100m) / Average Power (KW)

· 200 MHz: 4.6 dB/100m, 1.53 KW

· 450 MHz: 7.04 dB/100m, 1.00 KW

· 800 MHz: 9.57 dB/100m, 0.74 KW

· 900 MHz: 10.2 dB/100m, 0.69 KW

· 1800 MHz: 14.9 dB/100m, 0.47 KW

· 2000 MHz: 15.8 dB/100m, 0.45 KW

· 2200 MHz: 16.7 dB/100m, 0.42 KW

· 2500 MHz: 17.9 dB/100m, 0.39 KW

· 2700 MHz: 18.8 dB/100m, 0.38 KW

· 3000 MHz: 19.9 dB/100m, 0.36 KW

· 3400 MHz: 21.4 dB/100m, 0.33 KW

· 4000 MHz: 23.5 dB/100m, 0.30 KW

· 5000 MHz: 26.8 dB/100m, 0.26 KW

· 6000 MHz: 29.8 dB/100m, 0.24 KW

■ Standards：

· Fire Resistant:

· IEC 60754-1, IEC 60754-2

· IEC 60332-1, IEC 60332-2

· IEC 61034-1, IEC 61034-2

· IEC 60332-3-24

· RoHS: Compliant RoHS 2011/65/EU

· REACH: Compliant

· CPR: CPR EURO Level: Fca, Eca, B2ca-s1b,d0,a1

■ Packing：

· Length: 500M (Standard)

1/2" Super Flexible RF Coaxial Cable  NO.7101105
Construction Parameters:
Inner Conductor			3.58±0.03mm Copper Clad Aluminum Wire
Insulation			9.0±0.20mm Foamed PE
Outer Conductor			12.0±0.20mm Helical Corrugated Copper Tube
Jacket			13.40±0.20mm PE, Black
Electrical Characteristics:
Capacitance			83 pF/m
Impedance			50 ±2 Ω
Velocity of Propagation			81%
Peak Power Rating			15.6 KW
Max. Operating Frequency			10.2 GHz
Insulation Resistantce			>10000 MΩ.km
DC Breakdown Voltage			2500 V
Jacket Spark Test Voltage			5000 Vrms
Inner Conductor DC Resistance			2.97  Ω/km
Outer Conductor DC Resistance			6.30  Ω/km
Shielding Attenuation			≥120dB
VSWR
30MHz-3000MHz			≤ 1.15
3000MHz-4000MHz			≤ 1.15
4000MHz-5000MHz			≤ 1.20
PIM
Intermodulation (3rd order,2*20W)			≤ - 160 dBc
Mechanical Properties:
Bending Radius (Single Bend)			25 mm
Bending Radius (Repeated Bend)			55 mm
Bending moment			2.5 Nm
Flat plate crush strength			12 N/mm
Tensile Strength			750 N
Mechanical Properties:
			PE Jacket			LSZH Jacket
Installation Temperature			-40℃ to +60 ℃			-20℃ to+60 ℃
Operating Temperature			-55℃ to +85 ℃			-30℃ to +80 ℃
Storage Temperature			-70℃ to +85 ℃			-30℃ to +80 ℃
Attenuation(20℃):
Frequency (MHZ)			Attenuation (dB/100m)			Average Power (KW)
200			4.60			1.53
450			7.04			1.00
800			9.57			0.74
900			10.20			0.69
1800			14.90			0.47
2000			15.80			0.45
2200			16.70			0.42
2500			17.90			0.39
2700			18.80			0.38
3000			19.90			0.36
3400			21.40			0.33
4000			23.50			0.30
5000			26.80			0.26
6000			29.80			0.24
Maximum attenuation value shall be 105% of the nominal attenuation value
Standards and Order Informations:
Fire Resistant			IEC 60754-1,-2; IEC 60332-1,-2; IEC 61034-1,-2; IEC 60332-3-24
RoHS			Compliant RoHS 2011/65/EU
Delivery time			Normally 25 days after received the deposit.
Marking			HELLOSIGNAL 1/2" Super Flexible RF COAXIAL CABLE ××× M
