Coaxial Cable
50 ohm
UL, ETL, CE,CPR, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
10KM
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

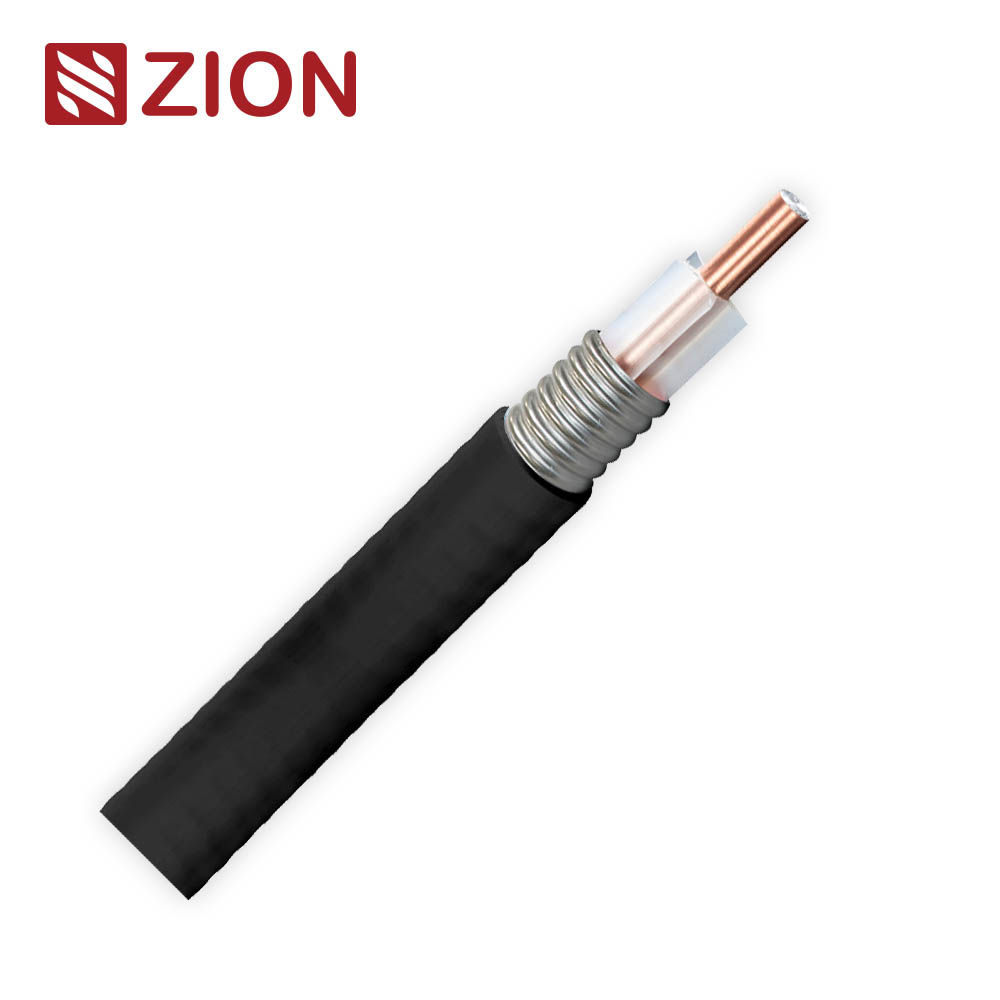

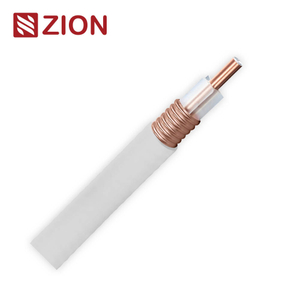

This 1/2" Aluminum Air Dielectric RF Coaxial Cable is engineered for high-efficiency RF transmission in Wireless Communication, TV & Radio Broadcast, HF Defense, Mobile Radio, Cable Solutions, and In-Building DAS systems.
Its precision-formed CCA conductor, corrugated copper outer conductor, and optimized dielectric deliver low attenuation and stable broadband performance up to 6 GHz.
| Component | Material / Specification |
|---|---|
| Inner conductor | Copper Clad Aluminum wire, Ø 4.75 ± 0.05 mm |
| Insulation | Extruded Polyethylene, Ø 11.80 ± 0.20 mm |
| Outer conductor | Corrugated Aluminum, Ø 13.80 ± 0.15 mm |
| Jacket | PVC, Color White, Ø 15.90 ± 0.20 mm |
| Parameter | Value |
|---|---|
| Impedance | 50 ± 2 Ω |
| Relative Velocity of Propagation | 0.88 |
| Capacitance | 75 pF/m |
| Maximum Operating Frequency | 6 GHz |
| Peak Power Rating | 40 kW |
| RF Peak Voltage | 2000 Volts |
| Jacket Spark Test Voltage | 8000 Vrms |
| Inner Conductor DC Resistance | ≤ 1.58 Ω/km |
| Outer Conductor DC Resistance | ≤ 2.29 Ω/km |
| Condition | Temperature Range |
|---|---|
| Installation | -20°C to +60°C |
| Operating | -40°C to +85°C |
| Storage | -40°C to +85°C |
| Parameter | Value |
|---|---|
| Tensile Strength | 549 N |
| Min. Bending Radius (single) | 76 mm |
| Min. Bending Radius (repeated) | 127 mm |
| Bending Moment | 5.4 N·m |
| Flat Plate Crush Strength | 12 N/mm |
Attenuation, VSWR: measured at ambient temperature 20°C, VSWR = 1.0
Average Power: measured at ambient temperature 40°C, VSWR = 1.0
Average Power (high-temp): Inner Conductor Temperature = 100°C
| Frequency Band | VSWR Max |
|---|---|
| 680 MHz – 960 MHz | ≤ 1.13 |
| 1390 MHz – 1450 MHz | ≤ 1.13 |
| 1700 MHz – 2200 MHz | ≤ 1.13 |
| 2300 MHz – 2700 MHz | ≤ 1.22 |
| 3550 MHz – 4200 MHz | ≤ 1.29 |
| 5150 MHz – 6000 MHz | ≤ 1.29 |
| Frequency (MHz) | Typical Attenuation (dB/100 m) | Average Power (kW) |
|---|---|---|
| 100 | 2.41 | 3.18 |
| 200 | 3.46 | 2.21 |
| 450 | 5.32 | 1.44 |
| 800 | 7.28 | 1.06 |
| 900 | 7.76 | 0.99 |
| 1500 | 10.3 | 0.75 |
| 1800 | 11.5 | 0.67 |
| 2000 | 12.2 | 0.63 |
| 2200 | 12.8 | 0.61 |
| 2400 | 13.5 | 0.57 |
| 2500 | 13.8 | 0.56 |
| 2700 | 14.5 | 0.54 |
| 3500 | 16.9 | 0.46 |
| 4000 | 18.3 | 0.43 |
| 5000 | 20.9 | 0.38 |
| 6000 | 23.3 | 0.34 |
Packing: 500 m per reel
Reel Size: 75 × 53 × 75 cm
Cable complies with relevant international standards for RF coaxial transmission. Certification documentation available upon request.
| Part Number | Description |
|---|---|
| 7101117 | 1-2" Air Aluminum Dielectric PVC CM |
| 7101117R | 1-2" Air Aluminum Dielectric PVC CMR/FT4 |
| 7101117P | 1-2" Air Aluminum Dielectric PVC CMP/FT6 |
