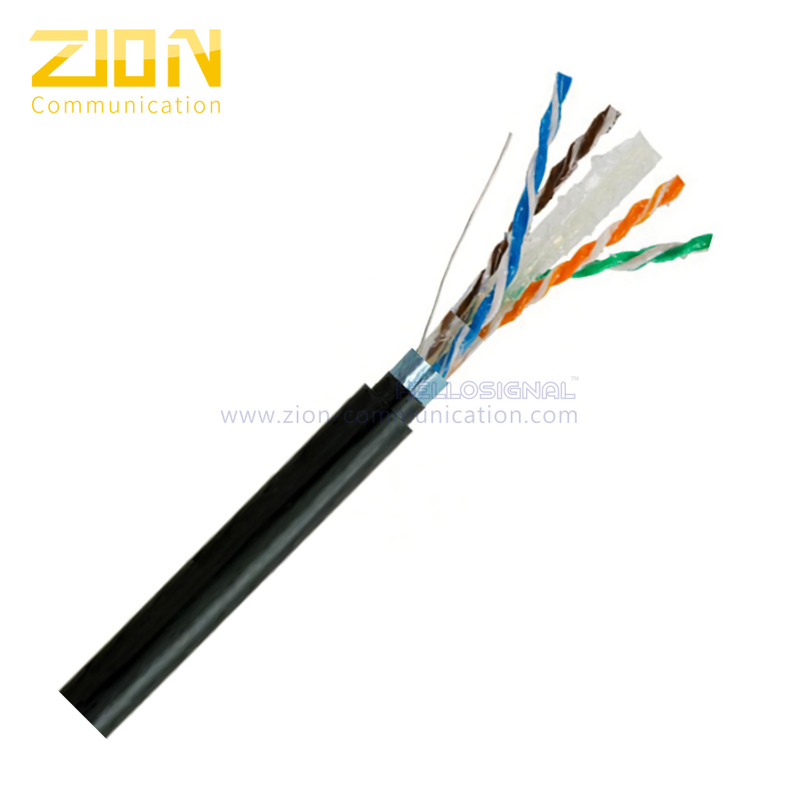

NO.7112317 F-UTP CAT 6A BC JELLY Double PE

Construction

Conductor:

0.565±0.005mm Solid Bare Copper

Pairs:

4 Pairs

Insulation:

1.14±0.05 mm HDPE

Insulation Colors:

Blue-White/Blue,Orange-White/Orange

Green-White/Green,Brown-White/Brown

Cross Section

Modified Polyethylene

Filling

Jelly

Shielded 1st

PET Foil

Drain Wire

0.40±0.005mm TC

Shielded 2nd

AL/PET  Foil

Rip Cord:

Cotton

Inner Jacket:

7.4±0.3 mm  PE

Shielded 3rd

PET Foil

Outer Jacket:

8.9±0.5 mm PE

Cross Section

COMPLIANCE （Reference Standard and Certificates)

· ISO/IEC 11801-1 Ed.1.0

· ANSI/TIA-568-C.2 、 ANSI/TIA-568.2-D

· UL444、UL1581、UL1666、IEC60332-1、EN50399

Application Support

· 10GBASE-T 、 1000BASE-T 、 100BASE-T 、 10BASE-T

· 1Volp、ISDN、 Token、 100MTPPDM、 Analogand Datavideo、 POE Type1,2,3,4

Electrical Characteristics

DC Resistance

＜9.38 Ohms/100m @20℃

DC Resistance unbalance

5% @ 20℃

Mutual Capacitance

5.1 nF/100m

Characteristic Impedance

    1 - 100 MHz : 100±15 Ohms

100 - 200 MHz : 100±22 Ohms

200 - 500 MHz : 100±32 Ohms

Max Frequency

500MHz

Capacitance Unbalance

330 pF/100m

NVP(传输速率）

66%

Delay Skew

≤ 45ns/100m

PHYSICAL PROPERTIES

Pulling Tension(Max)

≥13.5Mpa

Bend Radius(Min)

8×OD of Jacket

Operating Temperature

-20 to 60 ℃ （-4 to 140℉）

Performance Characteristics

Frequency

RL                     (Min.)

Insertion Loss(Max.)

Propagation Delay (Max.)

Delay Skew(Max.)

NEXT (Min.)

PSNEXT (Min.)

ELNEXT (Min.)

PSELNEXT (Min.)

MHz

dB

dB/100m

ns/100m

ns/100m

dB

dB

dB/100m

dB/100m

1

20.0

2.1

570.0

45.0

74.3

72.3

67.8

64.8

4

23.0

3.8

552.0

45.0

65.3

63.3

55.8

52.8

10

25.0

6.0

545.4

45.0

59.3

57.3

47.8

44.7

16

25.0

7.6

543.0

45.0

56.2

54.2

43.7

40.7

20

25.0

8.5

542.1

45.0

54.8

52.8

41.8

38.8

31.25

23.6

10.7

540.4

45.0

51.9

49.9

37.9

34.9

62.5

21.5

15.4

538.6

45.0

47.4

45.4

31.9

28.9

100

20.1

19.8

537.6

45.0

44.3

42.3

27.8

24.8

200

18.0

29.0

536.1

45.0

39.8

37.8

21.8

18.8

300

17.3

36.4

536.1

45.0

37.1

35.1

18.3

15.3

400

17.3

43.0

535.8

45.0

35.3

33.3

15.8

12.8

500

17.3

45.3

535.6

45.0

33.8

31.8

13.8

10.8

※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.

Order Informations

Marking

HELLOSIGNAL NO.7112317 F/UTP CAT6A 4PR 23AWG BC Jelly Double PE...500M

Inner Package

500m/Wooden Spool

Outer Package

Carton on Pallet

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
