Outdoor Ethernet Connector Guide: Choose the Right IP67 RJ45

■ How to Identify the Right Connector for Outdoor Ethernet Cable

Are you running Ethernet cables outdoors? Don’t just connect the cable. Pick the right connector for your outdoor network—because peeling, corrosion, or soaked jacks will ruin your run before the first rainstorm.

This guide is for IT professionals, network installers, and facility managers who need the right outdoor Ethernet connector. We’ll cover standards, field data, and safety tips that matter.

■ Why Are Outdoor Connectors Different?

Indoor Ethernet connectors—mainly RJ45—aren’t built for rain, UV rays, or temperature swings. Study after study shows that inadequate cabling and connectors cause up to 68% of outdoor network failures (TIA, 2023).

An outdoor connector today has to:

• Seal from water, dust, and particles (IP67+)

• Resist UV radiation

• Maintain cable category integrity (Cat 5e, Cat 6, Cat 6a)

• Withstand from -40°C to +75°C (-40°F to +167°F)

■ Step 1: Select the Connector Matching Your Cable Category

Starting with the Ethernet cable, identify if its category is Cat 5e, Cat 6, or Cat 6a. This determines the connector category size and quality needed.

Why it matters: If you use a Cat 6a cable with RJ45 Cat 5e connectors, you’ll only get Cat 5e speed—doomed at 1 Gbps.

Bottom line: The weakest link in your network chain (connector or cable) caps its speed.

Here's a quick rundown of connectors per cable type:

Cable Type vs. Connector Requirement

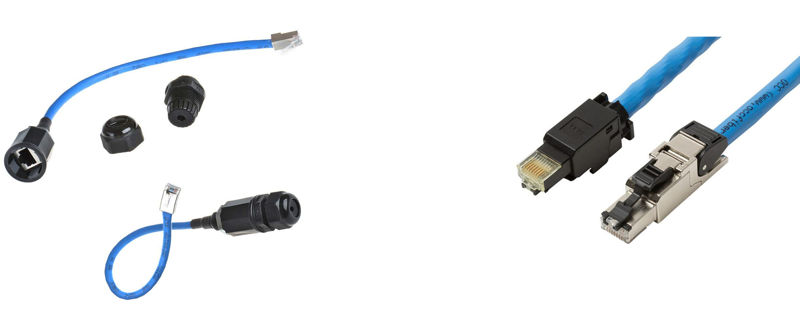

■ Step 2: Choose Connector Type

Here’s the roof over your cable’s head:

IP67-rated RJ45 Connectors

• Foam gaskets and stainless steel clamping

• Compatible with Cat 6a

• Good for temporary or exposed run ends

• Cheaper: around $8–15 each

Field-Terminable Connectors (FTE)

• Crimp and complete on-site installation

• Detach time-saving in large segments

• Should have gel sealing and heat shrink boots

• Popular brands: Panduit FTE, Leviton FieldMate, Siemon Z-MAX® FieldTerm Connectors

Pre-Terminated Outdoor Assemblies

• Factory-tested and sealed, marked for position (A/B)

• Appropriate for permanent outdoor installations

• Cost-effective long-term

• Warranty-backed, with 10+ year durability

■ Step 3: Pinpoint Environmental Protection

Humidity means water intrusion, destroying Ethernet signals. A 2022 study by Belden showed untested connectors failed 3.2x more often in such climates.

What to check for:

• IP67 or IP68 certification: Complete dust and water-proofing

• Enclosed, gel-filled boots: Encasing the termination and wire entry to prevent leaks

• UV resistance: Preventing cracks in plastics due to sun exposure and heat

• Cable clamps and strain relief: To stop cable movement stress inside the connector

■ Step 4: Match Installation Methods for Maintenance

Ask:

• Is the connector buried, aerial, or surface-mounted?

• Will I need quick tool-free access for troubleshooting?

Example:

• An aerial connection benefits from strain-relief boots.

• Direct burial calls for gel-filled, armored assemblies.

• High-vibration areas near machinery demand kayak-lock types.

■ Step 5: Weigh Cost vs. Downtime Risk

Yes, outdoor connectors cost more upfront.

But:

■ FAQ

Q1: Can I use indoor RJ45 connectors outdoor with some electrical tape?

A: No! Tape decays and splits under sun and temperature swings.

Q2: Are all waterproof connectors the same?

A: No! Waterproof means different in the connector industry. Look for IP67 or NEMA 6+ certification.

Q3: How do I test a connector after installation?

A: Use a network cable tester (like Fluke DSX-5000) for insertion loss, crosstalk (NEXT), and shield integrity.

Q4: Can I splice outdoor Ethernet cables?

A: It’s possible, but avoid if you can. Use IP67-rated splice enclosures with gel-sealed splice kits.

Q5: Does my outdoor connector support Power over Ethernet (PoE)?

A: Check if it’s tested for powered cable operation. Plastic insulators under PoE++ load can heat up and fail.

■ Checklist: Choosing the Right Outdoor Ethernet Connector

Review:

• Ensures cable category compatibility

• Has IP rating of 67 or higher

• UV resistance and temperature range compliance

• Supports your PoE requirements

• Is from a reputable vendor (TIA/ISO compliance)

• Provides strain relief and physical protection

■ Conclusion: Build Your Network for the Long Run

Outdoor Ethernet connectors are the marriage of hardware and environment.

Choose and protect cables well, or your network is doomed. Invest in connectors that work—because your signal’s integrity depends on them.
