A complete passive schedule normally covers feeder and distribution cable, splice closures, PLC splitters, access terminals, drop cable, connectors, installation hardware and restoration spares. It should also keep active equipment, civil works and project compliance responsibilities clearly separated.
NTIA's June 2025 restructuring restored a technology-neutral approach to BEAD project selection. A fiber BOM therefore begins with the controlling award terms, state or territory process and approved project scope. Review the NTIA BEAD Restructuring Policy Notice when confirming the current program framework.
Start with four schedules, not one shopping list
Combining every quantity in one sheet hides the different events that create demand. A better rural fiber BOM separates four schedules.
| Schedule | What it supports | Typical material groups |
|---|---|---|
| Passings plant | Builds shared infrastructure to the approved service area | Feeder and distribution cable, closures, splitters, cabinets and terminals |
| Subscriber activation | Connects a customer from the terminal to the premises | Drop cable, connectors, house attachment, entry protection, outlet and patch lead |
| Installation consumables | Supports field construction and testing | Splice sleeves, seals, labels, cleaning materials and route-specific hardware |
| Restoration stock | Restores damaged or failed infrastructure | Compatible cable, closures, terminals, splitters, drop assemblies and re-entry parts |
This separation prevents two expensive mistakes. Shared outside plant should not be sized only from the expected first-year take rate. Conversely, a complete drop kit should not automatically be purchased for every passing before the activation forecast, route method and drop length are known.
Freeze the inputs that control the BOM
The material schedule should follow an approved architecture and a traceable route design. Keep route length, locations passed, connection-ready ports and subscribers connected visible throughout the process because they do not drive the same products.
| Project input | Why it matters to the BOM |
|---|---|
| Approved service locations | Controls coverage, splitter outputs and connection-ready ports |
| Feeder, distribution and drop routes | Controls cable construction, footage, slack and reel allocation |
| Aerial, duct and direct-buried sections | Changes cable type, hardware and installation kits |
| Approved PON platform | Controls optical budget, split strategy and interfaces |
| Centralized or distributed splitting | Changes feeder fibers, splitter locations, closures and troubleshooting points |
| Fiber count by segment | Controls cables, trays, ODF capacity and branch allocation |
| Terminal locations and usable ports | Connects GIS clustering to field-service capacity |
| Initial activation forecast | Controls the first release of drop and premises kits |
| Drop-length distribution | Controls pre-terminated length bands or field-cut stock |
| Environmental and owner requirements | Controls sheath, armor, tensile rating, clamps and brackets |
| Restoration target and depot plan | Controls repair lengths, spare families and storage locations |
| Contract and BABA requirements | Controls product classification and supporting records |

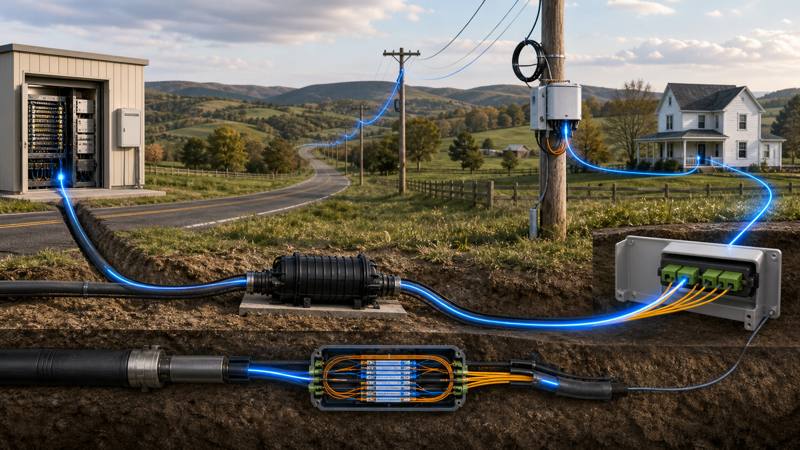

Master BOM from feeder to rural drop
The following table provides a procurement framework. Final construction, fiber count, performance and quantities must come from the project design.
| Network layer | Typical BOM lines | Primary sizing basis | Interface checks |
|---|---|---|---|
| Feeder | OSP cable, ODF, pigtails, splice accessories | Engineered route, fiber allocation, slack and reel plan | Fiber type, cable diameter, closure entry, ODF and active-side handoff |
| Distribution | Branch cable, distribution cable, access splice materials | Terminal zones, branch plan and route sections | Mid-span access, fiber allocation, closure and terminal feed |
| Closures | Inline, branch and mid-span closures, trays, seals and mounts | Reel joints, branches, transitions and access points | Cable ports, diameter range, tray layout, grounding and re-entry |
| Splitters | PLC modules, cassettes or tray assemblies | Approved PON topology, usable outputs and optical budget | Ratio, package, connector, pigtail length and enclosure fit |
| Terminals | Hardened multiport terminals, FATs, NAPs and stub cable | Service-location clusters and usable ports | Input method, service-port interface, mounting and drop compatibility |
| Drop | Aerial, duct, buried or pre-terminated drop cable | Activation forecast and surveyed length bands | Span, crush, bend, entry rating and terminal/premises connectors |
| Connectivity | Adapters, pigtails, patch cords and field connectors | Every defined optical interface | Connector family, polish, loss, return loss and end-face control |
| Installation hardware | Clamps, brackets, duct seals, storage and markers | Pole-by-pole or structure-by-structure takeoff | Cable OD, load, mounting surface and owner standard |
| Maintenance spares | Cable, closures, terminals, splitters, drops, seals and hardware | Failure scenario, lead time, installed base and restoration SLA | Exact compatibility, traceability and storage condition |
Feeder cable: preserve route capacity and control the reel plan
The feeder connects the OLT-side hub, central office, hut or aggregation point to the primary distribution area. It should be sized from the architecture and route plan, not just from the number of active customers on day one.
Define the fiber standard and count; duct, ADSS, lashed aerial, direct-buried or armored construction by route section; pulling and long-term tensile requirements; crush, moisture, UV, rodent and temperature exposure; cable diameter, bend radius, reel length, sequential marking and factory records. ZION's verified optical fiber cable portfolio can be reviewed by route method after these fields are available.
Round the result to a standard cable count only after the allocation has been reviewed. Cable footage should come from measured alignment rather than road mileage. Add approved allowances for pole risers, handhole routing, closure slack, mid-span access, building entry and terrain, then map each reel to a route section and joint location.
Distribution cable: follow the branch and terminal map
Distribution cable carries splitter outputs—or unsplit feeder fibers in the selected architecture—toward rural access terminals. Its count may step down as branches leave the main route.
Record the from/to nodes, route method, surveyed and design footage, fiber allocation and planned reel.
Identify mid-span or cut-splice points and confirm that the selected cable and closure support the field method.
Separate service, express, growth and spare fibers so each branch remains traceable.
Define the factory and post-install records required for every installed segment.
If the route uses mid-span access, both the cable and closure must support the planned buffer-tube exposure, express-fiber storage and branch arrangement.

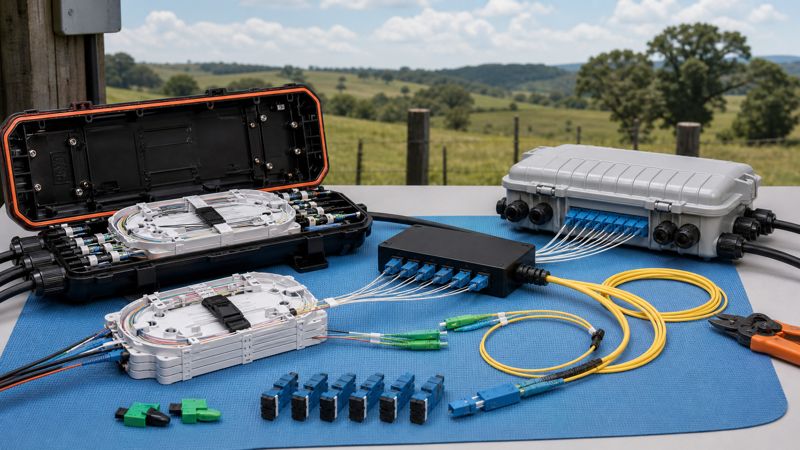

Closures: count functions and interfaces, not route miles
A splice closure is a configured interface system. The line item may require the enclosure, cable seals, splice trays, branch kits, transport tubes, strength-member clamps, grounding parts, port plugs, mounting brackets and re-entry consumables.
Check closure capacity by the number and type of cable entries, cable-diameter range, fiber and express-buffer storage, and splice-tray or splitter capacity. Count units from planned reel joints, branch points, cable transitions, terminal-feed joints and engineered restoration points.
PLC splitters: tie each module to a port map and loss budget
Centralized and cascaded splitting create different BOMs. Centralized splitting can simplify splitter inventory and port mapping but may require more distribution fibers. Cascaded splitting can reduce fiber demand on some branches while adding splitter loss, field interfaces and troubleshooting points.
Specify total split ratio, stages, maximum guaranteed insertion loss, connectorized or splice-only interfaces, connector polish, package, pigtail length, port identification and enclosure compatibility. ZION's PON splitter loss calculator can help structure an early passive-loss check, while the final calculation must use approved system and product data.
GPON physical-layer requirements are defined in ITU-T G.984.2, while XGS-PON is covered by ITU-T G.9807.1. Use the applicable system specification and approved equipment data rather than a generic split-ratio rule.
Terminals: convert service locations into usable field ports
The terminal is the operational boundary between shared distribution plant and the subscriber drop. Its location should follow GIS clustering, practical drop reach and technician access—not port arithmetic alone.
- Confirm usable service-port count and input method.
- Match hardened or standard adapters and connector polish.
- Define pole, strand, wall, pedestal or handhole mounting.
- Review sealing, port caps, bend control, slack storage and numbering.
- Include replacement seals and installation hardware.
The usable-port factor should come from the actual clustering design. An open port is not useful when a road, clearance rule, terrain feature or excessive drop distance prevents it from serving the nearby location.
Drop cable and the complete premises kit
Rural drops are often the least standardized layer. One project can include short aerial spans, long driveways, existing ducts, road crossings, rocky soil and indoor transitions. ZION's FTTH/PON access network solution groups drop cable, pre-terminated assemblies, splitters, terminal boxes and patching products around the actual route and interface requirements.
| Installation condition | Product direction to evaluate | Critical checks |
|---|---|---|
| Short aerial span | Self-supporting flat or figure-8 drop | Rated span, sag, wind/ice, UV and clamp fit |
| Long aerial approach | Engineered round or messenger-supported drop | Tension, clearance and attachment design |
| Existing duct | Pullable round drop | OD, pulling tension, bend radius and duct fill |
| Direct burial | Armored or rugged toneable drop | Crush, moisture, rodents, locating and burial practice |
| Microduct | Blown micro drop | Cable OD, stiffness, blowing distance and microduct ID |
| Outdoor-to-indoor | Dual-rated cable or demarcation transition | Flame requirement, sealing and bend control |
ITU-T G.657 defines bend-insensitive single-mode fiber characteristics for access environments where space and handling create tighter bends. The selected category and complete cable construction still need to match the project specification.
A complete activation kit may also include terminal-side and premises connectors, dead-end clamps, hooks, downlead protection, conduit and entry fittings, an exterior demarcation box, indoor fiber, outlet, adapter, patch lead, labels and customer test records.
Do not multiply the average drop length by every passing unless the contract requires all drops to be installed during construction. Separate unusually long rural drops because they may require another construction, reel format or support method.
Connectors and adapters: control the interface end to end
SC/APC is common in PON passive networks, but the BOM must follow the actual ODF, splitter, terminal, drop and ONT-side design. Control connector family, polish, adapter, maximum insertion loss, minimum return loss, pigtail length, dust protection and hardened-interface compatibility.
APC and UPC connectors should not be mated. Color is a useful field cue, but technicians should verify the specified interface rather than relying on color alone. IEC 61300-3-35 covers visual inspection of fiber-optic connector interfaces and explains that inspection complements rather than replaces optical performance measurements. See IEC 61300-3-35:2022.

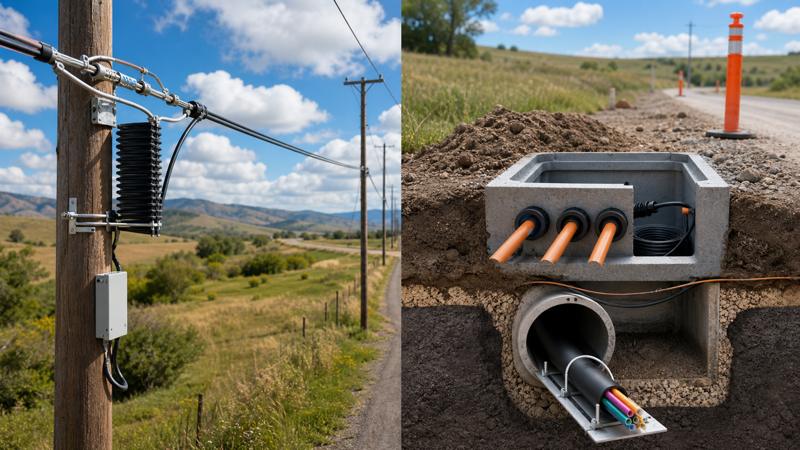

Installation hardware: build it from the route structure schedule
Installation hardware should come from a pole-by-pole or structure-by-structure takeoff. A single accessories allowance does not provide an installable package.
Aerial sections
Create a schedule for suspension and dead-end assemblies, pole bands, brackets, strand or lashing components, slack storage, closure and terminal mounts, downlead guards, identification and applicable bonding or grounding parts. Match hardware to cable diameter, rated load, span, line angle, pole material, weather exposure and owner standards.
Underground sections
Coordinate conduit or microduct, couplers, plugs, duct seals, handhole racks, pull tape, tracer wire, warning tape, route markers, cable supports and building-entry protection with the civil design. Conduit length and cable length are not interchangeable because cable routing also includes handholes, vertical entries, slack and transitions.
A worked 320-location budgeting example
Assume an illustrative rural area with 320 approved locations, 208 initial activations, centralized 1:32 splitting, 8-port terminals, a measured average initial drop of 120 m and mixed aerial/underground routes.
| BOM group | Illustrative planning quantity | Basis or limitation |
|---|---|---|
| Splitter modules | 10 installed | 10 × 32 provides 320 outputs before any approved reserve |
| 8-port terminals | At least 40 | 320 ÷ 8 before geographic utilization adjustment |
| Initial drops | 208 | Activation quantity, not passings quantity |
| Initial drop cable | About 27.5 km | 208 × 120 m × an illustrative 1.10 factor |
| Feeder cable | Route-derived | Requires alignment, fiber allocation, slack and reel plan |
| Distribution cable | Zone-derived | Requires branch and terminal map |
| Closures | Function-derived | Reel joints, branches, transitions and terminal feeds |
| Installation hardware | Structure-derived | Pole, handhole, pedestal and premises takeoff |
| Restoration stock | Risk-derived | Repair scenario, compatibility, lead time and SLA |
Put a BEAD and BABA gate beside every applicable SKU
BEAD is administered through states and territories, so federal requirements should be read together with the subgrant agreement and project documents. The June 2025 policy notice changed the selection framework, but technical and procurement records remain configuration-specific.
The Department of Commerce's BEAD BABA waiver treats product categories differently. Its official FAQ states that optical fiber, fiber-optic cable, specified electronics, cabinets, vaults, pedestals, closures and terminals used in BEAD-funded infrastructure must comply with the applicable Buy America preference. It also explains how matching-fund purchases and construction tools are treated. Read the Department of Commerce BEAD BABA FAQ and the BEAD BABA waiver.
| Compliance field | Required entry |
|---|---|
| Exact part number | Quoted and delivered configuration |
| Product category | Classification used for review |
| Manufacturer legal name | Entity responsible for the product statement |
| Manufacturing location | Configuration-specific production source |
| Compliance status | Confirmed, pending review, waived category or outside scope |
| Supporting evidence | Signed letter, listed record or other required document |
| Lot/reel/serial identity | Link between evidence and delivered material |
| Approval owner | Subgrantee or designated compliance reviewer |
Review status at the exact product, manufacturing location and project-requirement level. A distributor location or broad catalogue statement does not establish the status of every supplied configuration.
Require a controlled supplier submittal
A usable quotation should include more than prices and catalogue names. Request:
- A configuration-specific BOM with clear exclusions
- Current datasheets and drawings
- A cable-to-closure and splitter-to-terminal interface matrix
- Manufacturing location and available compliance evidence
- Reel, lot or batch traceability
- Factory test and inspection records
- A packing and route-allocation plan
- A product-change notification process
- Installation and maintenance instructions
- Warranty, NCR and corrective-action contacts
Ask bidders to identify every exception. An “equal” product is not interchangeable merely because its headline fiber count or port count matches.
Pack the project by route and construction phase
Rural crews may work far from the staging warehouse. A missing seal, bracket or adapter can create a long return trip even when the main cable is already on site.
- Feeder route reels and joint-location kits
- Distribution-zone cable and closure kits
- Terminal-location kits
- Subscriber activation kits by drop type and length band
- Maintenance and emergency-restoration stock
Each package should identify the project, zone or route, BOM revision, product code, quantity, reel or batch identity and handling requirement. This turns the packing list into a field-control document.

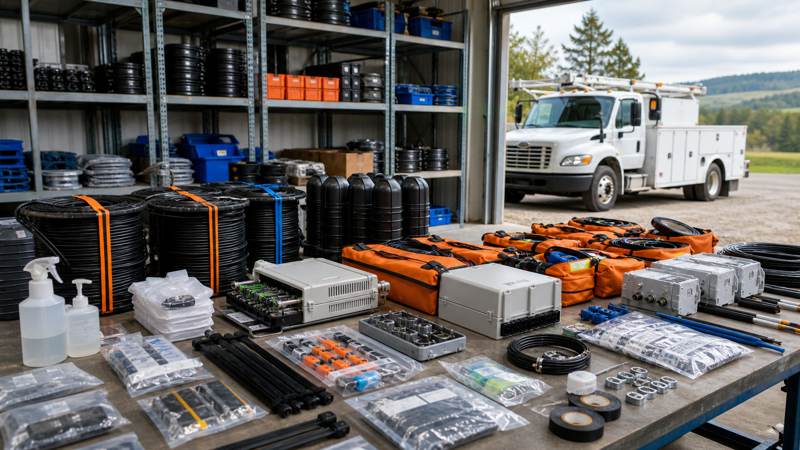

Build restoration stock around failure scenarios
A flat spare percentage can support an early budget, but it is not a restoration plan. Rural repair stock should consider travel time, weather access, route criticality, likely damage span, supplier lead time and the operator's restoration target.
| Spare family | Risk-based planning question |
|---|---|
| Feeder/distribution cable | What repair length and construction are needed for the most credible route failure? |
| Closures and seals | Is one complete compatible configuration available in each maintenance region? |
| Splitters | Is every installed ratio and package represented? |
| Terminals | Are the installed port counts, mounts and connector interfaces covered? |
| Drop cable | Are aerial, duct, buried and long-drop stocks separated? |
| Connectors/adapters | Are polish, housing and hardened interfaces matched? |
| Installation hardware | Which storm or damage items have the highest replacement frequency? |
| Splice consumables | Are complete sealed field kits ready for dispatch? |
Record the SKU, construction, length, test report, storage location and compatible accessories for each spare reel. Material that cannot be found or matched during an outage is not effective restoration stock.
Connect acceptance records to the installed asset
The handover package should connect each physical asset to its technical and compliance history. For cable, retain purchase order, SKU, reel ID, delivered length, factory attenuation record, installed segment and required post-install test files.
For closures, terminals and splitters, retain asset ID, location, cable entries, tray map, splice matrix, split ratio, port map and inspection records. The final route package should include redlined drawings, as-built GIS data, pole or handhole inventory, accepted optical results, drop records, approved substitutions and required evidence tied to the purchased SKUs.
Common rural fiber BOM failures
Cable count does not define trays, seals, adapters, pigtails or service ports.
The activation forecast and passings design serve different purposes.
Aerial, duct, buried and building-entry conditions need different constructions.
Unused ports do not help if drops cannot reach the premises safely.
Entries, diameter, storage, mounting and re-entry may be the real constraints.
Review the exact SKU, source and applicable product category.
How ZION supports passive fiber BOM planning
ZION Communication's telecom and ISP network portfolio includes outdoor fiber cable, FTTH drop cable, closures, terminal boxes, PLC splitters, patch cords and related passive ODN products. The published rural broadband fiber solution organizes selection around aerial, duct, direct-buried and final-drop route conditions.
After the topology and project requirements are available, ZION can help discuss route-by-route product-family matching, cable configurations, closure/splitter/terminal interfaces, project marking, reel length, zone-based packing, available technical documents and maintenance-stock compatibility.
Prepare the approved topology, route schedule, fiber counts, split plan, connector interfaces, installation methods, quantity schedule, packaging preference and document checklist before requesting a configuration review.
RFQ checklist
- Project boundary and excluded packages are clear.
- Route, passings, usable ports and activations are separate quantities.
- Aerial, duct, buried and building-entry sections are surveyed.
- PON architecture and split ratios are approved.
- Cable fibers, footage, slack and reel plan are defined by segment.
- Closures match cable entries, trays, storage and mounting.
- Terminals match service clusters and drop interfaces.
- Drop kits are separated by installation type and length band.
- Hardware comes from a structure-by-structure takeoff.
- Restoration stock follows credible failure scenarios.
- Every applicable SKU has a compliance classification and owner.
- Test files, traceability and as-built records are specified.
Conclusion
A reliable BEAD rural fiber BOM is a controlled translation of the route design into compatible, traceable, installable and maintainable material. The feeder preserves capacity. Distribution follows the branch and terminal plan. Closures match cable entries and access methods. Splitters fit the optical budget. Terminals follow service-location geography. Drops match the final field condition.
When cable, connectivity, hardware, records and restoration stock are managed in one controlled schedule, buyers can compare offers accurately, crews receive complete work packages and the operator inherits a network that can be tested, documented and repaired.
FAQ
What is included in a BEAD fiber project BOM?
A passive BOM normally includes feeder and distribution cable, closures, trays, PLC splitters, cabinets or access terminals, drop cable, connectors, adapters, pigtails, route-specific installation hardware, splice consumables, premises-entry materials, records and maintenance spares. Active equipment and civil construction can be managed as separate packages.
Should feeder cable be sized from the initial subscriber take rate?
Usually not. Shared outside plant should follow the approved service area, architecture and fiber-allocation plan. Initial take rate is more useful for the first release of subscriber drops, premises kits and active customer equipment.
Is a 1:32 splitter always the best choice for rural FTTH?
No. The approved ratio depends on the PON platform, route length, splitter stages, connector and splice count, system budget, engineering margin and operating strategy. A longer rural link may justify a different ratio or architecture.
How should closure quantities be calculated?
Count planned reel joints, branch points, cable transitions, terminal-feed joints and selected restoration locations. Then configure each closure for its cable ports, diameter range, trays, express storage, grounding, sealing and mounting.
Should a drop be ordered for every location passed?
Only if the construction contract requires it. Many projects build shared passings infrastructure first and release drop kits according to activations. Drop quantities should also reflect installation method and measured length bands.
Does BEAD currently require every project to use fiber?
No. NTIA's June 2025 restructuring applies a technology-neutral selection approach. This BOM guide is for projects where fiber has already been selected within the approved scope.
Does buying from a U.S. distributor make a product BABA compliant?
No. Distributor location alone does not establish compliance. Review the exact product category, SKU, manufacturing source, applicable waiver and required supporting evidence.
Sources
- NTIA — BEAD Restructuring Policy Notice
- BroadbandUSA — BEAD Program
- BroadbandUSA — BEAD Frequently Asked Questions, Version 20
- U.S. Department of Commerce — BEAD BABA Waiver
- U.S. Department of Commerce — BEAD BABA Frequently Asked Questions
- BroadbandUSA — BABA Compliance and Self Certification
- ITU-T G.652 — Single-Mode Optical Fibre and Cable
- ITU-T G.657 — Bending-Loss Insensitive Single-Mode Optical Fibre and Cable
- ITU-T G.984.2 — G-PON Physical Media Dependent Layer
- ITU-T G.9807.1 — XGS-PON
- IEC 61300-3-35:2022 — Visual Inspection of Fibre Optic Connectors
Prepare a Route-Based Passive Fiber BOM
Send the approved topology, route sections, fiber counts, split plan, connector interfaces, installation methods, quantity schedule, packing preference and required documents for a product and interface review.
Request Project Support
