Fiber Adapter
HELLOSIGNAL
SC Adapter
Fiber System Equipment
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
Fiber Optical Adapter— SC Adapters | ||||
|
|
| ||

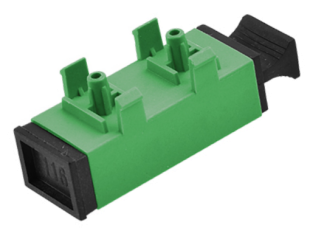

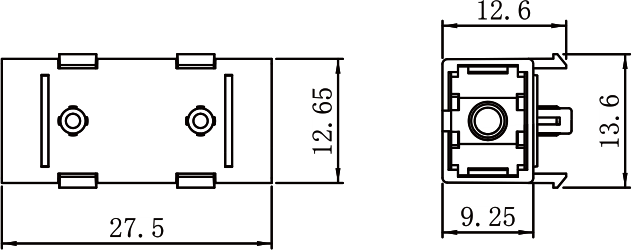

SC Adapter With Legs | ||||
|
|
| ||

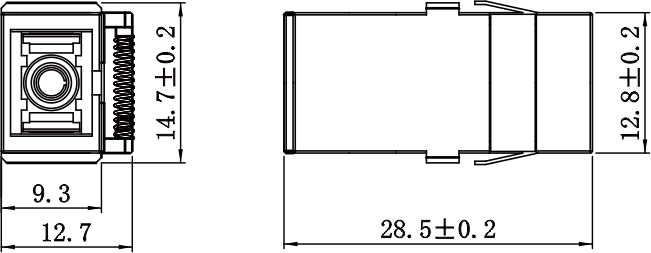

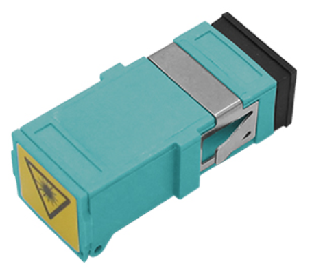

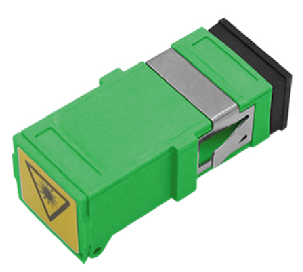

SC Cover Avoid Laser Adapter Without Flange | ||||
|
|
| ||

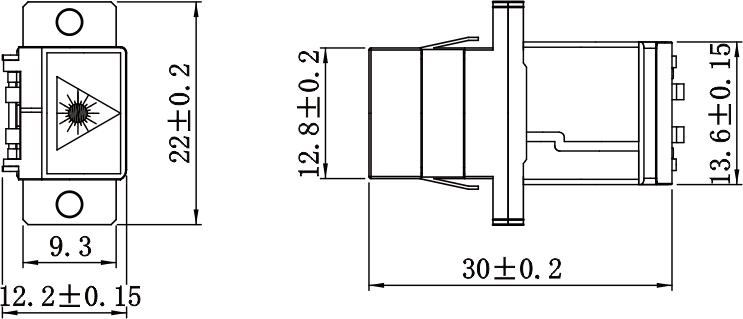

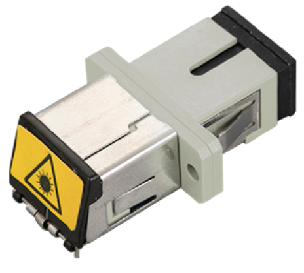

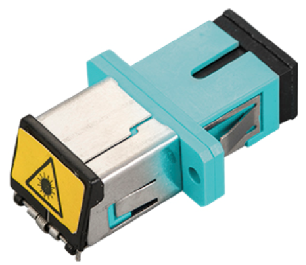

SC SX Metal Avoid Laser Adapter With Flange | ||||
 |  |  | ||

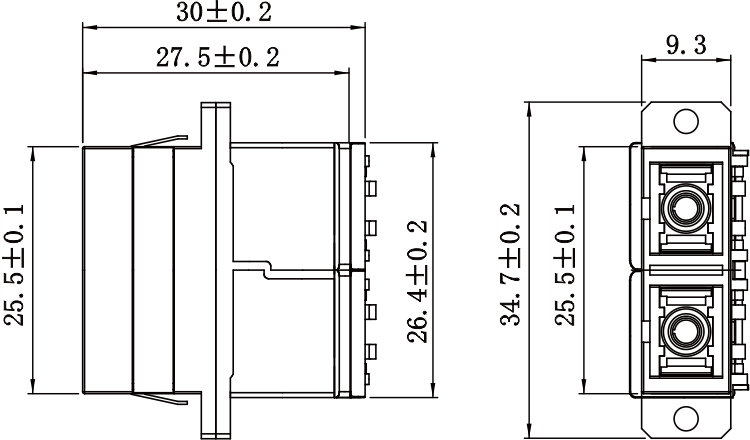

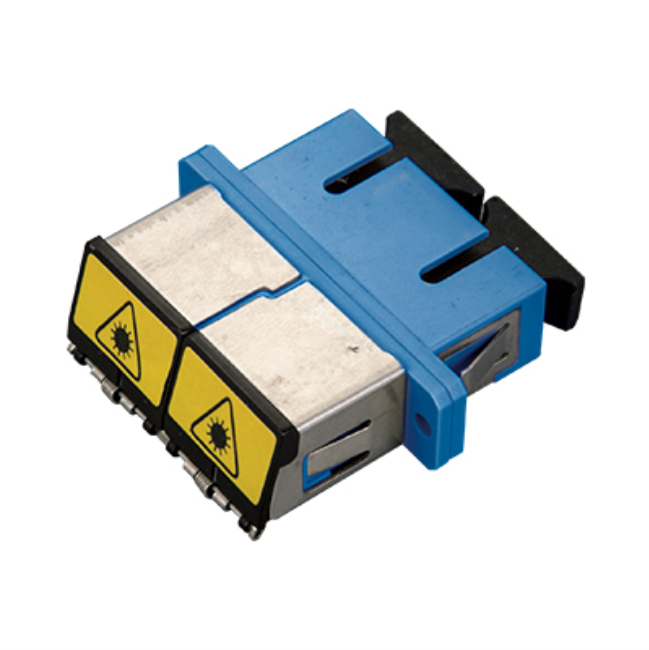

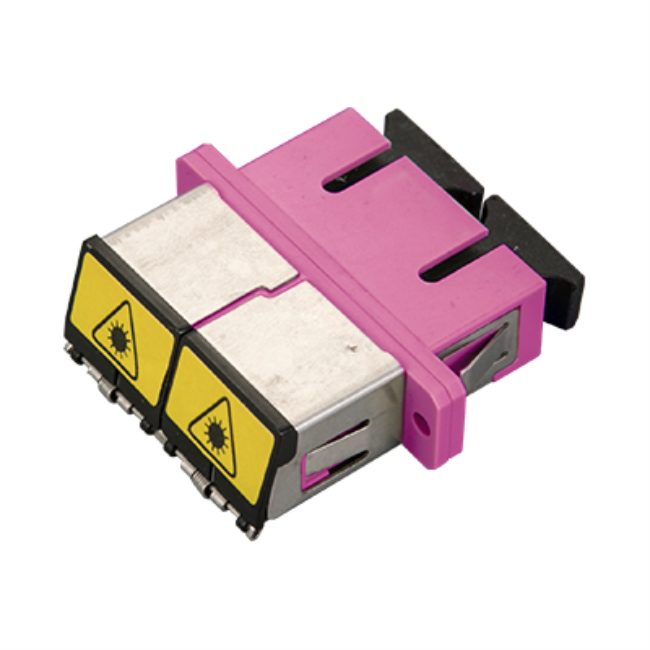

SC DX Metal Avoid Adapter With Flange | ||||
Optical Adapter/Performance Parameter Table | ||||
Parameter | SM | MM | ||
PC | UPC | APC | PC | |
lnsertion loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.2dB |
Alternating loss | ≤0.2dB | |||
Repeatability | ≤0.2dB | |||
Durability | The change of 500 interpolation times is less than 0.20dB | |||
Working temperature | -40℃~+85℃ | |||
Storage temperature | -40℃~+85℃ | |||
