CAT6 FTP fix tail clamp 8P8C RJ45 Connector

  • Cat6 FTP RJ45 connector
  • HELLOSIGNAL
  • 7024013
  • Connector
  • Normally 25 working days
  • NINGBO, SHANGHAI
  • T/T, L/C at sight, D/P at sight

Product Description


7024013  |  ZC-MP6-88SRFTC

Modular Plug , 8P/8C, CAT6,Shielded, Round, Fix Tail Clamp
8-position, crystal head,100/bag

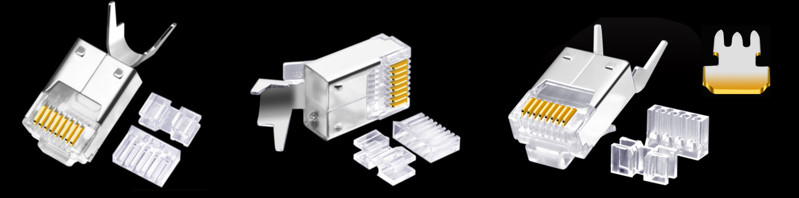

Physical photo


CAT6 FTP fix tail clamp 8P8C RJ45 Connector Physical photo

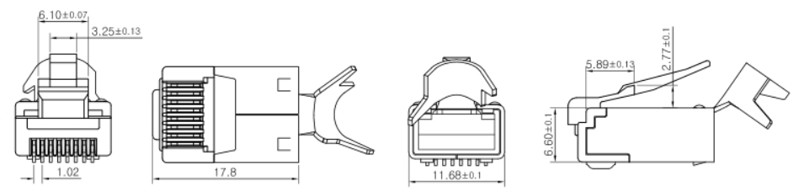

Dimensional Structure


CAT6 FTP fix tail clamp 8P8C RJ45 Connector Dimensional Structure


Electrical Specifications

ANSI/TIA Category

5

Current Rating,maximum

0.75 A

Insulation Resistance,minimum

500 mOhm

Safety Voltage Rating

150 Vac

Pass fluke test

Compliant


General Specifications

Cable Type

Round,shielded

Interface

RJ45

Application


Operating Temperature

-40 to +85

Relative Humidity

Up to 93%, non-condensing

Package Quantity

100

Packaging Type

Bag  |  Box  |  Carton

Positions/loaded Contacts

8P/8C


Mechanical Specifications

Conductor Gauge

Solid/Stranded  26-23 AWG

Contact Base Material

Phosphor bronze

Contact Plating Material

Gold

Contact Plating Thickness

50μ  OR  30μ

Material Type

PC = Polycarbonate

Plug Insertion Life,minimum

750 times

Plug Shield Base Material

Copper Alloy

Plug Shield Plating Material

Nickel



Regulatory Compliance/Certifications

RoHS 2011/65/EU

Compliant


Order Informations

Label

Can be customized

Delivery time

Normally 15 working days

Brand

Hellosignal ®

OEM

Yes
