CAT6 FTP 8P8C RJ45 Connector

7024012  |  ZC-MP6-88SR

Modular Plug , 8P/8C, CAT6,Shielded, Round,
8-position, crystal head,100/bag

Physical photo

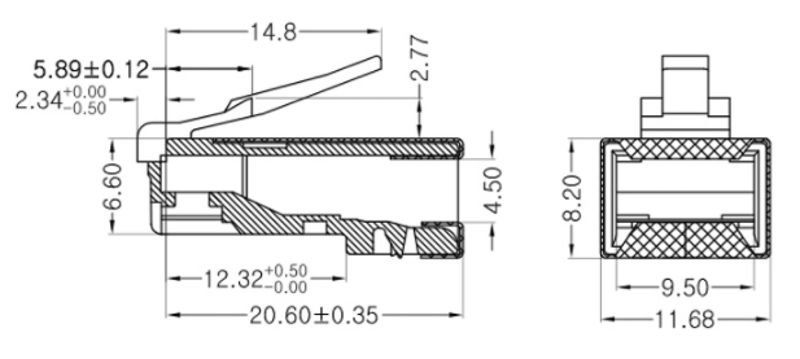

Dimensional Structure

Electrical Specifications

ANSI/TIA Category

5

Current Rating,maximum

0.75 A

Insulation Resistance,minimum

500 mOhm

Safety Voltage Rating

150 Vac

Pass fluke test

Compliant

General Specifications

Cable Type

Round,shielded

Interface

RJ45

Application

Operating Temperature

-40℃ to +85℃

Relative Humidity

Up to 93%, non-condensing

Package Quantity

100

Packaging Type

Bag  |  Box  |  Carton

Positions/loaded Contacts

8P/8C

Mechanical Specifications

Conductor Gauge

Solid/Stranded  26-23 AWG

Contact Base Material

Phosphor bronze

Contact Plating Material

Gold

Contact Plating Thickness

50μ  OR  30μ | 6μ

Material Type

PC = Polycarbonate

Plug Insertion Life,minimum

750 times

Plug Shield Base Material

Copper Alloy

Plug Shield Plating Material

Nickel

Regulatory Compliance/Certifications

RoHS 2011/65/EU

Compliant

Order Informations

Label

Can be customized

Delivery time

Normally 15 working days

Brand

Hellosignal ®

OEM

Yes
