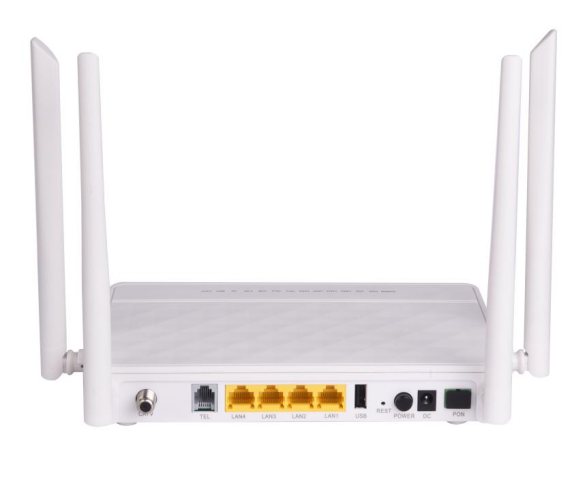

712XR ONU FTTH GPON optical network unit

Product introduction

PON is a mature optical fiber access network technology, which integrates the advantages of low cost, high bandwidth, strong expansibility and other advantages. It adopts the passive spectral network and point-to-multipoint structure, which changes the problems existing in the active optical network such as many fault points, difficult maintenance and high operating costs.

712XR model ONU is a user terminal device independently developed by BTPT in line with such industrial background.The device has built-in two-layer switching function and three-layer routing function. With compact structure and small appearance, it is a kind of FTTH optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.712XR is an XPON product that can be adapted to EPON and GPON networks without replacing equipment and firmware.

Product features :

● Support EPON/GPON mode and switch mode automatically

● GPON:Compliance with IEEE 802.3ah & itu-t g.984.x standard

● GPON:8 T-CONTs,32 GEM Ports

● Integrate OMCI(GPON)/OAM(EPON) and TR-069 remote configuration and maintenance

● Layer 3 Home Gateway/CPE features with Hardware NAT, support Multiple WAN, Route/Bridge mode, etc

● Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc

● Support PPPoE/ Static IP/ DHCP

● Bi-directional FEC

● Support IPv4, IPv6 and IPv4/IPv6

● Support firewall level Settings, support based on URL/MAC/ IP/ address frame filtering

● Support multicast IGMP v2 proxy/ snooping, support MLD proxy/ snooping

● Qos supports PQ, WRR, and CAR queue scheduling

● Provide Maximum rate 300Mbps 2.4GHz Wireless interface,and Maximum rate 866Mbps 5.8GHz Wireless interface，,2T2R external antenna, support multiple SSID Settings

● Support DDSN, ALG, DMZ and UPNP

● Provide POTS interface, support SIP protocol，POTS integrated circuit test complies GR-909

● Support CATV interface for Video Service，support to turn off CATV functionality

Product Specification :

Hardware Specifications

Size（L*W*H）

mm (L) *mm (W) *mm (H)

Optical signal access

1*GPON/EPON

User interface

 4GE+1VOIP+2.4G/5.8G WLAN+1USB+CATV

Indicator light

POWER、PON、LOS、LAN1、LAN2、LAN3、LAN4、TEL1、USB、2.4G、5G、WPS、CATV

Button

Power switch Button, Reset Button, WLAN Button, WPS Button

Weight

300g

Power adapter input

100V～240V AC，50Hz～60Hz

PowerSupply requirement

12V DC，1.5A

Power consumption

<10w

Working temperature

-10°C ~ +45°C

Environment humidity

5% ~ 95% (Non-condensing)

PON Interface

Module type

SC/APC

Working wavelength

PON：up 1310nm，down 1490nm ；CATV：1550nm

TX Optical power value

0.5～4dBm

RX Optical power value

Receiver sensitivity：-27dBm

Transmission distance

0～20km

Transmission rate

GPON:Up 1.244Gbps；down 2.488Gbps

EPON:Up 1.244Gbps；down 1.244Gbps

Ethernet interface

Interface type

4* RJ45

Interface parameters

4*10/100/1000Mbps auto adaptive Ethernet interfaces

Wireless

Working mode

IEEE 802.11 b/g/n/AC

Antenna pattern

External 2*2T2R External antenna

Antenna gain

5dBi

Wireless bandwidth

Support 20MHz/40MHz/80MHz

Interface rate

2.4G WLAN：Maximum rate 300Mbps
5.8G WLAN：Maximum rate 866Mbps

SSID

Up to 4 SSID broadcasts are supported

Product Specification :

POTS interface

Interface type

1* RJ11

Voice agreement

SIP

Codecs

G.711/G.723/G.726/G.729

Integrated circuit protocol

Gr-909 protocol is applicable

CATV Interface

Optical receiving wavelength

1550±10nm

Optical reflection loss

≥45dBm

RF, WDM, optical power

+2~-15dBm

RF frequency range

47~1000MHz,  RF output impedance: 75Ω

RF output level

78dBuV

AGC range

0~-12dBm

MER

≥32dB@-15dBm

Order Informations：

Marking

Per customer's request

Package

Per customer's request

Delivery time

Normally 25 days after received the deposit.

Brand

OEM
