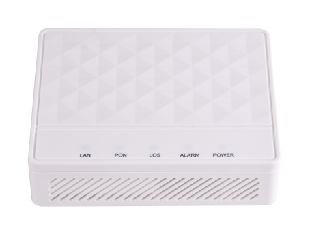

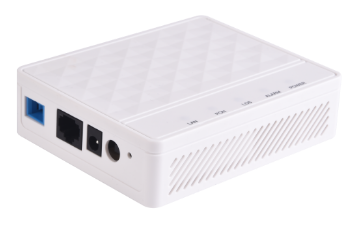

201GR ONU FTTH GPON optical network unit

Product introduction

PON is a mature optical fiber access network technology, which integrates the advantages of low cost, high bandwidth, strong expansibility and other advantages. It adopts the passive spectral network and point-to-multipoint structure, which changes the problems existing in the active optical network such as many fault points, difficult maintenance and high operating costs.

201GR model ONU is a user terminal device independently developed by BTPT in line with such industrial background.The device has built-in two-layer switching function . With compact structure and small appearance, it is a kind of FTTH GPON optical network unit with high performance and low power consumption, which is very suitable for the application requirements of various data services in FTTH networking scenarios of various operators.

Product features :

● Compliance with IEEE 802.3ah & itu-t g.984.x standard

● GPON:8 T-CONTs,32 GEM Ports

● Supports the WEB configuration function

● Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc

● Supports the configuration of Ethernet interface rates, working modes,
MDI/ MDIX auto-negotiation mode, and Pause flow control

● Provides performance statistics on all Ethernet lines

● Support multicast IGMP snooping

● Supports the L2 wire speed forwarding

● Supports the AES-128 algorithm for data encryption of downlink data

Product Specification :

Hardware Specifications

Size（L*W*H）

110mm (L) ×89mm (W) ×29mm (H)

Optical signal access

1*GPON

User interface

1GE

Indicator light

POWER/PON/LOS/LAN

Button

Power switch Button, Reset Button

Weight

100g

Power adapter input

100V～240V AC，50Hz～60Hz

PowerSupply requirement

12V DC，0.5A

Power consumption

<6w

Working temperature

-10°C ~ +45°C

Environment humidity

5% ~ 95% (Non-condensing)

PON Interface

Module type

Class B+ SC/UPC

Working wavelength

up 1310nm，down 1490nm

TX Optical power value

0.5～4dBm

RX Optical power sensitivity

 -27dBm

Transmission distance

0～20km

Transmission rate

Uplink 1.244Gbps；downlink 2.488Gbps

Ethernet interface

Interface type

 RJ45

Interface parameters

 1 x 10/100/1000Mbps auto adaptive Ethernet interfaces

Order Informations：

Marking

Per customer's request

Package

Per customer's request

Delivery time

Normally 25 days after received the deposit.

Brand

OEM
