Introductory Lines

Indeed, in our digitally-ridden era, wired networks comprised of Ethernet cables are what bring us high-speed, stable, and secure connections. Conversely, the performance and durability of a cabling structure contribute to the quality of the cables, as well as the supporting features used during installation and maintenance.

This article is focusing on the much-needed Ethernet cable accessories; it explains their work, scenario usages, and reasons for network durability. These accessories are indeed crucial for creating a professional-level ecosystem, whether you are an installer, IT manager, or technician.

■ What Are Ethernet Cable Accessories?

Ethernet cable accessories can be considered as supporting components for various types of Ethernet cables, including Cat5e, Cat6, Cat6A, and Cat7. There are a variety of tools for conduct termination, protection, cables organizing, and connectivity. They target data centers, offices, industrial sites, and home networks.

■ Common Types of Ethernet Cable Accessories and Their Uses

RJ45 Connectors

Function:

The RJ45 connectors are modular plugs that are connected at the end of twisted pair ethernet cables. They serve as the interface through which the cable connects to switches, routers, patch panels, and other networking devices.

Applications:

• Design with custom-length Ethernet patch cords

• Coupling devices in LAN setups

Types:

• Standard RJ45 connectors. (For Cat5e/Cat6)

• Shielded RJ45 connectors. (For STP/FTP cables used in a high EMI environment)

Keystone Jacks

Function:

Keystone jacks are wall-mounted female connectors, which are placed within wall plates, patch panels, or surface boxes. They offer a flexible port arrangement for Ethernet connectivity.

Applications:

• Used in homes or companies' structured cabling systems

• Network walls through which cables can pass

Types:

• Keystone models with no shields (Unshielded Twisted Pairs Systems (UTP Systems))

• Protective jacks (for EFTP/STP systems)

• Tool-less or punch-down styles

Patch Panels

Function:

Patch panels are the pieces that keep the cable connections organized and centralized, and they are located in hollow spaces such as racks or cabinets. This makes it easier to manage the cables and eliminates the need for interconnection during troubleshooting.

Applications:

• For data centers and server rooms

• Commercially-built installations based on structured cabling

Types:

• Patch panels supporting Cat5e, Cat6, and Cat6A

• There are 24-port and 48-port options

• Shielded and unshielded types of patches

Wall Plates and Faceplates

Function:

Wall plates are the places that keystone jacks fit in and this is how the in-wall Ethernet becomes tidy and the doors are finished.

Applications:

• Office presentation rooms

• Home LAN terminals

Features:

• 1 to 4 port choices

• A keystone jack connection is used

• Tool-free, easy designs for promptly setting up the equipment

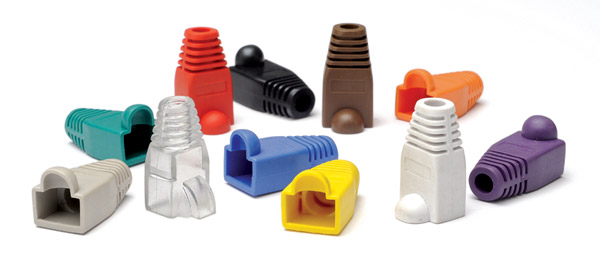

Ethernet Cable Boots (Strain Relief Boots)

Function:

Cable boots are reassuring for keeping the RJ45 connector safe and also reducing the possibility of bending or kinking at the cable termination point.

Applications:

• Patch cords in areas with a lot of usage

• The networks that run in close quarters

Advantages:

• Cable wear and tear is reduced

• The connection does not come off the cable on move

Ethernet Couplers

Function:

Couplers join two Ethernet cables together, extending the total length of the cable run.

Applications:

• Setting up the network to temporarily extend it

• The cable lengthening at the workplace or laboratory

Cable Management Accessories

Includes:

• Cable ties (Velcro or Nylon)

• Cable clips

• Cable organizers or trays

• Raceway systems

Function:

The Cable Management Accessories facilitate the cable management, avoid tangling, and improve the airflow and safety offering a better working environment.

Applications:

• Network cabinets

• Under the desk setups

• Server racks

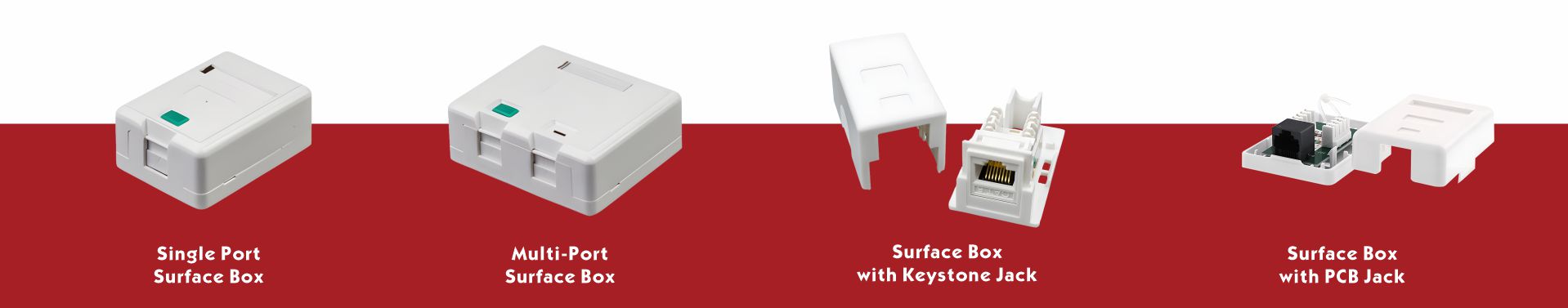

Surface Mount Boxes

Function:

Surface mount boxes are used when in-wall cables cannot be placed inside. The racks being adopted are housing keystone jacks and allow for outside installation.

Applications:

• Cement bricks or brick walls

• Networks created for use

Features:

• Snap-on covers

• Multiple port configurations

• Appreciated by standard Keystone jacks



■ Making Transactions Simple

Let's determine proper Ethernet accessories by the following:

• Cable Category Compatibility: Make sure you use Cat6 connectors for Cat6 cable type and so on

• Shielding Requirements: Prefer using the shielded adapters when harmonic disturbances are in the network

• Installation Type: Whether the mounting is discrete or surface-mount, you can decide for in-wall performance or in-outdoor usage

• Future Scalability: Patch panels and jacks with bigger patches shows more growth

■ Why Quality Accessories Matter

The low-grade or mismatched adding can lead to:

• Signal weakening

• Intermittent connectivity issues

• Installation and maintenance of the network fees

Acquiring certified standard Ethernet accessories with good quality assures the performance and stability of a long-term future network.

■ Conclusion

Ethernet cables are more than just extra elements to a structured cabling system; they form the foundation and the most important element in the structured cabling system. Connecting the network devices using RJ45 connectors or installing the patch panels, it can all be done in order for the network users to get flawless and durable Internet connection.

At Zion Communication, we put forth an array of class-A Ethernet cables and accessories composed to correspond to commercial, industrial, and residential needs. Whether it be for the construction of a server room or the installation of an office LAN, we are equipped to fulfill this need.

■ FAQs

Q1: Can I use Cat5e accessories with Cat6 cables?

A: Certainly not. Better, to use the devices, are whose category matches or exceeds that of your associated category cable for the optimal performance and compliance with defined standards.

Q2: What's the difference between shielded and unshielded accessories?

A: Electromagnetic interference shields minimize EMI occurring in industrial or high-noise settings, implying the need for them.

Q3: Do I need a patch panel in a home network?

A: Each connection may not be connected to a patch panel, yet they will still be efficiently arranged and increase the necessary spacing when required.
