Why This Checklist Matters
Data center cabling crosses several boundaries: outdoor routes, building entrances, carrier handoff areas, internal distribution, and equipment racks. ANSI/TIA-942 includes telecommunications infrastructure within the physical data center environment, while ISO/IEC 24764 addresses generic cabling systems for data centers. In practice, route-to-rack connectivity is an end-to-end system and should not be split into disconnected purchasing lines.
A complete BOM helps project teams find scope gaps during quotation or tender review, align carriers, data centers, EPC teams, system integrators, and equipment suppliers, confirm connector type, fiber type, polarity, and port count before installation, keep optical loss within the equipment budget, and build a document baseline for acceptance, audits, expansion, and troubleshooting.
How to Use This Checklist in a Real Project
Use this article as a working checklist during four project moments: initial route review, quotation or tender preparation, installation coordination, and final handover. The practical goal is to convert a general dark fiber requirement into a traceable list of interfaces, materials, owners, and documents.
For each link, create one line in a project tracker with a unique circuit ID. Then attach the A/Z end, physical route, demarcation point, ODF port, rack port, fiber type, connector type, polarity, planned loss, and required test report. This prevents teams from discussing the same link under different names.
| Project role | What they should confirm | Output to share |
|---|---|---|
| Network / data center planner | Service route, A/B diversity target, MMR handoff, rack destination, and future expansion allowance | Route intent, redundancy rule, rack list, target service date |
| Cabling engineer or contractor | Cable pathway, entrance method, ODF layout, bend radius, patching route, and label position | Route drawing, installation method, rack elevation, patch schedule |
| Procurement / distributor | Fiber type, connector type, port count, trunk length, accessories, spares, and packaging split | BOM worksheet, item description, quantity basis, alternative items |
| Operations / acceptance team | Port map consistency, label readability, loss budget, OLTS/OTDR reports, and exception closure | Acceptance checklist, test report package, as-built document set |

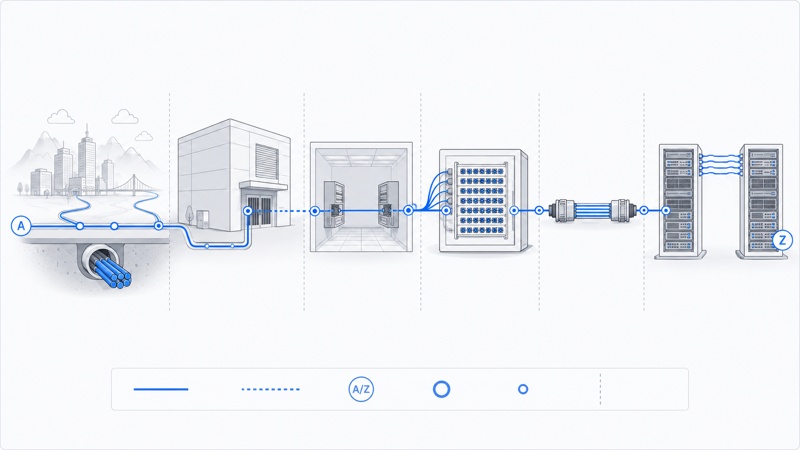

1. Long-Haul / Metro Route: Confirm the External Path First
The external route is the starting point of the entire link. Before preparing the BOM, confirm whether the line is a long-haul route, metro ring, campus interconnect, or carrier-provided dark fiber pair.
Key inputs include A-end and Z-end locations, surveyed route length instead of map distance, aerial, duct, direct-buried, or mixed installation methods, OS2 fiber count, available and reserved fibers, sheath, armor, water-blocking, and flame-retardant requirements, splice closures and intermediate splice points, entrance slack, maintenance slack, and the location and ID of each splice point.
Typical BOM items include outdoor fiber optic cable, armored cable, ADSS cable, splice closure, splice tray, heat-shrink splice protector, grounding accessories, entrance fixing hardware, and route labels. Cable quantity should be based on surveyed route length plus splice slack, building entrance slack, vertical and horizontal pathway length, and project-defined maintenance allowance.
2. Data Center Entrance: Define the Outdoor-to-Indoor Boundary
When an outdoor cable reaches the campus, it has not yet become a manageable data center link. The entrance section should define where the outdoor cable terminates, whether it transitions to indoor-rated cable, and which party is responsible for splicing, sealing, firestopping, strain relief, and grounding.
An entrance BOM usually includes entrance closure or fiber entrance box, transition cable from outdoor to indoor areas, splice trays, pigtails, adapters, protection sleeves, cable glands, fixing clamps, strain-relief hardware, firestopping and sealing materials, grounding accessories for metallic armor, and internal pathway materials from the entrance facility to the MMR or ODF.

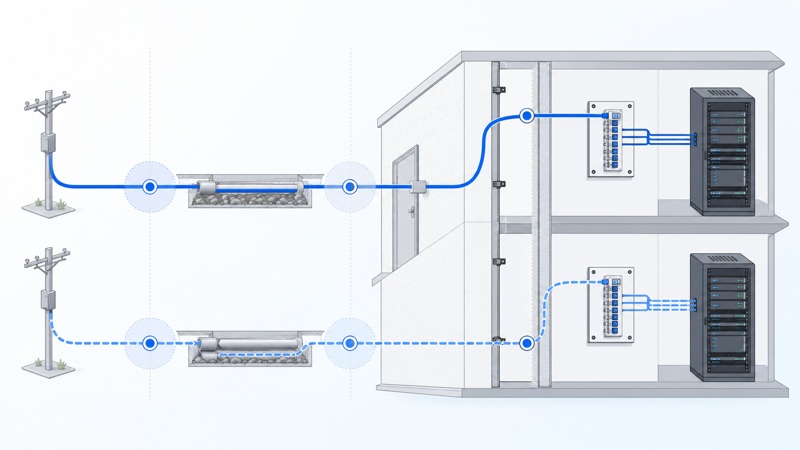

3. Primary / Redundant Path: Confirm Real Path Diversity
Two cables do not automatically mean two independent routes. If the primary and redundant links share the same duct, handhole, building entrance, tray, or ODF, one construction incident or single point of failure can still interrupt both services.
At minimum, check whether A path and B path use different external ducts or pole routes, enter through different building entrances, use different risers, bridge trays, or room pathways, terminate in different ODFs, racks, or MMR zones, use clearly separated route IDs, and have independent test reports filed for handover.
4. ODF: Turn Termination Hardware into an Operations Map
The ODF is the main management interface between the external route, the data center backbone, and equipment-side patching. Selection should not be based only on total port count. Rack space, connector type, splice capacity, cable routing direction, and future expansion all matter.
An ODF BOM may include rack-mount or wall-mount enclosure, LC, SC, or project-specified adapter panels, pigtails with correct fiber type, connector type, and polish type, splice trays and protectors, fiber patch panel accessories, blank panels, dust caps, cable management, port labels, panel labels, route labels, unused ports, and expansion space.
5. Meet-Me Room: Clarify the Carrier and Customer Handoff
In a carrier-neutral data center, the meet-me room is the concentrated handoff point for carrier networks, campus backbone, and customer cross-connects. The BOM should define the demarcation point to avoid different interpretations between the carrier, data center operator, and tenant.
The MMR checklist should answer which panel and port the carrier cable terminates on, who provides and installs the cross-connect, whether the customer side uses OS2, OM4, or another fiber type, whether the connector is LC, SC, MPO, or another interface, what path and length are needed from the MMR to the customer rack, and which party completes and signs the pre-service test.

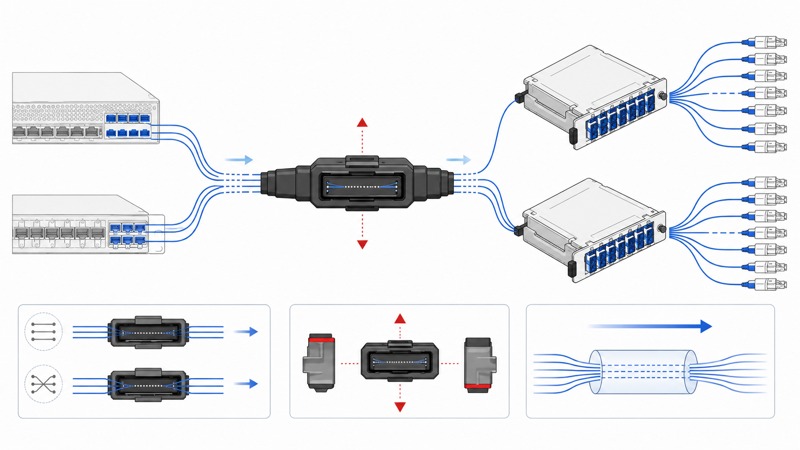

6. MPO/MTP Backbone: Lock Polarity Before Purchasing
High-density data centers often use MPO/MTP trunk cables, cassettes, and breakout cables to reduce backbone space and improve deployment efficiency. But MPO/MTP system compatibility depends on more than fiber count. Polarity, pinning, gender, and key orientation must be fixed before ordering.
Confirm OS2, OM3, OM4, or OM5 fiber type, 8, 12, 24, or project-specified fiber count, Method A, Method B, Method C, or project-specific polarity, pinned and unpinned interfaces, male and female connectors, MPO/MTP-to-LC cassette, module, or breakout format, Base-8, Base-12, or another system architecture, trunk length, pulling eye, installation direction, and the lane mapping of the target transceiver.
7. Rack-to-Rack: Engineer the Last Few Meters
The final section from an ODF or zone distribution point to an equipment rack often contains the most manual handling and future changes. Cables that are too short create tension. Cables that are too long increase coiling, bending, and port identification difficulty.
A rack-to-rack BOM should confirm A-end and B-end rack ID, U position, panel, and port, fiber type, connector type, and polish type, duplex, parallel optics, or breakout structure, the actual routing path for patch cords and trunks, minimum bend radius and routing space, cable managers, patch cord length grades, and spare quantity.
8. Labeling: Make the Link Quickly Identifiable
Labels are inexpensive, but they directly affect fault recovery speed. Each cable, closure, ODF port, and patch cord should have a unique and traceable identifier.
Label fields can include circuit ID, A/Z end location, route A or route B, cable ID and fiber pair, rack, panel, module, and port, carrier or customer name, installation date or project batch, and the associated test report number.

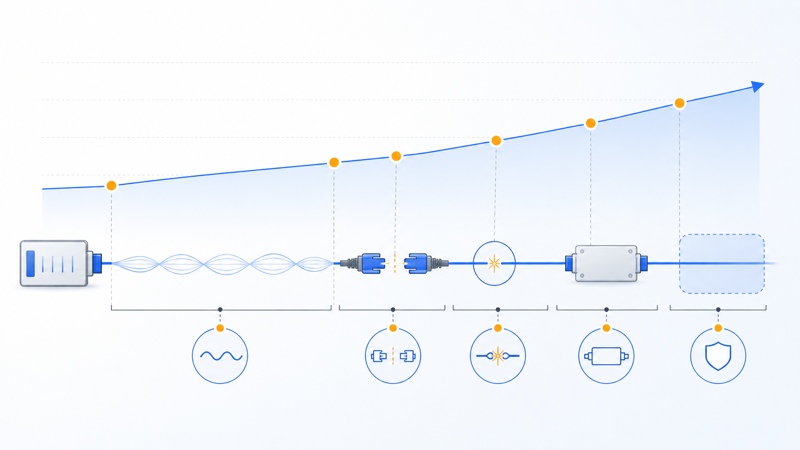

9. Loss Budget: Complete the Link Budget Before Purchasing
Optical loss should not wait until the testing stage. Connectors, splice points, splitters, other passive components, and fiber length all add insertion loss. Return loss describes how much signal is reflected back toward the source. Fluke Networks explains the difference and common sources in Insertion Loss vs. Return Loss.
ILplanned = (α × L) + (Nc × ILc) + (Ns × ILs) + ILpassive + Margin Here, α × L represents fiber attenuation at the selected wavelength, Nc × ILc represents connector-pair count multiplied by planned loss per pair, Ns × ILs represents splice count multiplied by planned loss per splice, ILpassive represents other passive component loss, and Margin covers engineering, maintenance, and future change allowance.
10. Test Documents: No Documents, No Complete Handover
Acceptance should not rely on a single "Pass" screenshot. The project team needs to confirm test method, reference cord setting, test direction, test wavelength, and the exact port that each result belongs to.
Recommended handover documents include route drawing and as-built drawing, cable schedule and fiber allocation table, splice plan and splice closure record, rack elevation, ODF port map, MMR cross-connect schedule, labeling register, loss budget worksheet, end-face inspection record, OLTS insertion loss report, OTDR trace and event table, test equipment model, serial number, calibration information, exception list, corrective action records, and final sign-off page.
Practical Workflow: From Requirement to Handover
A workable route-to-rack process should move from route definition to document-controlled handover. The sequence below gives each team a clear point to stop, review, and approve before the next activity begins.
| Step | Action | Decision point | Deliverable |
|---|---|---|---|
| 1. Define the link | Assign circuit ID, A/Z end, service purpose, required bandwidth, and target rack | Is this a new link, expansion, migration, or redundant path? | Circuit list and route intent |
| 2. Confirm the physical path | Review external route, entrance, MMR, ODF, riser, tray, and rack pathway | Are A/B paths physically diverse or only logically redundant? | Route drawing and diversity note |
| 3. Build the passive BOM | List cable, closures, trays, pigtails, adapters, patch panels, trunks, cassettes, patch cords, labels, and spares | Are connector type, fiber type, polish type, polarity, and port count fixed? | BOM worksheet with quantity basis |
| 4. Check optical budget | Calculate planned insertion loss from cable length, connector pairs, splice points, passive modules, and margin | Does the planned loss fit the target transceiver or interface budget? | Loss budget worksheet |
| 5. Install and label | Install cable, terminate or splice fibers, mount ODF or panels, route trunks and patch cords, and apply labels | Do field labels match the port map and cable schedule? | Installation record and labeling register |
| 6. Test and hand over | Inspect end faces, run OLTS and OTDR tests as specified, close exceptions, and archive results | Are all ports, fibers, reports, and exception records traceable? | As-built package and signed acceptance record |
Common Scope Gaps to Catch Early
Most delivery delays come from small missing items rather than the main cable itself. During quotation review, use the following table to identify gaps before purchase orders are placed.
| Gap | Why it matters | How to prevent it |
|---|---|---|
| No clear demarcation point | Carrier, data center, and customer teams may assume different handoff panels or ports. | Record panel, port, owner, and test responsibility for every handoff. |
| Connector and polish mismatch | LC/SC/MPO, UPC/APC, pinned/unpinned, or male/female errors can stop activation. | Lock connector, polish, gender, and pinning in the BOM description. |
| MPO/MTP polarity not approved | Trunks, cassettes, and transceivers may not align even if fiber count is correct. | Prepare a polarity matrix and lane mapping before ordering. |
| No spare or slack rule | Future moves, repairs, and rerouting become difficult or require emergency purchase. | Define slack, spare fibers, spare ports, and spare patch cord quantities. |
| Test reports not tied to ports | A pass result is hard to use if it cannot be linked to fiber pair, ODF port, and rack port. | Use the same circuit ID in test reports, labels, port maps, and schedules. |
Complete Connectivity BOM Checklist
The checklist below can support quotation, tender review, and scope alignment. Actual quantities and model numbers should be adjusted according to route length, port count, redundancy level, test standard, and data center operating rules.
| Area | Design Input | Typical BOM Items | Required Documents |
|---|---|---|---|
| Long-haul / metro route | Route, fiber count, installation method, splice points | Outdoor cable, splice closures, splice trays, protectors, route labels | Route drawing, cable schedule |
| Data center entrance | Entrance location, indoor/outdoor transition, firestopping and grounding boundary | Entrance box, transition cable, glands, fixing hardware, pigtails | Entrance detail, responsibility matrix |
| Primary / redundant path | A/B physical paths, shared failure points | Two independent cable routes, splicing, ODF ports, labels | Diversity drawing, A/B test reports |
| ODF | Port count, connector type, rack space, expansion | Enclosure, adapters, pigtails, splice trays, patch cords | Port map, rack elevation |
| Meet-me room | Demarcation, carrier, cross-connect scope | Patch panels, patch cords, transition modules, routing accessories | Cross-connect schedule |
| MPO/MTP backbone | Fiber type, fiber count, polarity, pinning | Trunks, cassettes, modules, breakout cables | Polarity matrix, lane mapping |
| Rack-to-rack | Ports, length, pathway, equipment interface | LC/SC/MPO patch cords, trunks, cable managers | Patch schedule |
| Labeling | Naming rules and fields | Cable, panel, port, and closure labels | Labeling register |
| Loss budget | Wavelength, distance, connection points, equipment budget | Linked to all passive connection items | Loss budget worksheet |
| Testing | Test standard, direction, wavelength, limits | Cleaning and inspection tools, OLTS/OTDR test services | Test reports, traces, corrective records |
Who Needs This Checklist Most?
Use it for new facilities, campus interconnects, MMR expansion, and tenant cross-connect standardization to reduce scope disputes.
Align external routes, demarcation points, ODF ports, and customer-side handover documents to improve service activation.
High-bandwidth, low-latency projects often need clear A/B paths and controlled MPO/MTP compatibility risk.
Use the checklist for bid review, purchasing split, site briefing, and acceptance to reduce missing accessories or interface mismatches.
How ZION Supports Route-to-Rack Projects
ZION can support passive optical connectivity from route to rack, including indoor, outdoor, armored, and ADSS fiber optic cable, splice closures, splice trays, and accessories, ODF, fiber patch panels, adapters, and pigtails, OS2, OM3, and OM4 fiber patch cords, and MPO/MTP high-density fiber cabling such as trunks, cassettes, modules, and breakout cables.
Before requesting a quotation, share route drawings, A/Z ends, fiber count, connector type, port count, polarity, path length, and testing requirements. These inputs help make the BOM more accurate and reduce repeated clarification.
Information to Prepare Before Requesting a BOM
If the project is still early, the following inputs are enough to start a meaningful BOM discussion. If some fields are unknown, mark them as open items instead of guessing; this helps ZION separate confirmed items from engineering decisions that still need review.
| Input category | Information to provide | Why it helps |
|---|---|---|
| Route and endpoints | A/Z locations, route drawing, measured distance, entrance location, and MMR or ODF handoff | Defines cable length, route accessories, slack, and responsibility boundary |
| Fiber and interface | OS2, OM3, OM4, or OM5; LC, SC, or MPO/MTP; UPC/APC; duplex, parallel optics, or breakout | Prevents connector, polish, and optical architecture mismatch |
| Capacity and ports | Fiber count, active pairs, spare fibers, ODF capacity, rack ports, and expansion plan | Supports port map planning and avoids undersized panels or trunks |
| MPO/MTP details | Fiber count, polarity method, pinned/unpinned, gender, cassette or breakout format, and lane mapping | Controls high-density cabling compatibility before purchase |
| Testing and acceptance | Required standard, wavelength, OLTS/OTDR scope, loss limit, report format, and sign-off process | Connects the BOM with measurable handover requirements |
FAQ
Why should a dark fiber BOM include more than optical cable?
After the dark fiber route reaches a data center, the link still needs entrance facilities, splice points, MMR cross-connects, ODF ports, backbone trunks, patch cords, labels, loss budgets, and test documents. A cable-only BOM can miss termination, management, redundancy, and acceptance items.
How can a team check whether A/B paths are truly diverse?
Check whether A path and B path use different external ducts or pole routes, different building entrances, different risers or trays, different ODFs or rack areas, and independent test reports.
What is often missed before buying an MPO/MTP backbone?
Besides fiber count and fiber type, teams should confirm polarity, pinning, gender, key orientation, cassette or breakout format, trunk length, pulling direction, and transceiver lane mapping.
What information helps ZION prepare a more accurate BOM?
Useful inputs include route drawings, A/Z ends, fiber count, connector type, port count, polarity, path length, redundancy requirements, entrance boundaries, labeling rules, and testing requirements.
