Author: Site Editor Publish Time: 09-01-2026 Origin: Site
A practical guide for buyers, engineers and OEM projects to understand what information should be printed on Ethernet cable jackets, why markings matter, and how to avoid unclear or non-compliant cable identification.
Ethernet cable jacket printing should clearly identify brand, cable category, construction, conductor size, shielding type, jacket material and compliance information.
For B2B projects, jacket marking is not only for appearance. It supports installation verification, maintenance, traceability and procurement acceptance.
OEM buyers should confirm printing content, print spacing, ink durability, color contrast and whether meter marking is required before mass production.

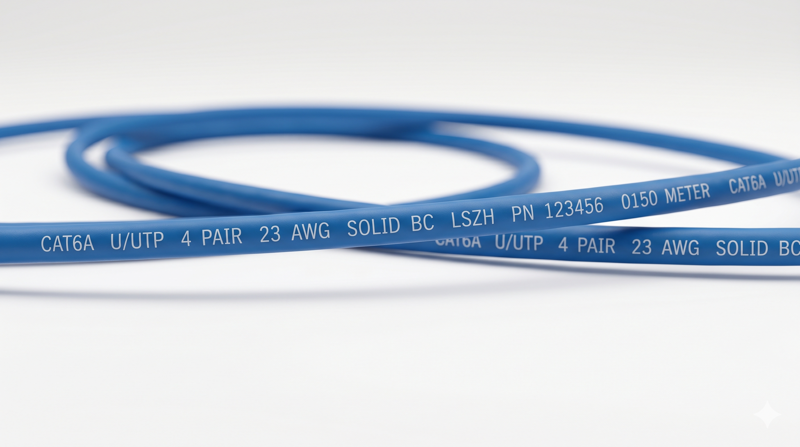

Ethernet cable jacket printing is the information printed repeatedly along the outer sheath of a LAN cable. It usually includes the cable category, conductor size, pair count, shielding type, jacket material, fire rating, compliance marks, length marking, manufacturer or brand information, and sometimes production batch or OEM part number.
For installers and buyers, clear jacket printing helps identify whether the cable is Cat5e, Cat6, Cat6A or another type, whether it is UTP or shielded, whether it uses PVC or LSZH jacket, and whether it matches the project specification. Poor or missing printing can create confusion during installation, inspection, maintenance and replacement.
The best jacket printing is clear, repeatable, durable and technically complete. It should help an installer identify the cable without opening a box, checking a datasheet or guessing from jacket color alone.
LAN cable printing is often treated as a small detail, but in real projects it affects cable identification, construction acceptance, maintenance and brand trust. When hundreds of boxes or thousands of meters of cable are installed, clear marking becomes part of project control.
Installers can quickly confirm cable category, jacket material and shielding type before pulling or terminating cable.
Inspectors and project owners can check whether the delivered cable matches the bill of materials and technical specification.
Clear marking helps technicians identify cable type, route length and replacement requirements years after installation.

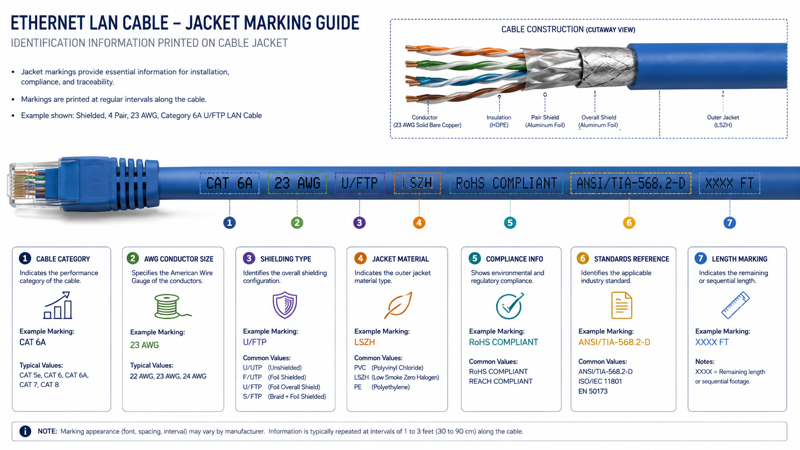

The exact printing content depends on product type, customer requirement and market regulation. However, most professional Ethernet cable jacket markings should include the following information.
| Marking Item | Example | Why It Matters | Buyer Reminder |
|---|---|---|---|
| Brand / Manufacturer | ZION COMMUNICATION / OEM Brand | Supports product identification and brand traceability. | Confirm whether OEM logo or neutral printing is required. |
| Cable Category | CAT5E / CAT6 / CAT6A | Shows the intended transmission performance class. | Do not mix category marking with unverified performance claims. |
| Shielding Type | UTP / FTP / F/UTP / S/FTP | Helps identify shielding structure and grounding requirement. | Confirm exact construction, not only the generic word “STP”. |
| Conductor Size | 23AWG / 24AWG / 26AWG | Affects resistance, PoE performance, flexibility and installation use. | Important for PoE and long horizontal cable runs. |
| Pair Count | 4PR / 4 Pairs | Confirms standard four-pair Ethernet cable structure. | Useful for installers and quality inspection. |
| Jacket Material | PVC / LSZH / PE | Indicates indoor, low-smoke or outdoor jacket application. | Match jacket to building and project safety requirements. |
| Compliance / Rating | ISO/IEC, ANSI/TIA, CPR, UL, ETL, CE, RoHS | Shows the claimed standard or compliance scope. | Only print certifications that are valid for the product. |
| Length Marking | 001M, 002M, 003M or reverse meter marking | Helps measure remaining cable and installation length. | Confirm meter or foot marking based on market and customer preference. |
The printing content should be concise but complete. Below are sample formats that can be adjusted for different cable constructions and OEM requirements.
ZION COMMUNICATION CAT6 UTP 4PR 23AWG SOLID BC PVC ISO/IEC 11801 ANSI/TIA-568.2-D RoHS 001M
ZION COMMUNICATION CAT6A F/UTP 4PR 23AWG SOLID BC LSZH 500MHz ISO/IEC 11801 ANSI/TIA-568.2-D 001M
OEM BRAND CAT6 UTP 4PR 23AWG SOLID BC PE OUTDOOR UV RESISTANT RoHS 001M
Printing examples should be verified against the actual datasheet, test report and certification scope. Do not print performance, flame rating or certification claims that the cable does not support.
Different LAN cable types need different marking priorities. A Cat6A shielded cable, an outdoor PE cable and a patch cord should not use the same printing logic.
| Cable Type | Key Marking Focus | Common Printing Items | Buyer Checkpoint |
|---|---|---|---|
| Cat5e / Cat6 UTP Cable | Category, conductor size and jacket material | CAT6 UTP 4PR 23AWG PVC/LSZH | Confirm indoor rating and conductor material. |
| Cat6A Shielded Cable | Shielding type, frequency and grounding relevance | CAT6A F/UTP or S/FTP 23AWG 500MHz | Confirm shielded components and compatibility. |
| Outdoor LAN Cable | Jacket durability and outdoor use | PE OUTDOOR UV RESISTANT | Confirm UV resistance, water blocking or double jacket if required. |
| Patch Cord Cable | Flexibility, conductor type and category | CAT6 UTP 26AWG STRANDED PVC | Do not mark stranded patch cable as solid horizontal cable. |
| Industrial Ethernet Cable | Rugged jacket, shielding and application environment | CAT6A S/FTP PUR INDUSTRIAL | Confirm oil resistance, drag chain, temperature and shield requirements. |

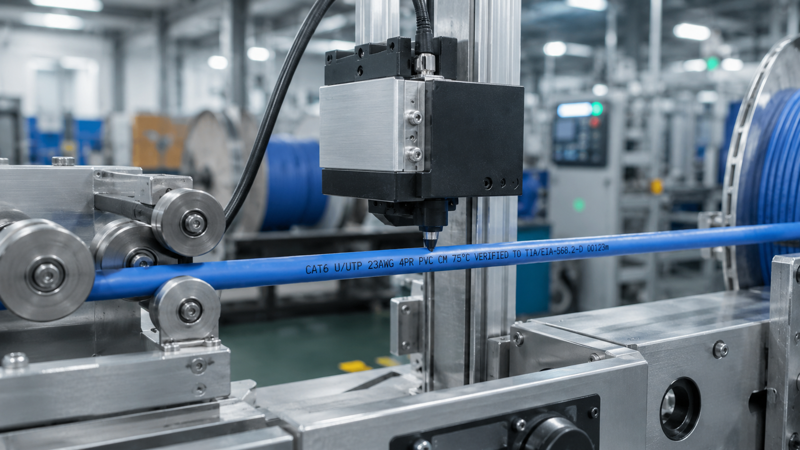

For OEM and wholesale orders, jacket printing is part of product customization. Buyers should confirm the exact print content and visual standard before production, especially when the cable will be sold under a private brand.
| OEM Item | What to Decide | Why It Matters |
|---|---|---|
| Brand Name | ZION brand, customer brand or neutral printing | Affects product identity, resale and project documentation. |
| Print Color | Black, white, gray or customized ink color | Must contrast clearly with jacket color. |
| Print Spacing | Repeat interval along the cable | Shorter spacing improves visibility during installation. |
| Length Marking | Meter marking, foot marking, ascending or descending count | Helps control cable usage and remaining length. |
| Batch Code | Lot number, production date or tracking code | Supports quality traceability and after-sales service. |
| Approval Sample | Pre-production print sample or digital artwork confirmation | Reduces risk of wrong spelling, missing marks or incorrect layout. |
Jacket printing problems may look minor, but they can create acceptance disputes, installation confusion and brand credibility issues.
Marking a cable as Cat6A when the construction and test performance only support Cat6 creates serious project risk.
Using only “STP” may be too vague for buyers who need exact F/UTP, U/FTP or S/FTP construction.
Dark ink on dark jacket or weak printing can make markings difficult to read on site.
Certification logos or standard claims should not be printed unless the cable and production scope are properly supported.
Without meter or foot marking, installers may waste time estimating cable usage and remaining length.
Approve artwork, confirm technical content and check real printed samples before mass production.
Before confirming an Ethernet cable order, buyers should review both technical marking and visual printing quality.
| Checkpoint | Pass Standard | Risk if Ignored |
|---|---|---|
| Cable category is printed correctly | Matches datasheet and test result | Wrong product acceptance or performance claim dispute. |
| Shielding type is clear | UTP, FTP, F/UTP, U/FTP or S/FTP stated accurately | Incorrect connector or grounding selection. |
| Conductor size and type are included | AWG and solid/stranded information confirmed | Wrong use in PoE, patch cord or horizontal cabling. |
| Jacket material is marked | PVC, LSZH, PE, PUR or other material printed | Mismatch with fire safety or environment requirement. |
| Printing is readable | Clear contrast, no broken text, repeat spacing acceptable | Difficult identification on site. |
| OEM artwork is approved | Brand, model, spacing and marking sequence confirmed | Mass production with wrong content or spelling errors. |
Jacket printing should make the cable easy to identify, easy to inspect and easy to trace. For buyers, the safest approach is to define the marking content at the RFQ stage instead of leaving it to production default.
| Project Need | Printing Priority | Recommended Marking | Buyer Action |
|---|---|---|---|
| Standard office cabling | Category and jacket material | CAT6 UTP 4PR 23AWG PVC/LSZH | Confirm datasheet and project fire rating. |
| Cat6A shielded project | Shielding type and frequency | CAT6A F/UTP 23AWG 500MHz | Confirm shielded connector and patch panel compatibility. |
| OEM wholesale order | Brand, model and traceability | OEM brand + part number + batch code | Approve print artwork before production. |
| Outdoor installation | Jacket and environment rating | PE OUTDOOR UV RESISTANT | Confirm outdoor construction and water resistance needs. |
| PoE-heavy network | Conductor size and cable construction | 23AWG SOLID BC 4PR | Avoid unclear AWG or CCA marking for PoE projects. |
A good LAN cable print should answer five questions immediately: What category is it? Is it shielded? What AWG is it? What jacket material is it? Who made it or which batch does it belong to?
Common printing includes brand, cable category, shielding type, conductor size, pair count, jacket material, compliance marks, batch code and length marking.
Meter marking is strongly recommended for bulk LAN cable because it helps installers estimate used length and remaining cable.
Yes. OEM buyers can usually customize brand name, model number, print color, print spacing, length marking and batch code.
Certification marks should only be printed when the product and production scope are properly certified or authorized.
PVC is common for indoor cable, LSZH is used where low smoke and halogen-free performance is required, and PE is common for outdoor jacket applications.
AWG affects conductor resistance, cable diameter, flexibility and PoE performance, so it should be clearly marked for technical selection.
ZION Communication can support Cat5e, Cat6, Cat6A, shielded Ethernet cable, outdoor LAN cable and OEM jacket printing requirements for structured cabling, industrial networks, security systems and wholesale projects.
