Passive Optical LAN for Smart Buildings

Author: Site Editor     Publish Time: 13-08-2026      Origin: Site

Passive Optical LAN for Smart Buildings | ZION

Passive Optical LAN for Smart Buildings: Wi-Fi, CCTV, VoIP and BMS Connectivity

Smart buildings contain thousands of connected endpoints, but not all of them use the same protocol, power method or compliance model. Passive Optical LAN can provide a centralized IP access infrastructure for Wi-Fi, cameras, phones, access-control panels and selected building-system.

Smart buildings contain thousands of connected endpoints, but not all of them use the same protocol, power method or compliance model. Passive Optical LAN can provide a centralized IP access infrastructure for Wi-Fi, cameras, phones, access-control panels and selected building-system gateways. It does not replace every field bus, life-safety cable or control circuit.

The best design separates three layers:

  1. Passive optical distribution from OLT to ONT
  2. Short Ethernet and PoE connections from ONT to IP endpoints
  3. Dedicated control, sensor and life-safety cabling where required

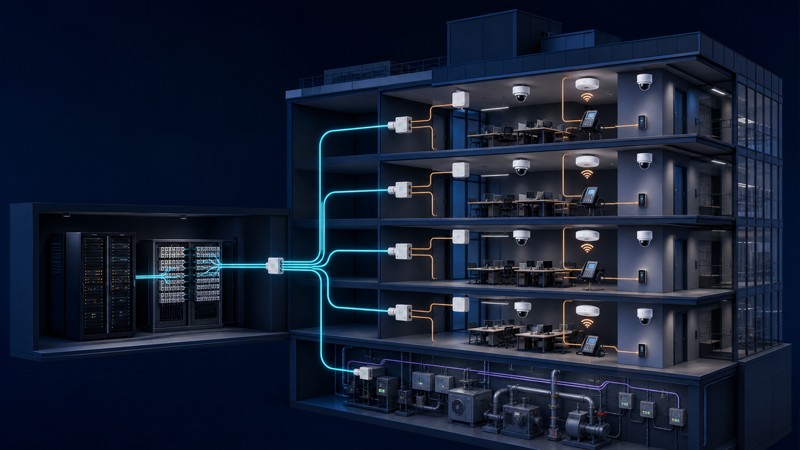

Technical overview of smart-building Passive Optical LAN

1. Identify IP-Ready Services

POL can be considered for:

  • Wi-Fi access points
  • IP cameras
  • VoIP phones
  • Digital signage
  • Access-control controllers with Ethernet uplinks
  • Building-management gateways
  • Lighting-control gateways
  • Parking and visitor systems
  • Tenant and facility-management devices

Confirm the interface of every endpoint. An RS-485 sensor loop or KNX bus does not become Ethernet simply because the building uses POL.

2. Understand the Converged Architecture

A typical path is:

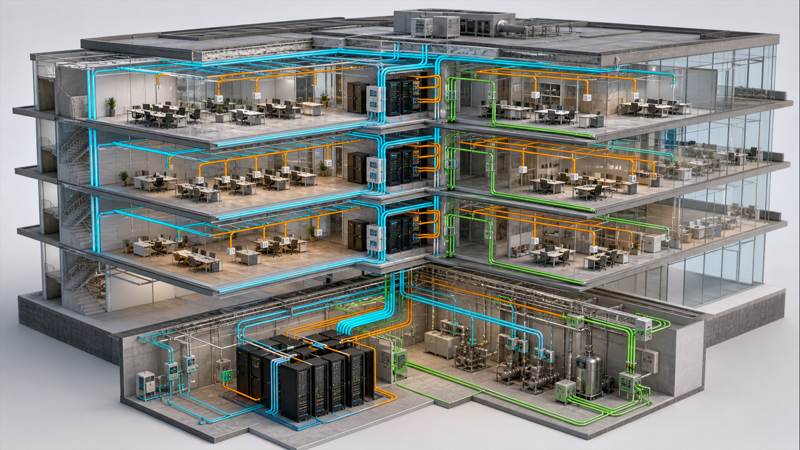

Multi-Layer Cabling for smart-building Passive Optical LAN

Core network → OLT → ODF → feeder fiber → PLC splitter → distribution fiber → ONT → Cat6/Cat6A or native device interface

The APOLAN technical specification describes POL as a converged single-mode fiber infrastructure supporting multiple services, with short UTP or coaxial connections permitted at endpoints.

3. Zone the Building by Function and Risk

Possible zones include:

  • Office floors
  • Public areas
  • Security systems
  • Mechanical floors
  • Parking
  • Retail or tenant areas
  • Rooftop and outdoor devices
  • Critical operations

Do not group endpoints only by physical proximity. Consider cybersecurity zones, maintenance ownership, traffic profile and outage impact.

4. Plan ONT Density

ONT placement options include:

  • One ONT per office or room
  • One ONT per ceiling zone
  • One multiport ONT serving several nearby devices
  • Secure ONT enclosure per floor
  • Hybrid design with an Ethernet switch in very high-density zones

Evaluate:

  • Fiber count
  • Number of copper drops
  • PoE budget
  • Access for maintenance
  • Heat and ventilation
  • Tamper protection
  • Maximum outage group

5. Wi-Fi Connectivity

Wi-Fi access points may require multi-gigabit Ethernet and significant PoE. Confirm:

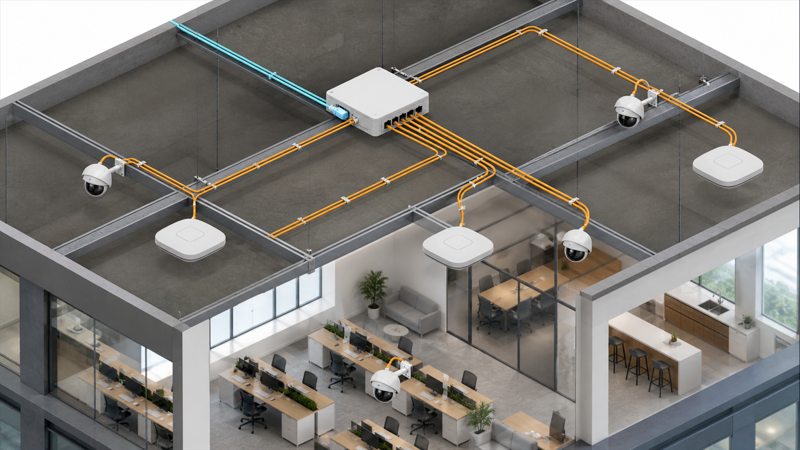

Wi-Fi and Camera Zone for smart-building Passive Optical LAN
  • AP Ethernet interface speed
  • ONT user-port speed
  • PoE class
  • Total ONT power budget
  • Copper patch length and category
  • Central or local ONT power
  • Ceiling access

Nokia's Optical LAN portfolio includes enterprise ONTs designed to power Wi-Fi access points and cameras, illustrating the role of active endpoint selection in a POL design. See the Nokia Optical LAN overview and an example PoE ONT reference.

6. CCTV and Access Control

For cameras and door systems, calculate:

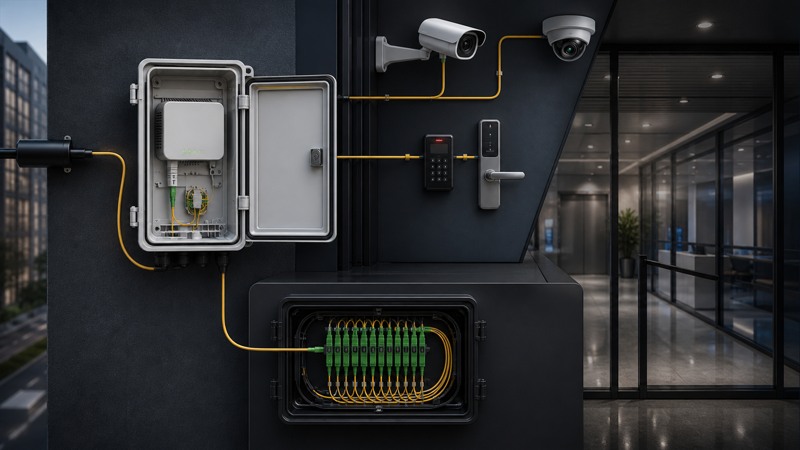

Security Zone for smart-building Passive Optical LAN
  • Port and PoE requirements
  • Video traffic per ONT group
  • Security VLAN or segmentation
  • Backup-power duration
  • Outdoor cable environment
  • Surge and grounding strategy for copper endpoints
  • Local enclosure security

Critical security devices may justify separate ONTs, splitter groups or protected power.

7. BMS and Control-System Interfaces

POL can carry IP traffic between BMS servers and IP gateways. Field-level controls may still use:

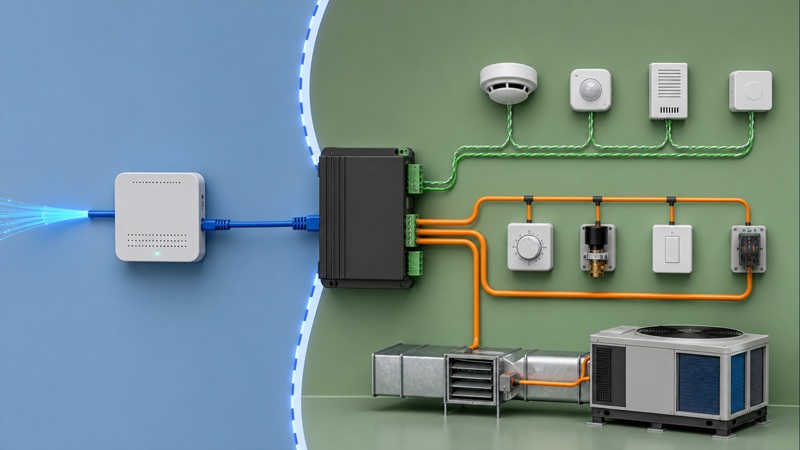

BMS Boundary for smart-building Passive Optical LAN
  • RS-485
  • BACnet MS/TP
  • KNX
  • Modbus RTU
  • Sensor/actuator cable
  • Fire alarm cable
  • Control and power cable

ZION can position these as complementary cabling systems: fiber for the enterprise IP backbone, Cat6/Cat6A for ONT-to-device Ethernet, and dedicated bus or control cable for field networks.

8. Passive BOM

Layer Product family Key inputs
Headend ODF, patch panels, pigtails OLT ports and service zones
Backbone OS2 indoor/indoor-outdoor cable Route, fire rating, spare fibers
Split point PLC splitters and enclosures Fault domain and optical budget
Zone distribution G.657.A1/A2 cable and terminals Density, bends, access
ONT connection Fiber outlet and SC/APC patch cord Length and mounting
Endpoint Ethernet Cat6/Cat6A cable and patch leads Speed, PoE and shielding
Field control RS-485, KNX, control or alarm cable Protocol, impedance, fire rules

9. Power Architecture

The splitter is passive; the ONT and endpoints are not. Define:

  • Local AC outlets
  • Remote low-voltage DC
  • Hybrid fiber-and-power cables
  • UPS support
  • Voltage drop
  • PoE conversion losses
  • Heat inside ceiling or wall enclosures
  • Emergency shutdown and maintenance isolation

Power should be scheduled per ONT zone, not added after the fiber topology is approved.

10. Resilience and Cybersecurity Boundaries

The physical layer supports but does not create cybersecurity. The active design must handle VLANs, authentication, management access, encryption and monitoring.

The passive design contributes through:

  • Separate splitter groups
  • Route diversity
  • Secure enclosures
  • Controlled patching
  • Accurate port mapping
  • Spare fibers
  • Protected power

11. Testing

Test:

  • Optical insertion loss
  • Splitter mapping
  • Connector cleanliness
  • OTDR baselines where required
  • ONT registration
  • Ethernet speed
  • PoE load
  • Copper permanent links
  • Field-bus cabling under its own protocol and cable requirements
  • Failover and backup-power behavior

Do not combine fiber, Ethernet and field-bus acceptance into one generic “network test.”

12. Common Mistakes

  • Treating all smart-building devices as Ethernet endpoints
  • Choosing ONTs before calculating PoE and port demand
  • Hiding ONTs above inaccessible ceilings
  • Sharing security and guest endpoints without risk review
  • Omitting dedicated BMS bus and life-safety cabling
  • Using fiber-futureproofing claims without ODN verification
  • Ignoring backup power
  • Failing to map ONT ports to physical devices

Conclusion

POL can provide a clean IP-access layer for smart buildings when it is coordinated with endpoint PoE, active security policy and dedicated control cabling. Its strength is convergence with boundaries—not forcing every building signal onto one medium.

ZION can support the complete physical package across fiber ODN, copper LAN, BMS bus, control and security cable families while clearly distinguishing their functions.

References

  1. APOLAN — Passive Optical LAN Technical Specification
  2. Nokia — Optical LAN
  3. Nokia — Enterprise PoE ONT Reference
  4. TIA Fiber Optics Tech Consortium — Smart Buildings and Fiber Resources
  5. ZION — Optical Distribution Network Solution
