1. Segment the Campus

Map:

• Core or main data center
• Academic buildings
• Administration
• Residence halls
• Libraries
• Laboratories
• Sports and event facilities
• Security and parking
• Outdoor wireless zones
• Future construction areas

For each building, record endpoint count, distance, service criticality, opening phase and expected growth.

2. Decide Where the OLT Resides

Options include:

• One central OLT location
• Multiple regional OLT locations
• Central chassis with protected feeder routes
• Hybrid design with POL in selected buildings

A single central location simplifies management but can create long routes and large failure domains. Regional locations can reduce reach and provide operational separation but add active sites.

Nokia's Optical LAN overview identifies extended campus reach and reduced intermediate electronics as key use cases. The actual reach must be calculated from the selected optical class, splitter loss and installed route.

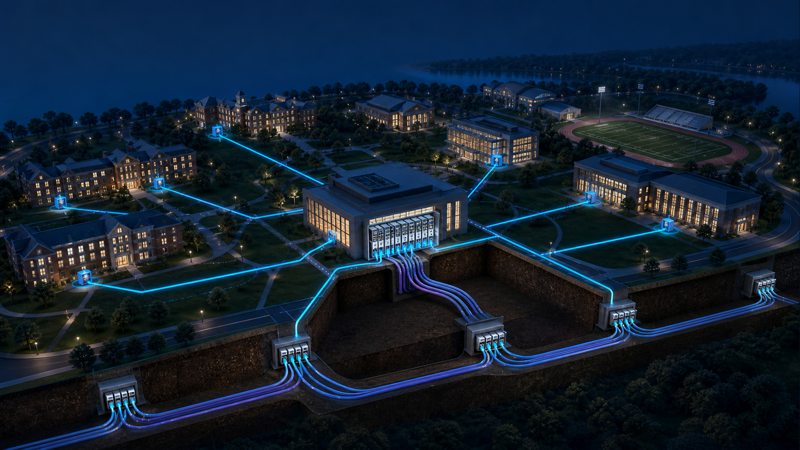

3. Design the Outdoor Feeder Network

Campus routes may use:

• Underground duct cable
• Direct-buried armored cable
• All-dielectric aerial cable
• Existing utility tunnels
• Indoor/outdoor transition cable
• Microduct and microcable

Specify environmental and mechanical requirements separately from fiber category. Consider water ingress, rodents, pulling tension, lightning exposure, grounding, building entry and fire-rated transition lengths.

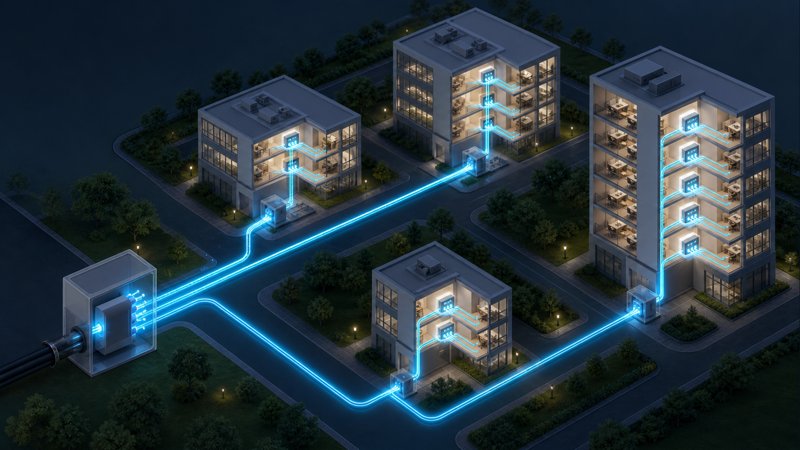

4. Create a Splitter Hierarchy

Possible architectures:

• Central splitter serving all buildings
• First-stage split by building, second stage by floor
• Regional splitter cabinets serving building clusters
• One splitter group per residence-hall wing

Cascaded splitting can align with campus geography but adds loss and documentation complexity. Calculate the highest-loss path for every topology family.

5. Protect Route Diversity

For critical buildings, document:

• Physically separate conduits
• Separate building entrances
• Diverse feeder fibers
• Separate splice closures
• OLT card or chassis diversity
• Shared-risk points
• Spare duct or microduct

Two fibers in the same cable are capacity redundancy, not physical route diversity.

6. Campus POL BOM

ZION's ODN solution covers the feeder-to-distribution component family needed to build a campus passive layer. Campus projects should maintain separate indoor, outdoor and restoration schedules.

7. Plan Fiber Counts and Spares

Fiber counts should account for:

• Active feeder fibers
• Diverse routes
• Future splitter groups
• Point-to-point services that should not traverse PON
• Building growth
• Dark-fiber restoration
• Monitoring or special systems

Do not force every campus service into PON. Dedicated point-to-point fiber may remain appropriate for data-center interconnects, research links, backbone uplinks or systems requiring a different availability model.

8. Coordinate Building Entry

At each building:

• Identify the entrance point
• Provide cable bonding/grounding where metallic components require it
• Transition to the required indoor fire-rated cable
• Provide slack and splice storage
• Protect bend radius
• Label route and building ownership
• Document every splice

Outdoor cable should not extend farther into a building than allowed by the applicable code and project design.

9. Phase Construction

Universities rarely build the entire campus at once. Use:

• Modular ODF capacity
• Splitters installed by occupancy phase
• Reserved fibers and ducts
• Zone-based packing lists
• Building-specific test packages
• Controlled product revisions

Avoid installing maximum splitter ratios in empty buildings solely to match a long-term endpoint forecast.

10. Test and Document

Campus handover should include:

• Route maps and geographic references
• Cable and drum records
• Closure and splice records
• ODF and splitter port maps
• OLTS results
• OTDR baselines for long outdoor routes
• Building-entry photographs
• Receive-level verification
• Spare-fiber test results

BICSI's Outside Plant Design reference highlights PON maintenance, restoration and OSP installation topics, reinforcing the need to treat campus POL as both an enterprise LAN and an outside-plant network.

11. Common Campus Mistakes

• Treating two fibers in one cable as diverse routes
• Ignoring building-entry and fire-transition requirements
• Hiding cascaded splitter stages in separate drawings
• Underestimating closure and slack-storage capacity
• Using one cable construction for indoor and outdoor segments
• Consuming all spare fibers during the first phase
• Forcing point-to-point backbone services through PON
• Failing to retain OTDR baselines for restoration

Conclusion

Campus POL is an ODN planning problem as much as an enterprise switching decision. The system must coordinate outdoor cable routes, building entries, splitter zones, indoor distribution and restoration records.

ZION can provide a matched passive scope from feeder cable and closures to ODFs, splitters, indoor distribution cable and ONT patching, organized by building and deployment phase.
