The role of fiber optic patch cords is paramount in the operations of modern communication media and various data transfer mechanisms. This is especially true, given that global high-speed and high-bandwidth connectivity is a key component of digital infrastructure; these cables are utilized in nearly every industry and application. Aside from that, I have provided the leading and emerging applications of fiber optic patch cords below:

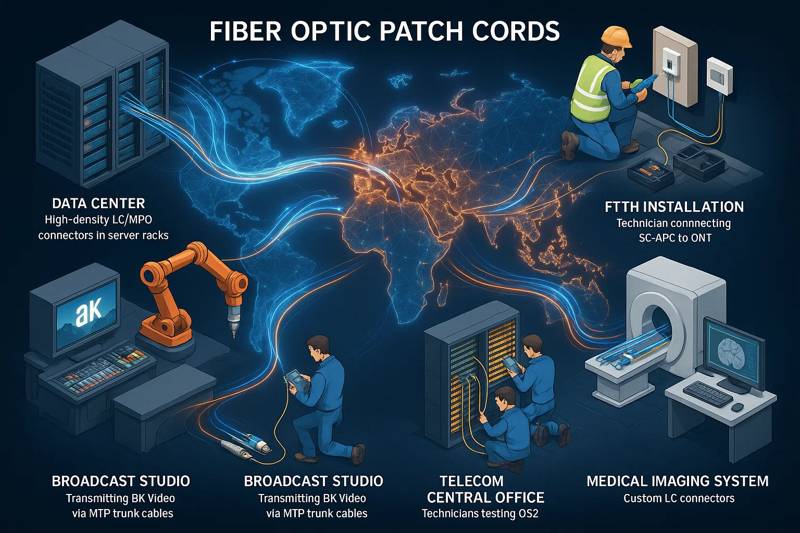

■ Fiber Optic Patch Cord Selection Table by Application Scenario

■ Data Centers

Fiber optic patch cords are necessary to:

• Join servers, switches, storage, and other appliances in hyperscale and enterprise data centers

• High-density cabling of racks and enclosures in this space

• Fast Ethernet links at rates of 10G, 40G, 100G, and 400G

The use of LC-LC and MPO/MTP patch cords with OM4 multimode fibers is frequent in short-distance, high-bandwidth applications. Additionally, the OS2 single-mode patch cords are the best option for long-distance networks between facilities or floors.

■ Telecommunication Networks

In fiber patch cords, both core and access networks interface with:

• ODFs (Optical Distribution Frame)

• DWDM/CWDM multiplexers/demultiplexers

• The transmission devices at the COs or Central Offices

• Final ONU/ONT devices in FTTH builds

They will then minimize attenuation and boost the transmission unity in long-haul and metro networks.

For instance, GPON networks mostly make SC/APC to SC/UPC patch cords to connect splitters and ONTs.

■ FTTH (Fiber to the Home) & FTTx Deployments

The fiber patch cords are commonly used for:

• Connect our Customer premises equipment to the ISP/CPE

• Termination of drop cables into indoor ONT or gateway devices

• Testing, maintenance, and temporary fiber links

They can also be shipped in ready-to-use lengths (either pulled or fixed ends) for quick and easy deployment.

■ Enterprise Networks & Campus Wiring

Commercial office buildings, universities, and hospitals fiber patch cords might be used in:

• Cabling between communication closets for backbone

• Horizontal distribution across offices or floors

• Distributing through patch panels or directly to routers and switches

The use of duplex LC or SC patch cords is everyday in multimode OM3/OM4 networks.

■ Broadcasting & AV (Audio-Visual) Transmission

MTP is becoming more and more commonly used in broadcasting studios, live sports venues, and concerts, because of its:

• High EMI interception

• Streaming capabilities for 4K/8K resolution

• Long-distance distribution with no distortion

Availability of either MTP/MPO or simplex LC connectors depends on the protocol employed.

■ Industrial Automation & Surveillance Systems

Fiber patch cords in some of the industrial sectors, such as EMI, vibration, and hazardous gases, are helpful to achieve:

• The assured secured data transmission protocols

• Further travels than copper

• Support for IP surveillance, smart factory sensors, and SCADA systems

■ Test and Measurement

Patch cords are one of the integral components in optical testing scenarios, which include:

• OTDR testing

• Insertion loss and return loss testing

• Fiber link certification

It is used by test equipment and has very rigid polishing (UPC/APC), and the rate of insertion loss.

Final Thought:

Having your application in mind, therefore, things like connector type, fiber mode, jacket material, bend radius, and length should be well aligned to the needs of the system. Working with a trusted manufacturer ensures that the company adheres to relevant international standards (IEC, TIA, RoHS) and enhances the network's performance.
