When choosing Ethernet cables for communicating high processing power, Cat6a has become a popular standard for modern information technology networks. One of the most critical technical questions professionals ask is:
The maximum throughput of a Cat6a cable is set at 500 MHz.
In this paper, we go into detail on the frequencies used, how they impact network performance, and how Cat6a compares with other cable categories for an actual application in the physical world.
When we talk about the bandwidth in networking, we mean the area of frequencies that the cable can carry, measured in MHz (Megahertz). It can handle how data are received or processed at certain times, which leads to data degradation.
Cat6a (Category 6a) is capable of a bandwidth up to 500 MHz.
What is the solution? This is twice as much as Cat6, which has a bandwidth of 250 MHz.
Broadening the bandwidth opens up the way for Cat6a technology to maintain 10G Ethernet (10GBASE-T) at 100 meters (328 feet) as well, while it can only sustain 10Gbps over shorter distances (if up to 55 meters).
Cable Type | Maximum Bandwidth | Max Data Rate | Max Distance for 10GBASE-T |
Cat5e | 100 MHz | 1 Gbps | 100 m |
Cat6 | 250 MHz | 10 Gbps | 55 m |
500 MHz | 10 Gbps | 100 m | |
Cat7 | 600 MHz – 1000 MHz | 10 Gbps | 100 m |
Cat8 | 2000 MHz | 25/40 Gbps | 30 m |
Bandwidth matters a lot, hence the following deductions:
Greater bandwidth ensures:
Lower Alien Next Cross Talk: The wider frequency range in Cat6a helps to suppress alien crosstalk (AXT) that was evident in the earlier cables.
Elevated Speed Consistency: 10Gbps over longer distances is achievable, as there is no signal loss throughout the transmission due to the cable retaining the signal character.
Improvements in RF Interference Environments: This solution is suitable for data centers, server rooms, and commercial installations where noise can become problematic during times of heavy traffic.

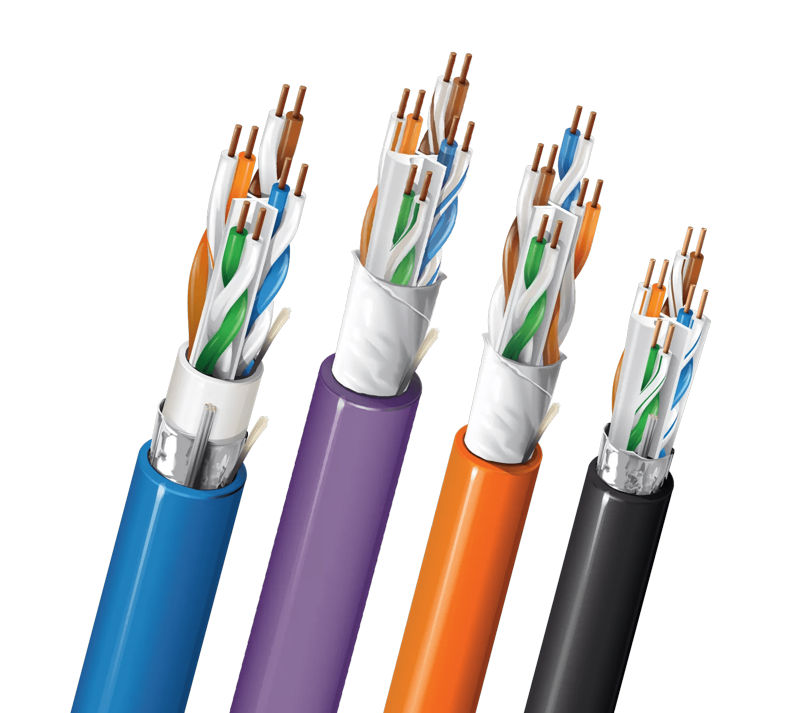

In order to accommodate a high bandwidth level and sustain the specified characteristics on the 500 MHz, Cat6a cables have typically:
More massive wires (AWG 23)
More tightly twisted pair
Shielding (F/UTP or S/FTP) to avoid EMI
Larger diameter, which slightly complicates installation but leads to greater lifetime reliability.
10 Gbps Ethernet capability for all 100-meter link segments
Infrastructure of the enterprise business
Power over Ethernet (PoE, PoE+, PoE++) applications
IP camera and surveillance systems
High-definition video playback
Intelligent building technology
A typical Cat6a Ethernet cable can transmit signals of up to 500 MHz, which makes it compatible with up to 10 Gbps data transfer for lengths up to 100 meters. Also, this factor hints at an advantageous strategy regarding high speed and high performance network environments, meanwhile a reasonable price is set for this product as well.
When you're creating a hub for offices, smart buildings, or data centers, Cat6a presents certain long-term exceptional benefits that will make planning easier.
Q1: Cat6a maximum bandwidth?
A: Cat6a is a cable capable of providing up to 500 MHz with a bandwidth ratio two times that of Cat6 (250 MHz). This wider range brings increased data monitoring capacity and transmission quality over a bigger cable length.
Q2: Does Cat6a support 10 Gbps networks?
A: Yes, Cat6a may carry 10 Gbps data signal under two conditions: first 10GBASE-T interfaces of network devices, which work at the frequency range of 2-100 MHz; and second Ethernet cabling which could be either twisted pair or fiber optic cables.
Q3: What are the differences between Cat6a and Cat6?
A:
Bandwidth: Cat6 support speeds equal to 250 MHz; it is over 500 MHz for Cat6a
Distance: In the case of Cat6, a distance of 55m will support a 10 Gbps Ethernet connection; whereas 100 meters can support Cat6a
Shielding: For extra noise reduction, Cat6a is normally equipped with F/UTP or S/FTP shielding
Cable Size: Cat6a cables are thicker and stiffer because of their high density isolation layer.
Q4: Is Cat6a an appropriate cable type for networks at home?
A: However, when planning to install Cat6a in home networking areas where you will most likely need 2.5 G, 5 G, or 10 GbE, or if you will be installing long-distance cables usually up to 300 feet, it is the right choice since Cat6a will have you. If you only need specific bandwidth of 1 Gbps, the standard cable type, which is Cat5e or Cat6, could be used.
Q5: Is all the process of a Cat6 cable installation more challenging than that of a Cat5 cable type?
A: Certainly, yes! Being thicker than several types of cables and having a coating with additional covering makes Cat6a cables hard to be turned, terminated, and routed in small places. To think through all stages, it is the best decision to leave it up to specialists.
Q6: Will Cat6a be the future go-to for protection against upward connectivity?
A: Certainly! The cable technology which meets the basic requirements such as native 10Gbps support and high noise immunity used as an example of the Cat6a category, helps in avoiding rewiring issues that come later on; hence, making it a smart long-term valuable investment for both homes and businesses.
Q7: What is the difference between bandwidth and frequency?
A: Ethernet cables' frequencies count (MHz) the rate the signals oscillate, whereas the available bandwidth pertains to the transmission of information within that frequency range in a cable. With the 500 MHz frequency, Cat6a is able to carry more data and at higher signal frequencies. In addition, it minimizes the effect of signal degradation as well.
Q8: More bandwidth, however, is not equal to more speed; why?
A: While higher bandwidth will lead to higher potential speed as well, the final speed form the device, ISP's limits, and network equipment also plays a vital role. If your device worked with only 1 Gbps, a Cat6a 10 Gbps-capable cable would add no value to your network.
Q9: Denote bandwidth in relation to speed, distance, and shielding.
A:
Higher bandwidth → permitted higher speeds (ex.: 10 Gbps).
Higher bandwidth → extension with longer stable performance (Cat6a: 100m max).
Higher bandwidth → leads to interference → requires shielding (F/UTP, S/FTP) in order to maintain signal quality.
