PUR Sensor & Actuator cables Shielded

  • PUR Sensor & Actuator cables Shielded

  • hellosignal

  • 7140070

Availability:

Product Description

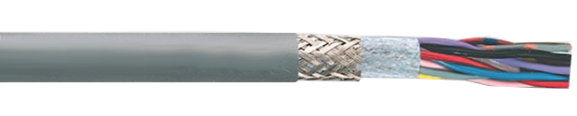

PUR Sensor & Actuator cables Shielded

PUR Sensor & Actuator cables Shielded

Application

According to production requsts,Industrial sensor cable
assist sensor to monitor processing data.It is first priorities
to automatic tests and control,cable used in industrial production,
environment protection,resource exploration.
Very flexible installation(power chains or moving machine parts).

Cable Construction

Conductor:Stranded bare copper wire

Insulation: SR-PVC

Cabling: PET (optional)

Shield:AL/Mylar screen and TC braid

Drain wire:Tinned copper wire

Jacket: PUR

Color: Grey

Product Feature

Oil resistance,Easy flexible bending

Fire resistance meets IEC60332-1

Abrasion resistance,Anti-hydrolysis

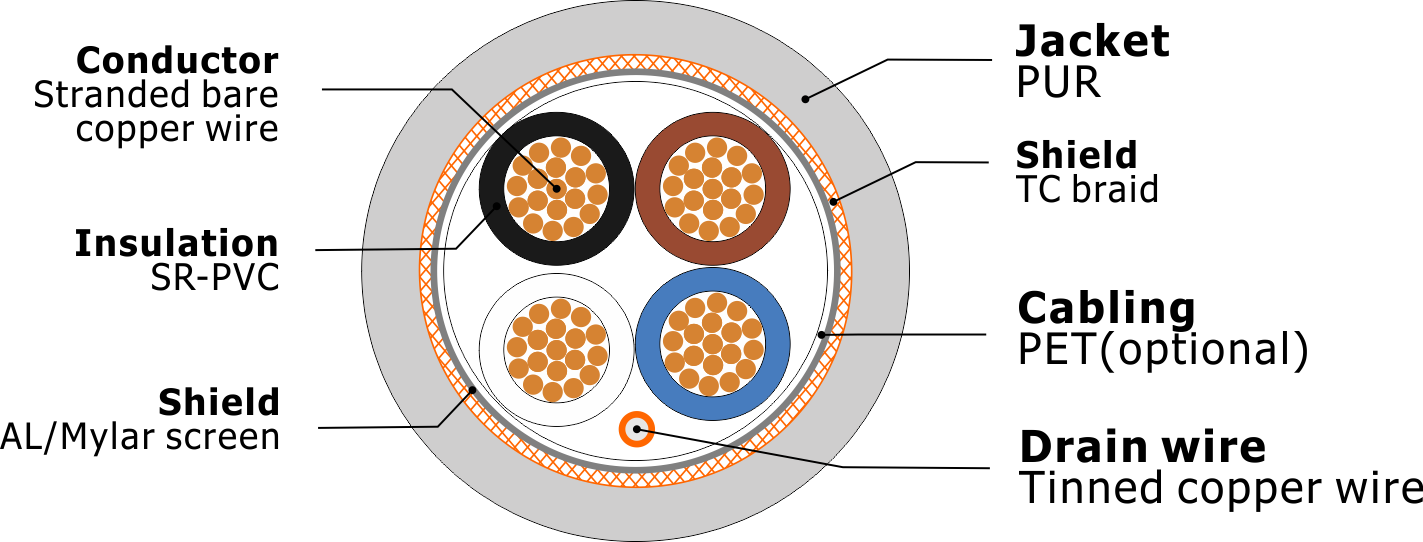

Cross Section

PUR Sensor & Actuator cables Shielded..

Technical data

Temperature range

   .-5 to 70

Rated voltage

   UL/CSA   300V

Bending radius

    15x cable diameter

Test voltage

   1500V 1min,no breakdown

Insulation resistance

    0.25mm²≤80 ohm/km

    0.34mm²≤60 ohm/km

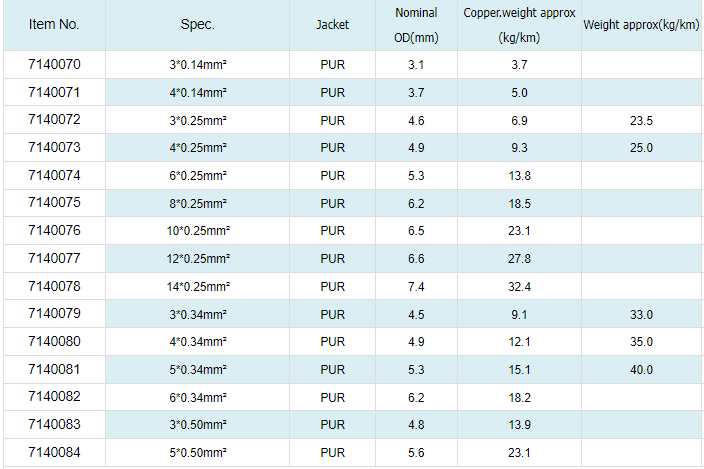

Product List

Item No.

Spec.

Jacket

Nominal
OD(mm)

Copper.weight approx (kg/km)

Weight approx(kg/km)


7140070

3*0.14mm²

PUR

3.1

3.7




7140071

4*0.14mm²

PUR

3.7

5.0




7140072

3*0.25mm²

PUR

4.6

6.9

23.5



7140073

4*0.25mm²

PUR

4.9

9.3

25.0



7140074

6*0.25mm²

PUR

5.3

13.8




7140075

8*0.25mm²

PUR

6.2

18.5




7140076

10*0.25mm²

PUR

6.5

23.1




7140077

12*0.25mm²

PUR

6.6

27.8




7140078

14*0.25mm²

PUR

7.4

32.4




7140079

3*0.34mm²

PUR

4.5

9.1

33.0



7140080

4*0.34mm²

PUR

4.9

12.1

35.0



7140081

5*0.34mm²

PUR

5.3

15.1

40.0



7140082

6*0.34mm²

PUR

6.2

18.2




7140083

3*0.50mm²

PUR

4.8

13.9




7140084

5*0.50mm²

PUR

5.6

23.1




Order Informations

Marking

HELLOSIGNAL PUR Sensor & Actuator cables Shielded XXXFT/M

Package

100M/Reel, 300M/Wooden Spool

Delivery time

Normally 25 days after received the deposit.
