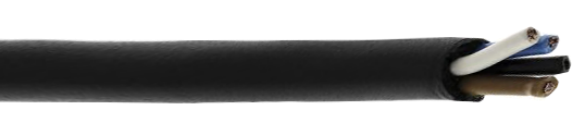

PVC Sensor & Actuator Cable

PVC Sensor & Actuator Cable

Application

According to production requsts,Industrial sensor cable
assist sensor to monitor processing data.It is first priorities
to automatic tests and control,cable used in industrial production,
environment protection,resource exploration.
Cable fixed installation for slightly movement.

Cable Construction

Conductor:  Stranded bare copper wire

Insulation: SR-PVC

Cabling: PET (optional)

Jacket: PVC

Color: Grey or other colors

Product Feature

Oil resistance,Easy flexible bending

Fire resistance meets IEC60332-1 UV resistance


Cross Section

 PVC Sensor & Actuator Cable..

Technical data

Temperature range

 .-40℃ to 80℃

Rated voltage

UL/CSA   300V

Bending radius

10x cable diameter

Test voltage

1500V 1min,no breakdown

Insulation resistance

0.25mm²≤80 ohm/km

0.34mm²≤60 ohm/km


Product List

Item No.

Spec.

Jacket

Nominal
OD(mm)

Copper.weight approx (kg/km)

Weight approx(kg/km)


7140000

3*0.25mm²

PVC

4.4

7

25



7140001

4*0.25mm²

PVC

4.4

9.5

27



7140002

3*0.34mm²

PVC

5.2

10

34



7140003

4*0.34mm²

PVC

5.2

13.5

37



7140004

5*0.34mm²

PVC

5.2

17

42




Order Informations

Marking

HELLOSIGNAL PVC Sensor & Actuator Cable XXXFT/M

Package

100M/Reel, 300M/Wooden Spool

Delivery time

Normally 25 days after received the deposit.
