FP Cable / Air Guider Cable / Hydrometry Cable

▉ Application

Liquid level transmitter dedicated air guide cable, is a gas detection cable, by the air pipe, power cable, signal cable, waterproof decompression layer, shielding layer and outer protective layer, power cable and signal cable Tightly arranged in the airway around the composition of the ring core, in the ring outside the cable core coaxially wrapped with waterproof decompression layer, shielding layer and outer sheath, the main technical features are: signal cable for the three groups, power Cable corresponding to the three groups, the signal cable and power cables are arranged in the same diameter interval.
Liquid level transmitter dedicated air guide cable with a new type of structural design, to achieve a number of underground detection sensors at the same time signal detection and signal transmission function, to underground oil, water, gas measured targets for safe and accurate measurement , Has a good resistance to oil, wear, Naisuan Jian, corrosion resistance, waterproof and shielding performance, its softness and tensile strength, excellent pressure resistance, high reliability.
Liquid level transmitter dedicated air guide cable, outer jacket material is polyethylene, polyurethane, flexible bright body, with waterproof, anti-oil, anti-corrosion, tensile and other effects!

▉ Product Feature

XTZP Polyethylene insulated Dingqing sheathed shielded gas detection cable

XTVP Polyethylene insulated PVC sheathed shielded gas detection cable

XTUP Polyethylene Insulated Polyurethane Elastic Sheath Shielded Gas Transmission Detection Cable

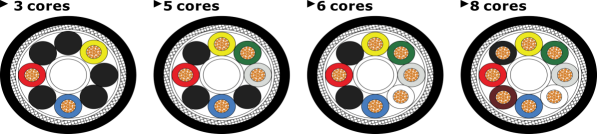

▉ Cross Section

▉ Performance

Max DC Resistance:

0.12mm2 = 163 Ω/KM

0.20mm2 = 90 Ω/KM

Min. Insulation Resistance:

1000MΩ/km

▉ Product List

Item No.

Spec.

Conductor

Nominal
OD(mm)

Copper.weight approx (kg/km)

Weight approx(kg/km)

7140090

4*0.12mm²

7/0.15

1.0/2.2

1.2

7.3

7140091

4*0.20mm²

7/0.20

1.0/2.2

1.4

7.3

7140092

5*0.12mm²

7/0.15

1.0/2.2

1.2

7.3

7140093

5*0.20mm²

7/0.20

1.0/2.2

1.4

7.3

7140094

6*0.12mm²

7/0.15

1.0/2.2

1.2

7.3

7140095

6*0.20mm²

7/0.20

1.0/2.2

1.4

7.3

7140096

8*0.12mm²

7/0.15

1.0/2.2

1.2

7.3

7140097

8*0.20mm²

7/0.20

1.0/2.2

1.4

7.3

▉ Order Informations

Marking

HELLOSIGNAL Hydrometry cable XXXFT/M

Package

100M/Reel, 300M/Wooden Spool

Delivery time

Normally 25 days after received the deposit.
