PUR Sensor & Actuator cables unshielded

  • PUR Sensor & Actuator cables unshielded
  • hellosignal
  • 7140050

PUR Sensor & Actuator cables
unshielded

PVC Sensor & Actuator Cable

Application

According to production requsts,Industrial sensor cable
assist sensor to monitor processing data.It is first priorities
to automatic tests and control,cable used in industrial production,
environment protection,resource exploration.
Very flexible installation(power chains or moving machine parts).

Cable Construction

Conductor:Stranded bare copper wire

Insulation: SR-PVC

Cabling: PET (optional)

Jacket: PUR

Color: Grey

Product Feature

Oil resistance,Easy flexible bending

Fire resistance meets IEC60332-1

Abrasion resistance,Anti-hydrolysis

Cross Section

 PUR Sensor & Actuator cables

Technical data

Temperature range

   .-5 to 70

Rated voltage

   UL/CSA   300V

Bending radius

    15x cable diameter

Test voltage

   1500V 1min,no breakdown

Insulation resistance

    0.25mm²≤80 ohm/km

    0.34mm²≤60 ohm/km

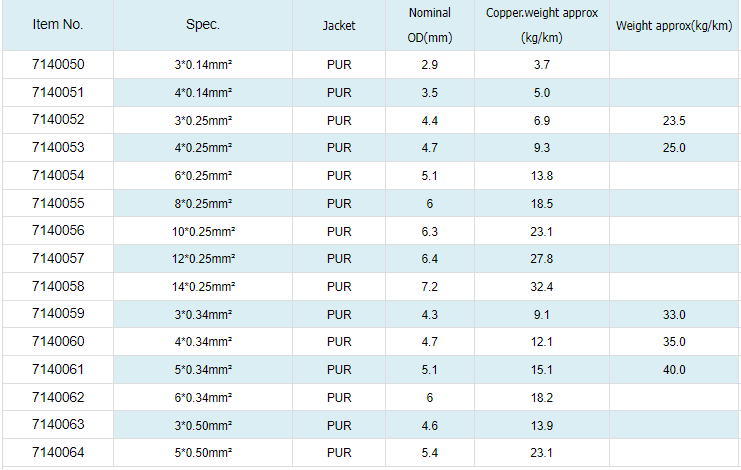

Product List

Item No.

Spec.

Jacket

Nominal
OD(mm)

Copper.weight approx (kg/km)

Weight approx(kg/km)


7140050

3*0.14mm²

PUR

2.9

3.7




7140051

4*0.14mm²

PUR

3.5

5.0




7140052

3*0.25mm²

PUR

4.4

6.9

23.5



7140053

4*0.25mm²

PUR

4.7

9.3

25.0



7140054

6*0.25mm²

PUR

5.1

13.8




7140055

8*0.25mm²

PUR

6

18.5




7140056

10*0.25mm²

PUR

6.3

23.1




7140057

12*0.25mm²

PUR

6.4

27.8




7140058

14*0.25mm²

PUR

7.2

32.4




7140059

3*0.34mm²

PUR

4.3

9.1

33.0



7140060

4*0.34mm²

PUR

4.7

12.1

35.0



7140061

5*0.34mm²

PUR

5.1

15.1

40.0



7140062

6*0.34mm²

PUR

6

18.2




7140063

3*0.50mm²

PUR

4.6

13.9




7140064

5*0.50mm²

PUR

5.4

23.1




Order Informations

Marking

HELLOSIGNAL PUR Sensor & Actuator cables unshielded XXXFT/M

Package

100M/Reel, 300M/Wooden Spool

Delivery time

Normally 25 days after received the deposit.
